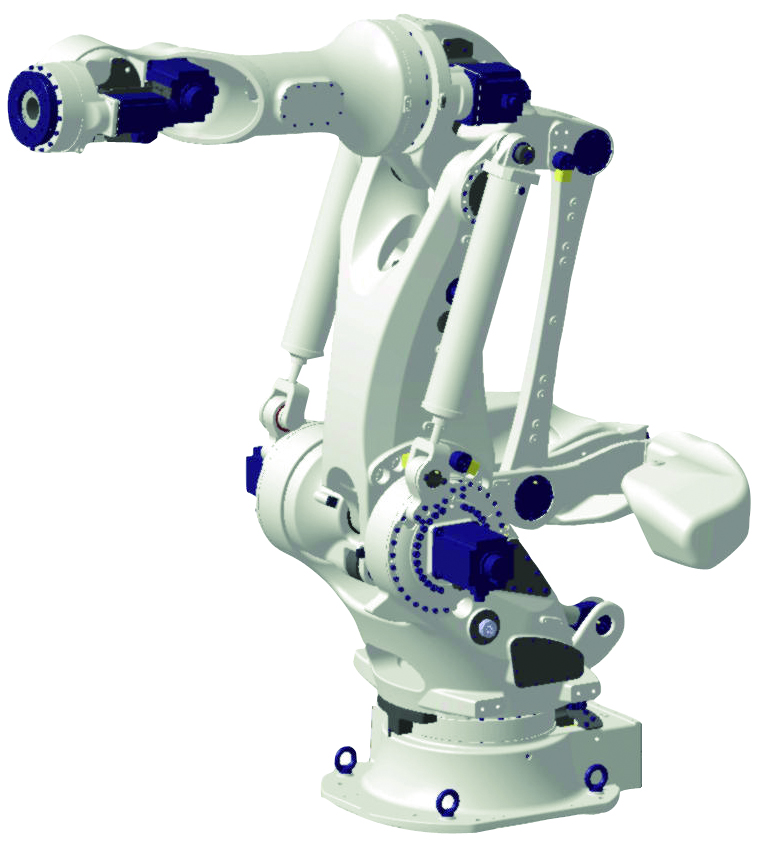

NACHI MC700

NACHI MC700 — A heavy-payload 6-axis industrial articulated robot from NACHI's MC series for heavy material handling, palletizing and machine tending. Supplied and supported by ZTEC.

0.00 € 0.00 €
kr 0.00
(Tax excluded)
  • Robot Type
  • Robot Payload
  • Robot Reach
Contact Us
OFFICIAL NACHI ROBOTICS PARTNERCE · EU compliant

NACHI MC700

Industrial robot

Order code
MC700
Order number
NACHI MC700
Repeatability
±0.3 mm

NACHI MC700 is a heavy-payload 6-axis industrial articulated robot from NACHI's MC series for heavy material handling, palletizing and machine tending, supplied and supported by ZTEC as your NACHI robotics partner in the Nordics and Baltics.

Key features

✓The NACHI MC series is a family of heavy-payload 6-axis industrial articulated robots for heavy material handling, palletizing and machine tending, combining a long reach with high payload and rigidity.

Applications & Industries

What you can solve with this product:

Machine tending
Machine tending — loading and unloading
Material handling and part transfer
Material handling and part transfer
Assembly and screw driving
Assembly and screw driving
Arc and spot welding
Arc and spot welding
Dispensing, gluing and sealing
Dispensing, gluing and sealing
Inspection and quality control
Inspection and quality control

Specifications

Specifications
ConstructionArticulated
Number of axis6
Drive systemAC servo motor
Max. working envelope — Axis 1±3.14 rad （±180°）
Max. working envelope — Axis 2-1.83～ +1.05rad （-105 ～ +60°）
Max. working envelope — Axis 3-2.27～ +0.52rad （-130 ～ +30°）
Max. working envelope — Axis 4±3.67 rad （±210°）
Max. working envelope — Axis 5±2.09 rad （±120°）
Max. working envelope — Axis 6MAX：±6.28 rad （±360°） INITIAL SETTING：±3.67 rad （±210°）*4
Maximum speedAxis 1: 1.40 rad/s (80°/s)
Axis 2: 1.40 rad/s (80°/s)
Axis 3: 1.40 rad/s (80°/s)
Axis 4: 1.74 rad/s (100°/s)
Axis 5: 1.74 rad/s (100°/s)
Axis 6: 2.79 rad/s (160°/s)
Max. pay load700 kg
Max. pay load — Forearm25 kg at maximum
Allowable static load torque — Axis 43450 N･m
Allowable static load torque — Axis 53450 N･m
Allowable static load torque — Axis 61725 N･m
Allowable moment of inertia — Axis 4600 kg･m 2
Allowable moment of inertia — Axis 5600 kg･m 2
Allowable moment of inertia — Axis 6400 kg･m 2
Position repeatability±0.3 mm
InstallationFloor mounting
Ambient conditionsTemperature: 0 to 45 ºC *5 Humidity: 20 to 85%RH (No dew condensation allowed) Vibration to the installation face: Not more than 0.5G (4.9 m/s2)
Robot mass3,050 kg
Technical support
We help with selection, integration and operation
Official NACHI partner
Genuine, CE-marked NACHI robots with full support
Full range & fast quotes
We supply the full NACHI industrial-robot, cobot and palletiser range

Need advice or a quote?

ZTEC is your NACHI partner — we find the right configuration for your application.

Contact us

Specifications

Robot Type Articulated Robots
Robot Payload 700 kg
Robot Reach 2890 mm
