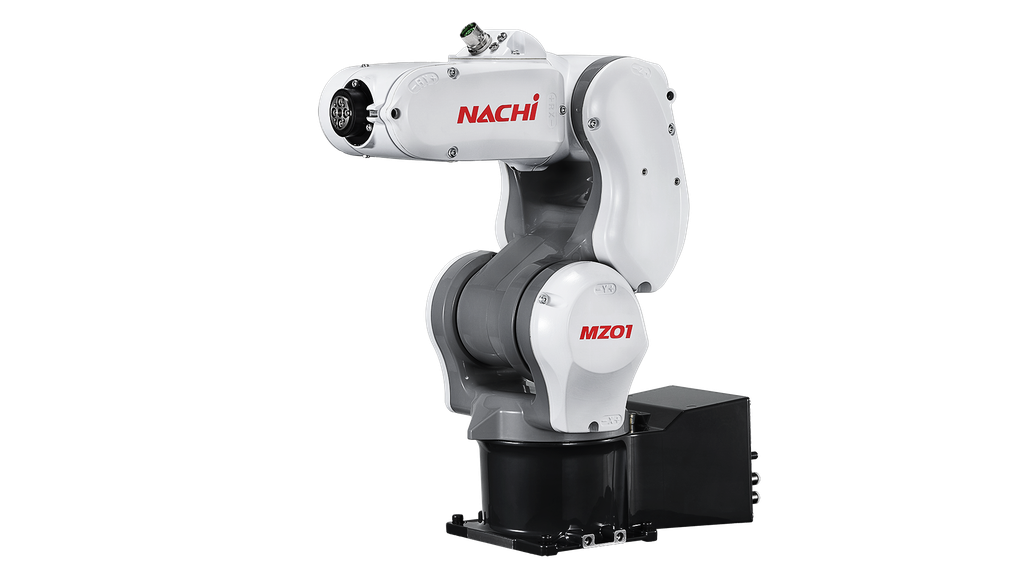

NACHI MZ01
The standard configuration of MZ01 consists of:
Wire Harness (m): 5
TP cable (m): 4
CN10 Cable (m): 5
Application Cable: inc.
Zeroing Jig: -
Build in Valves (pcs): -
I/O Board (32/32): inc.
Brake Release Kit: -
RMU: inc.
Fieldbus * (Profinet Slave): inc.
If your project requires another configuration, contact us and we will find the right match and parts together with you.
| Payload: 1 - 20 kg |
| Reach (robot): 0 - 500 mm |
| IP Protection: IP40 |
| Robot Type: Industrial |
Arm | |
Reach | 350 mm |
Payload | 1 kg |
Weight | 10 kg |
Performance | |
Repeatability | 0.02 mm |
Min. Operating Temperature | 0 °C |
Max. Operating Temperature | 40 °C |
Joint Movement (Range: ° / Max Speed : ° /s) | | |
J1 | -170 till 170 | ±320 |
J2 | -190 till 85 | ±320 |
J3 | -50 till 90 | ±375 |
J4 | -145 till 145 | ±600 |
J5 | -125 till 125 | ±600 |
J6 | -360 till 360 | ±600 |
J70 | - | - |
Other Features | |
IP Classification | IP40 |
Mounting Direction | Floor, Inverted |
Noise Level | 70 dB |
Control Box | |
Dimension | 310 x 250 x 160 mm |
I/O Power Supply | 1 Phase 200-230VAC, 50/60Hz |
IP Classification | IP20 |
Teach Panel | |
Dimension | 163 x 74,5 x 353 mm |
Weight | 0.9 kg |
Cable Length | 4 m |
IP Classification | IP65 |
The NACHI MZ01 was specially developed for the handling and assembly of small workpieces. With its impressive accuracy of 0.02 mm, a reach of 350 mm and a load capacity of 1 kg, it sets standards in terms of precision and speed.
Versatile fields of application
Thanks to its small footprint of just 217 x 135 mm, the MZ01 is extremely compact and space-saving. This means it can also be used perfectly in confined spaces.
The MZ01 is ideal for a wide range of applications, including handling small workpieces, assembly, inspection or sealing with a corresponding dispensing solution. Its flexibility allows you to optimise your production processes and increase efficiency at the same time.
