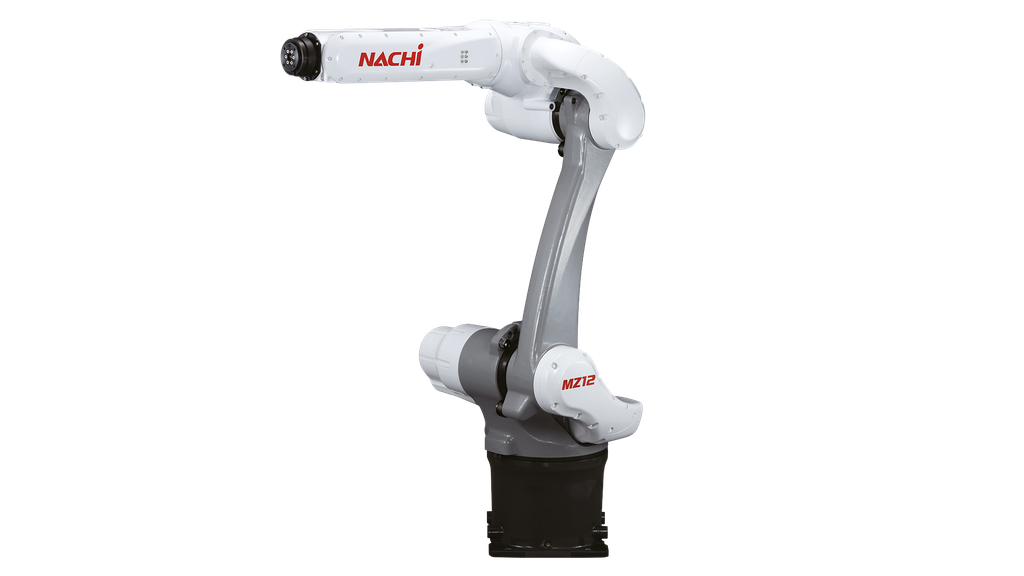

NACHI MZ12

NACHI MZ12 — A compact, high-speed 6-axis industrial articulated robot from NACHI's MZ series, built for fast, precise handling, machine tending, assembly and dispensing in a small footprint. Supplied and supported by ZTEC.

22,441.98 € 22,441.98 €
kr 167,760.52
(Tax excluded)
  • Robot Type
  • Robot Payload
  • Robot Reach
  • IP Protection
Contact Us
Documents
CFDs.pdf MZ12 CAD.zip MZ12.pdf NACHI MZ12 - Brochure.pdf NACHI MZ12 - Datasheet.pdf
OFFICIAL NACHI ROBOTICS PARTNERCE · EU compliant

NACHI MZ12

Industrial robot

Order code
MZ12
Order number
NACHI MZ12
Repeatability
±0.04mm

NACHI MZ12 is a compact, high-speed 6-axis industrial articulated robot from NACHI's MZ series, built for fast, precise handling, machine tending, assembly and dispensing in a small footprint, supplied and supported by ZTEC as your NACHI robotics partner in the Nordics and Baltics.

Key features

✓The NACHI MZ series is a family of compact, high-speed 6-axis industrial articulated robots. With a simple, lightweight structure and a hollow arm/wrist for clean internal cabling, they deliver fast, precise material handling, machine tending, assembly and dispensing in a small footprint.

Applications & Industries

What you can solve with this product:

Machine tending
Machine tending — loading and unloading
Material handling and part transfer
Material handling and part transfer
Assembly and screw driving
Assembly and screw driving
Arc and spot welding
Arc and spot welding
Dispensing, gluing and sealing
Dispensing, gluing and sealing
Inspection and quality control
Inspection and quality control

Specifications

Specifications
ConstructionArticulated
Number of axis6
Drive systemAC servo motor
Maximum rotational range of each axis±2.97rad （±170°）
Max. speed4.54rad/s （260°/s）
Max. pay load12kg
Allowable static load torque25Nm
Allowable moment of inertia2 0.7kgm
Position repeatability±0.04mm
Max. reach1454mm
Air tubesφ6×2、φ8×1
Application signal wires24 wires (including wires for the optional solenoid valves)
InstallationFloor / Tilted / Inverted installation
Ambient conditionsTemperature: 0 to 45 ºC *3 Humidity: 20 to 85%RH (No dew condensation allowed) Vibration to the installation face: Not more than 0.5G (4.9 m/s2)
Dust-proof / Drip-proof performanceRobot body : IP67 equivalent (dust and drain proof-type)
Noise level70 dB
Robot mass150kg

Downloads

Datasheets, drawings and manuals — all in one place.

CFDs.pdfPDF · 910.2 KB
MZ12 CAD.zipZIP · 12.5 MB
MZ12.pdfPDF · 2.0 MB
Technical support
We help with selection, integration and operation
Official NACHI partner
Genuine, CE-marked NACHI robots with full support
Full range & fast quotes
We supply the full NACHI industrial-robot, cobot and palletiser range

Need advice or a quote?

ZTEC is your NACHI partner — we find the right configuration for your application.

Contact us

Specifications

Robot Specifications
Robot Type Articulated Robots
Robot Payload 12 kg
Robot Reach 1454 mm
Others
IP Protection IP67
