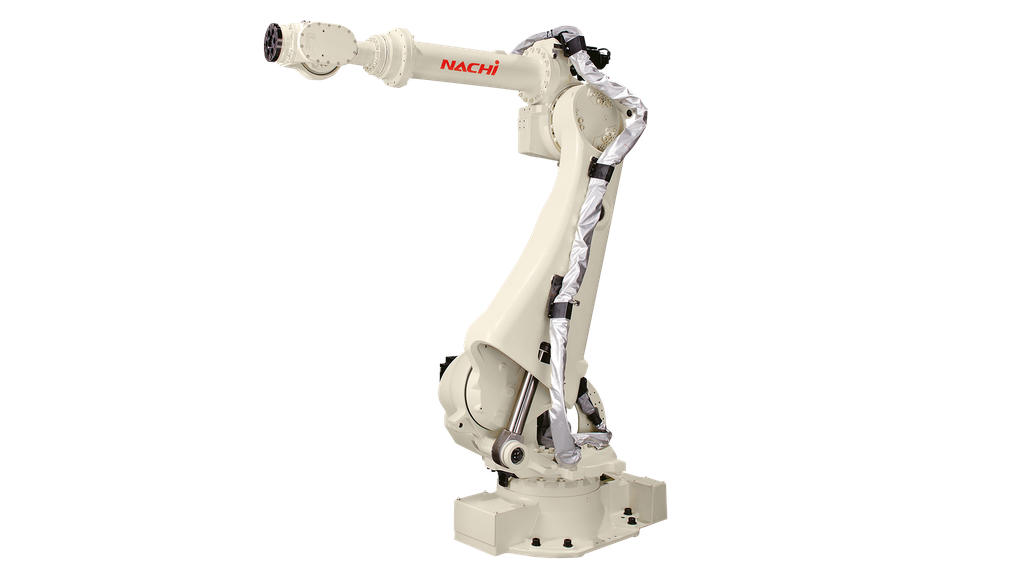

NACHI SRA240

NACHI SRA240 — A 6-axis industrial articulated robot from NACHI's SRA series for medium-to-heavy handling, machine tending and spot welding with a long reach and high rigidity. Supplied and supported by ZTEC.

41,452.61 € 41,452.61 €
kr 309,883.16
(Tax excluded)
  • Robot Type
  • Robot Payload
  • Robot Reach
  • IP Protection
Contact Us
Documents
NACHI SRA240 - Datasheet.pdf SRA240 Brochure EN.pdf
OFFICIAL NACHI ROBOTICS PARTNERCE · EU compliant

NACHI SRA240

Industrial robot

Order code
SRA240
Order number
NACHI SRA240
Repeatability
±0.06 mm
Protection
Wrist ; IP67 equivalent, Body ; IP54 equivalent,

NACHI SRA240 is a 6-axis industrial articulated robot from NACHI's SRA series for medium-to-heavy handling, machine tending and spot welding with a long reach and high rigidity, supplied and supported by ZTEC as your NACHI robotics partner in the Nordics and Baltics.

Key features

✓The NACHI SRA series is a family of medium-to-heavy 6-axis industrial articulated robots optimised for spot welding and material handling. Their high speed, high rigidity and compact body deliver short cycle times across demanding production lines, with long-arm and A-Trac4 cable-managed welding variants.

Applications & Industries

What you can solve with this product:

Machine tending
Machine tending — loading and unloading
Material handling and part transfer
Material handling and part transfer
Assembly and screw driving
Assembly and screw driving
Arc and spot welding
Arc and spot welding
Dispensing, gluing and sealing
Dispensing, gluing and sealing
Inspection and quality control
Inspection and quality control

Specifications

Specifications
StructureArticulated
Degree of Freedom6
Drive systemAC servo motor
Range of motionAxis 1: ±3.14 rad (±180°)
Axis 2: -1.40 ～ +1.05 rad (-80 ～ +60°)
Axis 3: -2.56 ～ +2.62 rad (-146.5 ～ +150°)
Axis 4: ±6.28 rad (±360°)
Axis 5: ±2.36 rad (±135°)
Axis 6: ±6.28 rad (±360°)
Maximum Velocity — Axis 11.83 rad/s （105°/s）
Maximum Velocity — Axis 21.57 rad/s （ 90°/s）
Maximum Velocity — Axis 31.74 rad/s （100°/s）
Maximum Velocity — Axis 42.27 rad/s （130°/s）
Maximum Velocity — Axis 52.18 rad/s （125°/s）
Maximum Velocity — Axis 63.40 rad/s （195°/s）
Maximum payload240 kg
Maximum payload — Forearm20 kg (45 kg at maximum)
Maximum static load torque — Axis 4580 N･m
Maximum static load torque — Axis 5580 N･m
Maximum static load torque — Axis 6290 N･m
Maximum moment of inertia — Axis 460 kg･m2
Maximum moment of inertia — Axis 560 kg･m2
Maximum moment of inertia — Axis 630 kg･m2
Position repeatability±0.06 mm
Mounting ConditionFloor
Ambient conditionsTemperature: 0 to 45 ºC *4 Humidity: 20 to 85%RH (No dew, nor frost allowed) Vibration to the installation face: Not more than 0.5G (4.9 m/s2)
Protection classWrist ; IP67 equivalent, Body ; IP54 equivalent,
Noise79.6 dB
Robot weight960 kg

Downloads

Datasheets, drawings and manuals — all in one place.

SRA240 Brochure EN.pdfPDF · 2.3 MB
Technical support
We help with selection, integration and operation
Official NACHI partner
Genuine, CE-marked NACHI robots with full support
Full range & fast quotes
We supply the full NACHI industrial-robot, cobot and palletiser range

Need advice or a quote?

ZTEC is your NACHI partner — we find the right configuration for your application.

Contact us

Specifications

Robot Specifications
Robot Type Articulated Robots
Robot Payload 240 kg
Robot Reach 2674 mm
Others
IP Protection IP54 (Body) / IP67 (Wrist)
