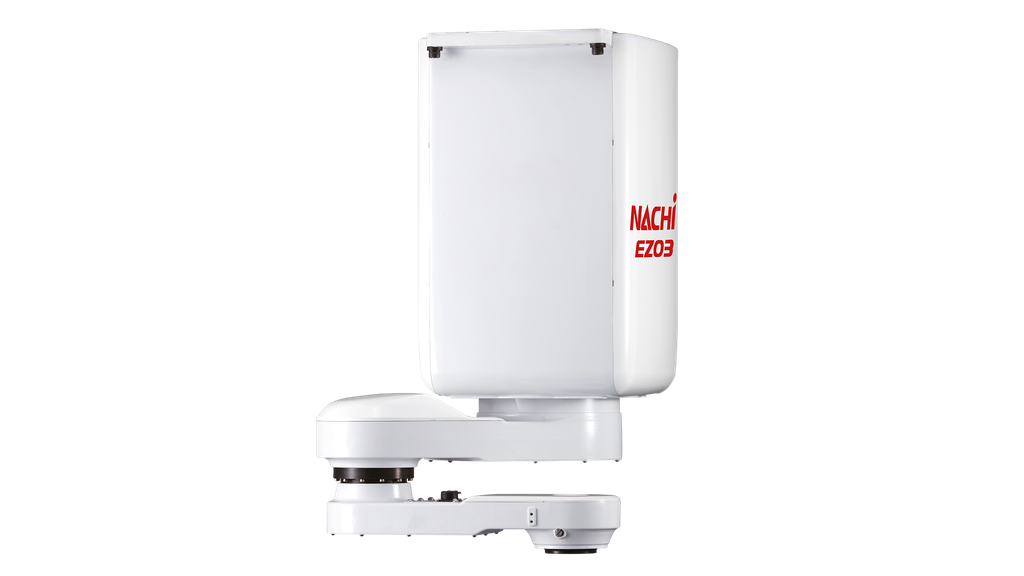

NACHI EZ03V4-02-4525

Industrial robot

Order code
EZ03V4-02-4525
Order number
NACHI EZ03V4-02-4525
Repeatability
±0.014mm

NACHI EZ03V4-02-4525 is a 6-axis industrial articulated robot from NACHI's EZ series optimised for arc welding with a slim arm and through-arm cabling.

Key features

✓The NACHI EZ series is a family of 6-axis industrial articulated robots optimised for arc welding, with a slim arm and through-arm cabling for clean, snag-free torch motion.

Applications & Industries

What you can solve with this product:

Arc welding
Arc welding
Spot welding
Spot welding
Material handling
Material handling
Machine tending
Machine tending — loading and unloading

Specifications

Specifications
ConstructionSCARA (Wing Slicer Type)
Number of axis4
Drive systemAC servo motor
Range of motionAxis 1: 250mm
Axis 2: ±170 °
Axis 3: ±180 °
Axis 4: ±360 °
Maximum speedAxis 1: 1400mm/s
Axis 2: 450 °/s
Axis 3: 720 °/s
Axis 4: 2400 °/s
Max. pay load2 kg (3 kg)
Max. allowable moment of inertia of wrist — Axis 40.05 kg・m 2 ( Rated 0.005 kg・m 2 )
Max. allowable moment of inertia of wrist — Axis 5---
Max. allowable moment of inertia of wrist — Axis 6---
Position repeatability±0.014mm
Max. reach450mm
Air pipingφ6×2
Application signal wires10 wires
InstallationCeiling installation type
Ambient conditionsTemperature: 0 to 45 ºC *3 Humidity: 20 to 85%RH (No dew condensation allowed) Vibration to the installation surface: Not more than 0.5G (4.9 m/s2)
Dust-proof / Drip-proof performanceIP20
Noise level70 dB
Robot mass42kg
Technical support
We help with selection, integration and operation
Official NACHI partner
Genuine, CE-marked NACHI robots with full support
Full range & fast quotes
We supply the full NACHI industrial-robot, cobot and palletiser range

Need advice or a quote?

ZTEC is your NACHI partner — we find the right configuration for your application.

Contact us

Specifications

Robot Type SCARA Robots
Robot Payload 3 kg
Robot Reach 450 mm
