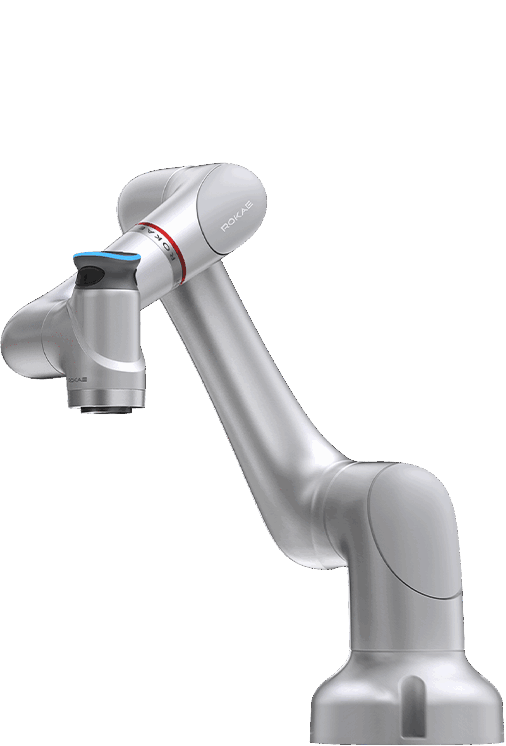

ROKAE xMate CR7
xMate CR7
Payload : 7kg
Reach: 988mm
Weight: 25kg
MTBF >80.000h
| Payload: 1 - 20 kg |
| Reach (robot): 500 - 999 mm |
| IP Protection: IP54 |
| Robot Type: Cobot |
Arm | |
Reach | 988 mm |
Payload | 7 kg |
Weight | 27 kg |
Degrees of freedom | 6 axis |
Performance | |
Repeatability | ± 0.02 mm |
Min. Operating Temperature | 0 °C |
Max. Operating Temperature | 50 °C |
Joint Movement | Range: ° | Max Speed : ° /s |
J1 | ± 360 | ± 180 |
J2 | ± 360 | ± 180 |
J3 | ± 360 | ± 234 |
J4 | ± 360 | ± 240 |
J5 | ± 360 | ± 240 |
J6 | ± 360 | ± 300 |
J7 | - | - |
Other Features | |
IP Classification | IP54 |
Mounting Direction | All directions |
Power Supply | Single-phase 90-264VAC, 47-63Hz / 48VDC |
ISO cleanroom class | ISO class 5 |
Control Box | |
Dimension | 450 x 250 x 350 mm |
General digital I/O | 16 inputs and 16 outputs (standard) |
Safety I/O | 5 safety inputs, 4 safety outputs (all dual-redundant channels) |
Communication | RS232*1; Gigabit Ethernet RJ54*1; USB3.0*2; HDMI*1; EtherCAT*1 |
IP Classification | IP54 |
Teach pendant xPad2 | |
Dimension | 290 x 170 x 80 mm |
Weight | 0.84 kg (excluding cable) |
Cable Length | 5 / 7 / 15 / 22 m |
IP Classification | IP54 |
Rokae CR Series
The new xMate CR series flexible collaborative robots are built on the force-position hybrid control framework and xCore, a new self-developed high-performance control system for industrial robots. Designed for industrial applications, the robots deliver improved motion performance, force control, safety, ease of use, and reliability. This makes it an ideal choice for different applications in various industries, helping enterprises implement flexible production quickly.
Applications
xMate CR Series flexible collaborative robots can undertake a variety of tasks, including
- Compliant assembly
- Screw locking
- Deburring and grinding
- Handling
- Loading and unloading
- Material removal
- Packaging and palletizing
- Welding
Extreme Safety
Suction band-type brakes, independently certified safety controllers, more than 21 TÜV functional safety features, and ultrasensitive collision detection by torque sensors, comprehensively ensure a safer human-machine collaboration.
