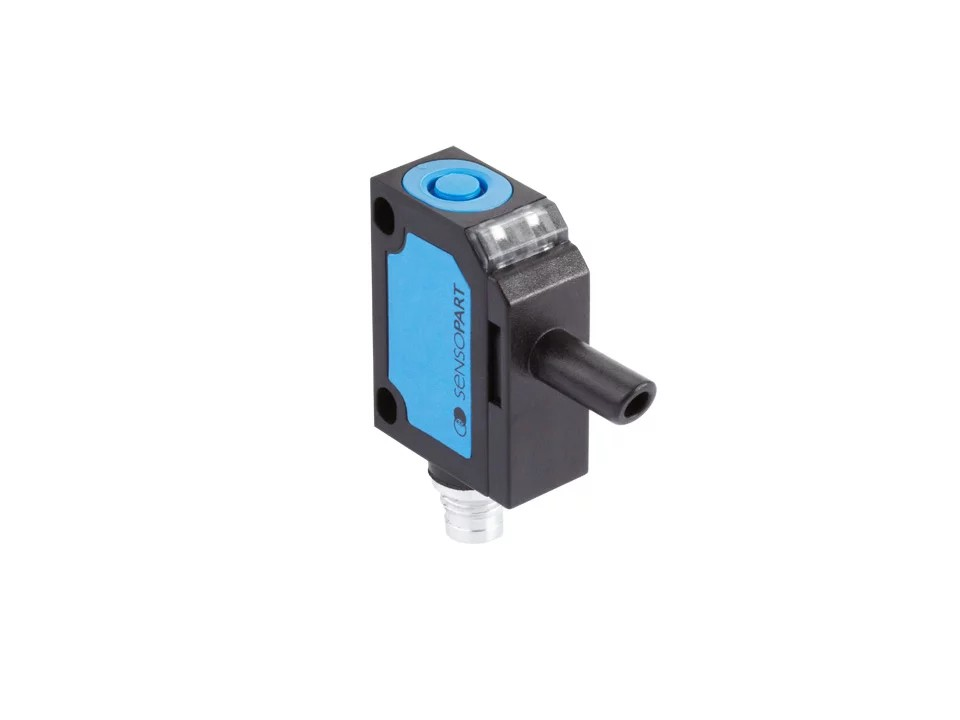

SensoPart UT 20-S150-PSM4

An ultrasonic sensor for distance and presence detection independent of colour or surface

Order code
UT 20-S150-PSM4
Order number
693-11012
SensoPart UT 20-S150-PSM4
Repeatability
± 0.15%
Resolution
0.2
Working distance
20
Connection
Metal plug M8, 4-pin

SensoPart UT 20-S150-PSM4 is an ultrasonic sensor for distance and presence detection independent of colour or surface, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓Ideal for level control, particularly in narrow containers
✓Narrow sound beam for precise detection even through small openings and drilled holes
✓Reliable detection of highly transparent objects
✓Detection independent of object colour and surface
✓Compact miniature housings for use when space in machine is limited

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Specifications
Switching frequency [Hz]25
Response time [ms]24
OutputSwitching (PNP)
Ultrasonic frequency [kHz]380
SeriesUT20 (32 x 21,6 x 12 mm)
Working distance min. [mm]20
Working distance max. [mm]140
Amount of swithing outputs1
Resolution [mm]0.2
Repeatability [mm]± 0.15%
Temperature range [°C]-25 ... +70
Temperature drift [%]≤ 2 %
Connection typeMetal plug M8, 4-pin
Enclosure ratingIP 67
