Area Scan Camera
The Hikrobot Area Scan Camera series collection enables a very broad application range for your specific use. Excellent image sensor and quality, compatible with machine vision standard protocols, and seamlessly connect with third party software. Variety of sizes, even ultra-small for dedicated needs. Mono, color and infrared in great visualization.

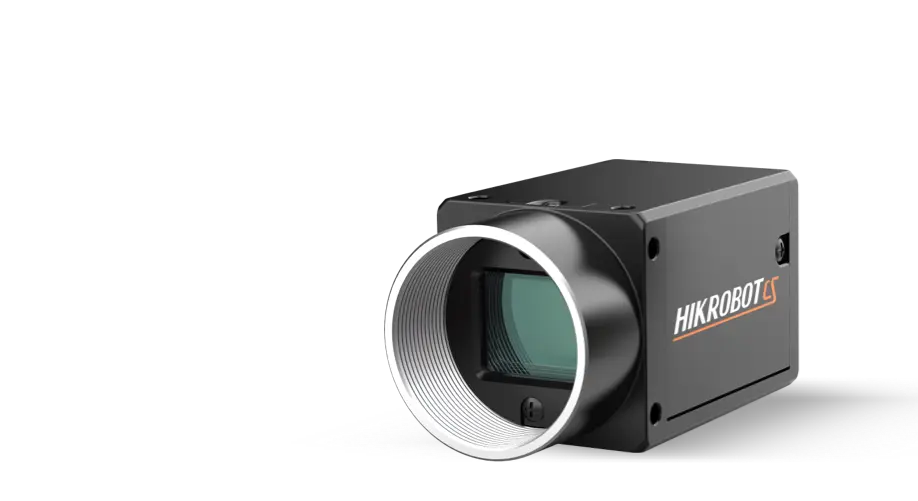

CS Series Area Scan Camera
The new second-generation CS series industrial cameras are equipped with excellent image sensors, high dynamic range, good signal-to-noise ratio, excellent image quality, excellent power consumption design, compatible with machine vision standard protocols and GenlCam standards, and seamlessly connect with third-party software.
720 x 540
Minimum Resolution
5.9 - 526.6
Framerate(s) (fps)
Varies
Mono / Color / Near-infrared
5472 x 3648
Maximum Resolution
GigE or USB3.0
Data Interface
Sensor models: IMX430 / IMX421/ IMX297 / IMX 296 / IMX287 / IMX273 / IMX265 / IMX264 / IMX249 / IMX183 / IMX178 / XGS5000 / BSI.
The newest models
New second-generation CS Series Industrial cameras for broad application.

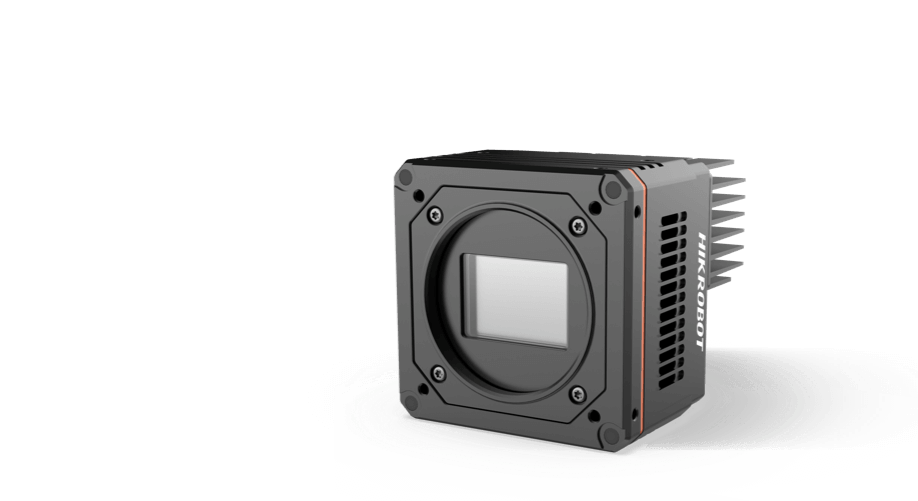

CH Series Area Scan Camera
High-end product series designed for high-precision application and development in Panel, electronic semiconductor, new energy and other industries. which covers data interfaces of GigE, USB 3.0, 10 GigE, Camera Link, CoaXPress.
2048 x 2048
Minimum Resolution
4.6 - 222
Framerate(s) (fps)
Varies
Mono / Color
5120 x 5120
Maximum Resolution
GigE, 10GigE / USB3.0 / Camera Link / CoaXpress
Data Interface
Sensor models: IMX250 / IMX253 / IMX263 / IMX304 / Sony IMX304 / IMX540 / GMAX2505 / BSI / XGS12000 / CMV12000 / HK / Gsprint / Python25K.
The newest models
The High-end CH Series Industrial cameras for high-precision application.

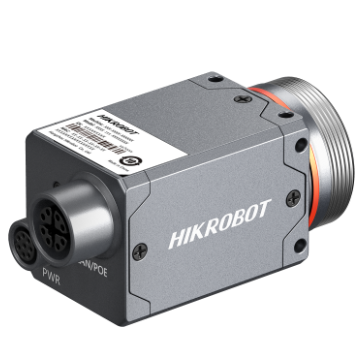

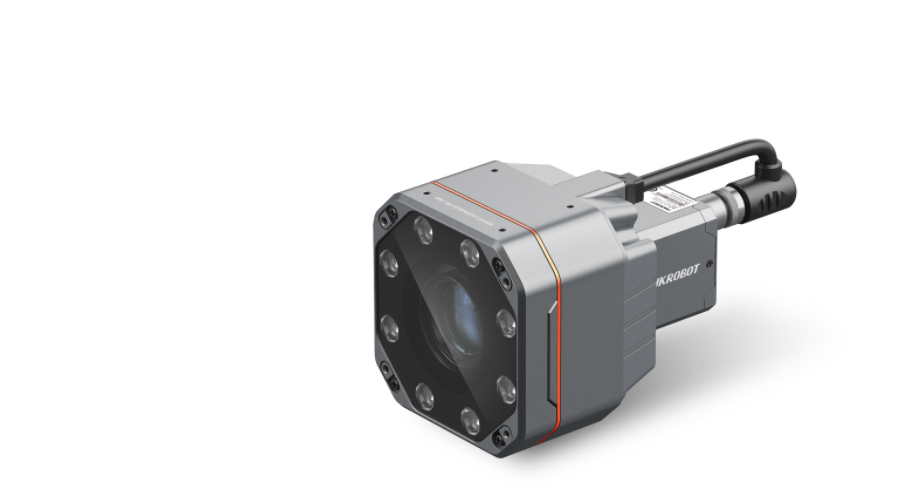

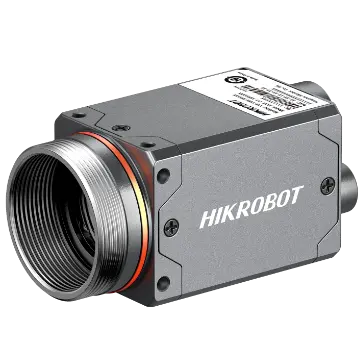

CT Series Area Scan Camera
Engineered for industrial applications with premium performance. BASE/PRO/MAX configurations address varied needs. PRO/MAX models feature IP67 protection, multi-spectral fusion, and precision thermal control for harsh environments. MAX adds expanded interfaces for integrated lens/lighting/housing control, enhancing system flexibility.
2048 x 1536
Minimum Resolution
9.9 - 77,5
Framerate(s) (fps)
Varies
Mono / Color / Near-infrared
4096 x 3000
Maximum Resolution
GigE or USB3.0
Data Interface
CT Series New Generation Industrial Camera
Let us inspire your next water-proof industrial vision application.
Key Features of the CT Series
Supports an incredible array of ISP algorithms such as binning, decimation, color correction and much more.
Suitable for Hard Environments
The CT Series achieves IP67 protection level by combining different cables and protective covers, making it dust-tight and waterproof.
Supports waterproof connector
The CT Series PRO version supports water connector.
Precise temperature control design
The device with PRO version adopts precision temperature control design for fast heat equilibrium.
Incredible transmission distance
Adopts GigE interface and max. transmission distance of 100 meters without relay.
Multi Spectral Fusion
The color device with PRO version supports auto color correction based on multi-spectral fusion technology. This Combines the spectral information into a single image representation.
New-generation structure design
Adopts new-generation structure design, supporting installation on four sides.
Meet the MV-CT089G-13GC01-PRO Model
8.9MP Area Scan Camera, 3rd Gen., GigE, Color, PRO
Built for performance | CT Series
Discover the advanced capabilities of the MV-CT089G-13GC01-PRO model, engineered to meet the highest demands in industrial machine vision. Download the Datasheet below.
CI Series Infrared Camera
It adopts high-sensitivity Vanadium Oxide uncooled detector with a response band of 8-14μm, can visualize temperature information and measure the temperature characteristics of objects. Can meet the new application needs in New Energy, Auto Parts, Electronic Semiconductors and other industries.
640 x 512
Minimum Resolution
50 - 91
Framerate(s) (fps)
1280 x 1024
Maximum Resolution
GigE
Data Interface
The newest models
The high-sensitivity CI Series Industrial cameras for measure of object temperature characteristics.
CB Series Industrial Area Scan Camera
The CB series board-level products is designed with a single board or multi-board stacked, which supports GigE or U3V protocol. It is applicable to the industrial, embedded, 3D, medical and other scenarios with more stringent space requirements.
720 x 540
Minimum Resolution
19.1 - 201
Framerate(s) (fps)
Varies
Mono / Color
4032 x 3036
Maximum Resolution
GigE or USB3.0
Data Interface
Sensor models: None / IMX297 / IMX296 / IMX273 / IMX264 / IMX226 / IMX178.
The newest models
The CB Series board-level products for tight space requirements. Embedded directly into the application.
AI Your Vision with Hikrobot
Bring intelligence into your production, project or warehouse with the Hikrobot Industrial Cameras. Utilize a wealth of algorithms and intuitive software from Hikrobot to solve your production needs.
Udvalgte produkter
Let's discuss your project
Helping you achieve the best possible automation is our goal.
Let us recommend the perfect vision for your needs.
