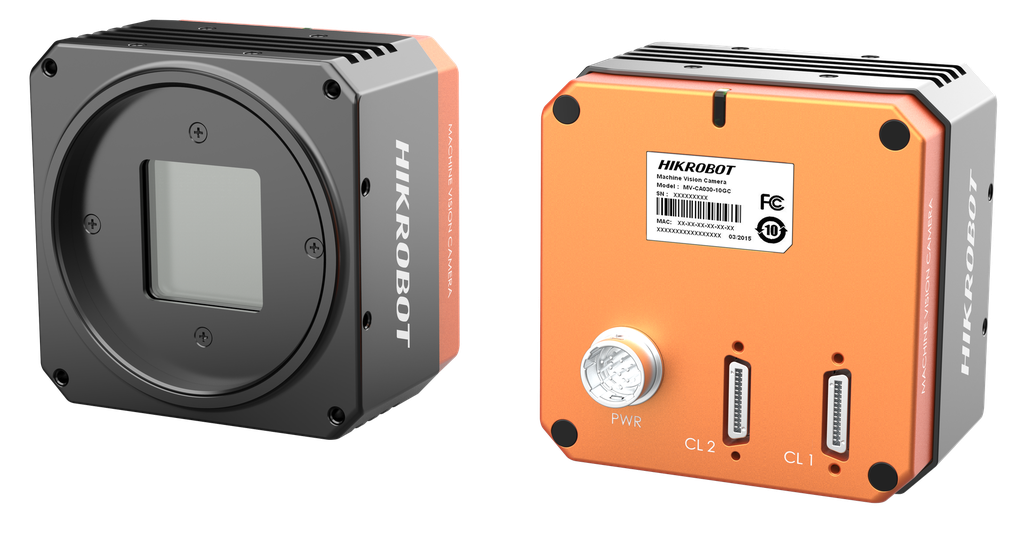

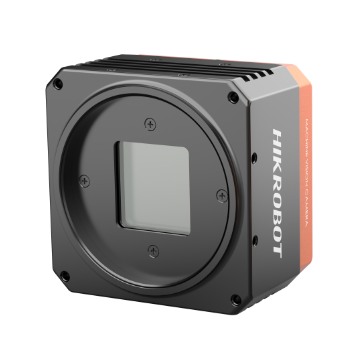

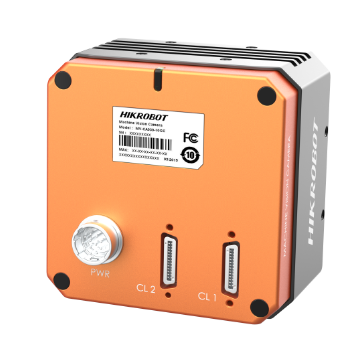

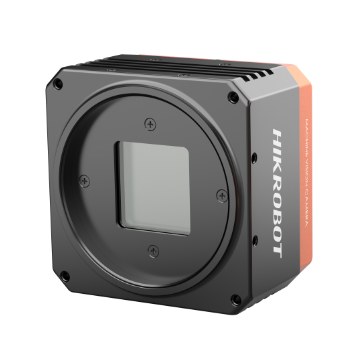

Hikrobot MV-CH250-20CM-M58S-NN

CH Area Scan Camera

Order code
MV-CH250-20CM-M58S-NN
Order number
306300943
Resolution
5120 × 5120
Frame rate
31.3 fps @ 5120 × 5120
Interface
Camera Link with SDR interface
Pixel size
4.5 μm × 4.5 μm

Hikrobot MV-CH250-20CM-M58S-NN is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Resolution of 5120 × 5120 and pixel size of 4.5 μm × 4.5 μm.
✓Adopts global shutter CMOS sensor providing wide dynamic range and high-quality image.
✓Supports configuration modes of Full and 80-bit via the Camera Link interface.
✓Adopts compact design with mounting holes for flexible mounting.

Applications & Industries

What you can solve with this product:

Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Camera
Sensor typeCMOS, global shutter
Sensor modelOnSemi PYTHON25K
Pixel size4.5 μm × 4.5 μm
Sensor size23 mm × 23 mm
Resolution5120 × 5120
Configuration modeFull, 80-bit
Tap geometry8X_1Y, 10X_1Y
Tap number8 Taps, 10 Taps
Max. frame rate31.3 fps @ 5120 × 5120
Pixel clock60 MHz, 70 MHz, 85 MHz
Dynamic range59 dB
SNR41 dB
Gain0 dB to 32 dB
Exposure time45 μs to 10 sec
MonoMono
Pixel formatMono 8
Exposure modeOff/Once/Continuous exposure mode
BinningNot support
DecimationNot support
Reverse imageSupports horizontal and vertical reverse image output
Electrical feature
Data interfaceCamera Link with SDR interface
Digital I/O12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2), RS-232 × 1; Camera Link connector provides I/O (CC1/CC2/CC3/CC4).
Power supply9 VDC to 24 VDC
Power consumptionTyp. 9.4 W @ 24 VDC
Mechanical
Dimension70 mm × 70 mm × 44.3 mm (2.8" × 2.8" × 1.7")
WeightApprox. 380 g (0.8 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or frame grabber software meeting with GenlCam Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11
CompatibilityCamera Link V2.0, GenlCam
CertificationCE, RoHS, KC
Additional specifications
Lens mountM58*0.75, flange back length 11.48 mm
