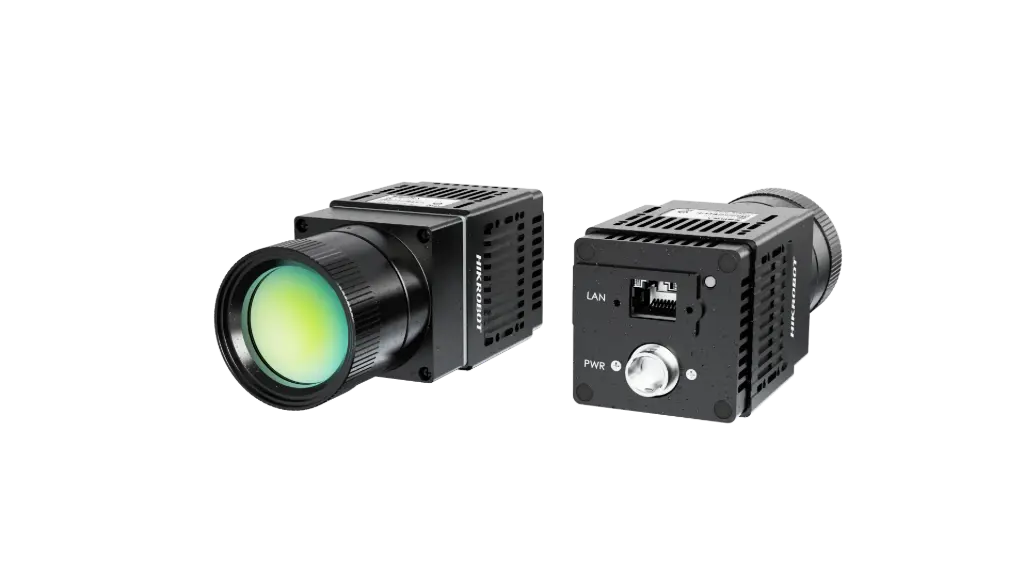

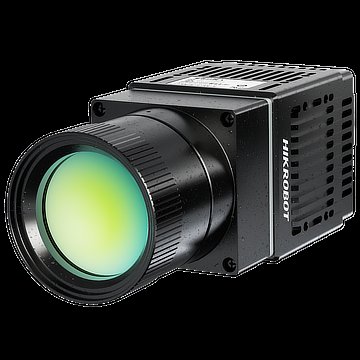

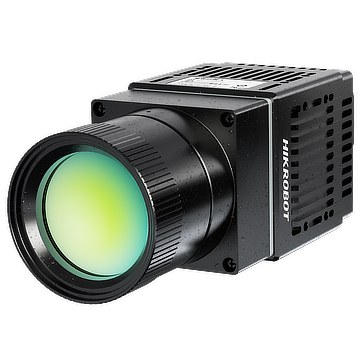

Hikrobot MV-CI003-GL-T6

Hikrobot MV-CI003-GL-T6 — An industrial machine-vision camera for inspection, measurement and positioning in automated production. Genuine product, supplied by ZTEC.

0.00 € 0.00 €
kr 0.00
(Tax excluded)
Contact Us
Documents
MV-CI003-GL-T6 - Datasheet.pdf MV-CI003-GL-T6 - Drawing.pdf MV-CI003-GL-T6 - User Manual.pdf MV-CI003-GL-Tx Industrial Long Wave Infrared Camera_datasheet_20250918_7567.pdf MV-CI003-GL-Tx_7567.zip UD27341B_Industrial Long Wave Infrared Camera User Manual_V1.1.0.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CI003-GL-T6

CI Series Infrared Camera

Order code
MV-CI003-GL-T6
Order number
306302441
Accuracy
± 2 °C (35.6 °F) or ± 2% of the readings
Resolution
640 × 512
Frame rate
50 fps @ 640 × 512
Field of view
88.5° × 73.2°

Hikrobot MV-CI003-GL-T6 is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts high-sensitivity vanadium oxide uncooled detector with 0.3 MP.
✓Supports temperature measurement rules of point, polygon, line and circle.
✓Supports single-region and multi-region temperature measurement alarm settings.
✓Compact design with mounting holes on panels for flexible mounting from 4 sides.
✓Adopts GigE interface and max. transmission distance of 100 meters without relay.
✓Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: Consumer electronicsBatteryPackaging
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeVanadium oxide uncooled detector
Pixel size17 μm
Resolution640 × 512
Max. frame rate50 fps @ 640 × 512
NETD< 50 mk (F1.0, 30 °C)
Pixel formatMono 16, Float 32, YUV422(YUYV)Packed, YUV 422 Packed
Color palettesWhite Hot, Black Hot, Fusion 1, Rainbow, Fusion 2, Ironbow 1, Ironbow 2, Sepia, Color 1, Color 2, Ice Fire, Rain, Green Hot, Red Hot
Image processSupports brightness, contrast, Gamma correction
Focal length6.3 mm
Field of view88.5° × 73.2°
Space resolution2.70
Aperture1.0
Thermal object distance0.6 m
Temperature measurement range–20 °C to 150 °C or 0 °C to 550 °C (–4 °F to 302 °F or 32 °F to 1022 °F)
Temperature measurement accuracy± 2 °C (35.6 °F) or ± 2% of the readings
Max. temperature measurement distance5 m (@ target size 01 × 0.1 m2)
Electrical feature
Data interfaceGigabit Ethernet, compatible with Fast Ethernet

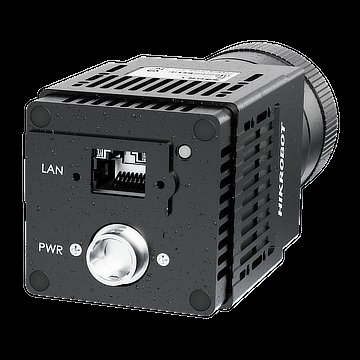

Digital I/O12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC
Power consumptionTyp. 2.8 W @ 12 VDC
Mechanical
Installation methodSupports installation from 4 sides
Dimension48 mm × 48 mm × 117.9 mm (1.9" × 1.9" × 4.6")
WeightApprox. 370 g (0.8 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –20 °C to 60 °C (–4 °F to 140 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 80% RH (no condensation)
General
Client softwareMVS
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux.
CompatibilityGigE Vision V2.0, GenICam
CertificationCE, RoHS, KC
