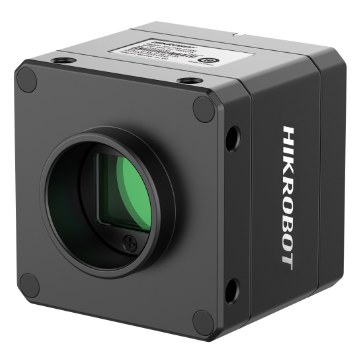

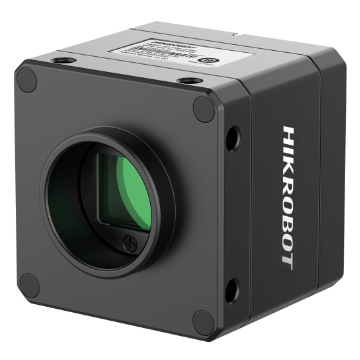

Hikrobot MV-CH120-90Y2M-C-NN

Hikrobot MV-CH120-90Y2M-C-NN — MV-CH120-90Y2M/C camera adopts Gpixel GMAX3412  Mono camera: MV-CH120-90Y2M-C-NN sensor to provide high quality image. It uses 2-link CXP-  Color camera: MV-CH120-90Y2C-C-NN 12 interface to transmit non-compressed images in real Applicable. Genuine product, supplied by ZTEC.

0.00 € 0.00 €
kr 0.00
(Tax excluded)
Contact Us
Documents
MV-CH120-90Y2M-C-NN - CAD (RAR).rar MV-CH120-90Y2M-C-NN - Datasheet.pdf MV-CH120-90Y2M-C-NN - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CH120-90Y2M-C-NN

CH Area Scan Camera

Order code
MV-CH120-90Y2M-C-NN
Order number
306302741
Resolution
4096 × 3008
Frame rate
149 fps @ 4096 × 3008 Mono 8
Interface
CoaXPress with Micro-BNC interfaces
Pixel size
3.4 μm × 3.4 μm

Hikrobot MV-CH120-90Y2M-C-NN is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Resolution of 4096 × 3008, pixel size of 3.4 µm × 3.4 µm.
✓Adopts global shutter CMOS sensor to provide high dynamic range, SNR, and high-quality image.
✓Adopts CXP-12 interface to transmit data.
✓Supports Off, Once, and Continuous exposure modes.
✓Compatible with CoaXPress Protocol, GenlCam Standard, and third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: Semiconductor
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS, global shutter
Sensor modelGpixel GMAX3412
Pixel size3.4 μm × 3.4 μm
Sensor size1.1"
Resolution4096 × 3008
Max. frame rate149 fps @ 4096 × 3008 Mono 8
Dynamic range59.8 dB
SNR38.9 dB
Gain0 dB to 6.1 dB
Exposure time6 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorMono
Pixel formatMono 8/10/12
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
DecimationSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical feature

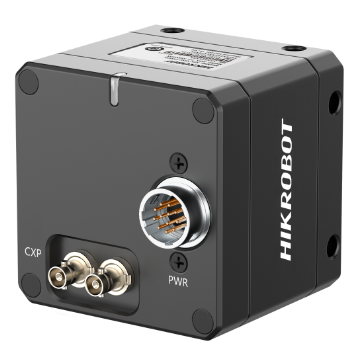

Data interfaceCoaXPress with Micro-BNC interfaces
Digital I/O12-pin P10 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1(Line 1), bi-directional non-isolated I/O × 1 (Line 2), and RS-232 × 1.
Power supply9 VDC to 24 VDC, CXP-0 supports PoCXP
Power consumptionTyp. 6.1 W @ 12 VDC
Mechanical
Dimension50 mm × 50 mm × 45 mm (2.0" × 2.0" × 1.8")
WeightApprox. 207 g (0.5 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or frame grabber software meeting with CoaXPress Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
CompatibilityCoaXPress, GenlCam
CertificationCE, RoHS, KC
Additional specifications
Lens mountC-mount
