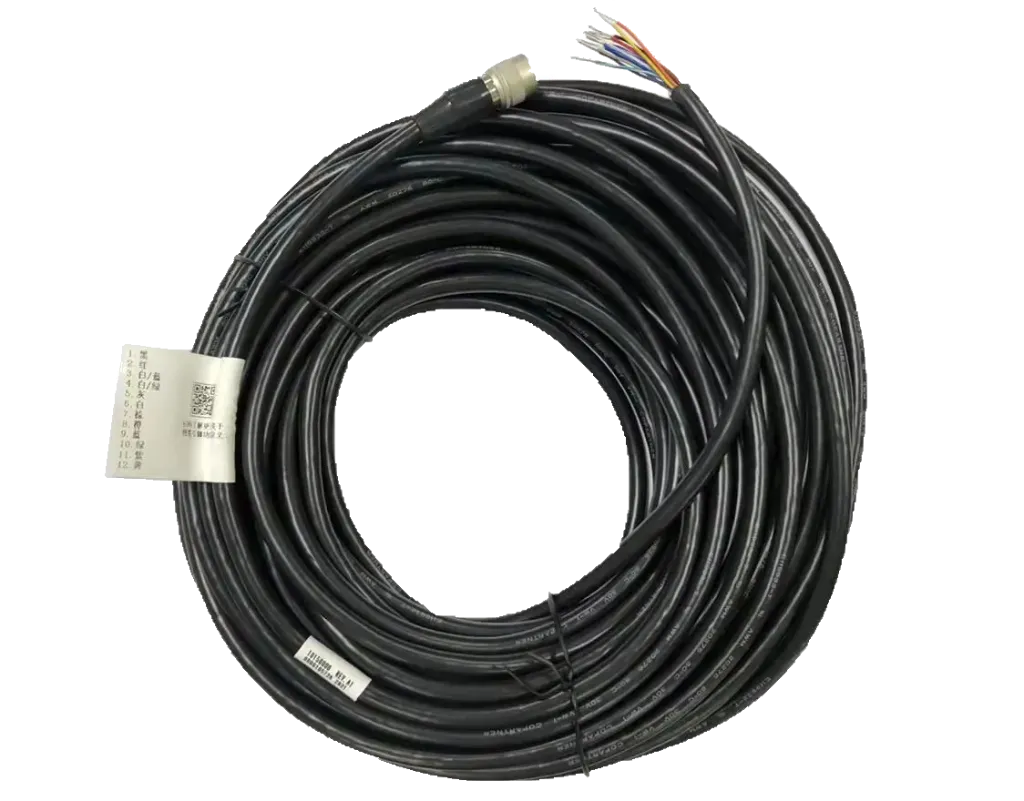

Hikrobot MV-ACP-H12p-open-ST-20m

Hikrobot MV-ACP-H12p-open-ST-20m

Hikrobot MV-ACP-H12p-open-ST-20m — Genuine Hikrobot Cables — cable for machine-vision cameras, lighting and peripherals. Genuine product, supplied by ZTEC.

477.03 € 477.03 €
kr 3,566.08
(Tax excluded)
Contact Us
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-ACP-H12p-open-ST-20m

Cable

Order code
MV-ACP-H12p-open-ST-20m
Order number
310101101

Genuine Hikrobot Cables — cable for machine-vision cameras, lighting and peripherals.

Key features

✓The 12-pin P10 Standard Power&I/O Cable can be used to power the camera, I/O signal wiring, and is available in a variety of lengths.

Specifications

Additional specifications
End A connectorP10 12-pin,Female
End B connectorOpen
Cable diameter7.0 mm
Length20 m
Cable mechanical5P*26AWG+1P*24AWG+B
JacketPVC
Cable colorBlack
Connector modelmade in China
Connector durability≥ 750 cycles
Min. bending radius84 mm
Applicable scenarioStatic scene
Max. voltage30 VDC
Working temperature-20°C~75°C
CertificationRoHS2.0,UL
PackagingIndividual package
