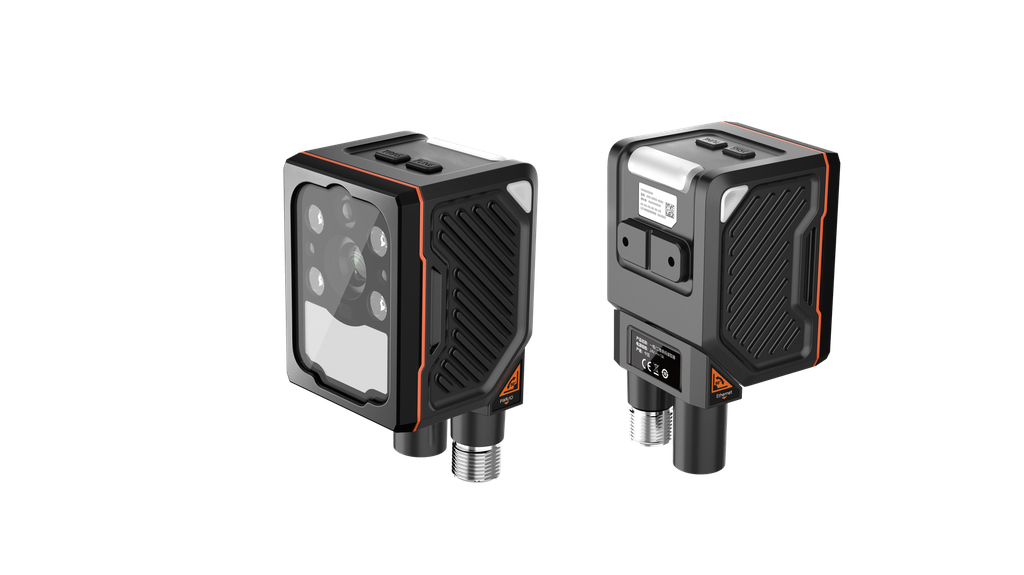

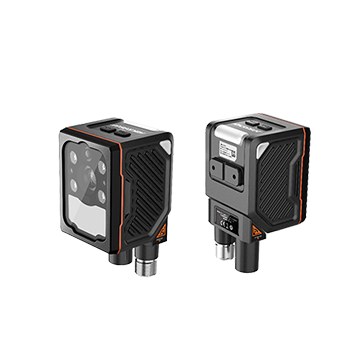

Hikrobot MV-ID3016XM-08M-RBN

ID3000 Series Smart Code Reader

Order code
MV-ID3016XM-08M-RBN
Order number
313201374
Resolution
1408 × 1200
Frame rate
60 fps
Focal length
8 mm
Interface
Fast Ethernet (100 Mbit/s)

Hikrobot MV-ID3016XM-08M-RBN is an industrial code reader for fast, reliable barcode and DataMatrix reading in production and logistics, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts built-in deep learning algorithm to read codes with good robustness.
✓Adopts CMOS sensor to acquire high-quality images.
✓Device with liquid lens combined with ToF can achieve fast image settings and real-time focusing.
✓Supports one-key auto adjustment and easy to operate.
✓Adopts multiple indicators displaying device status from different sides.
✓Rotatable cable design for flexible mounting.
✓Good environmental compatibility with Illuminating system.

Applications & Industries

What you can solve with this product:

Typical industries: Consumer electronicsAutomotiveBatteryMetalworking
Traceability
Traceability via barcode/DataMatrix in production and logistics
Reading
Reading on demanding surfaces (metal, plastic, low-contrast)
Sorting, track-and-trace and reject routing
Sorting, track-and-trace and reject routing on the line

Specifications

Performance
Symbologies1D codes: Code 39, Code 93, Code 128 (include GS1-128), CodaBar, EAN 8, EAN 13, ITF14, ITF25, UPCA, UPCE, Matrix 25, MSI, Code 11, Industrial 2of5, China Post, Pharmacode (one/two-track) 2D matrix codes: QR Code (include GS1-QR), Data Matrix (include GS1-DM), MicroQR, AZTEC, HanXin, Maxi Code Stacked codes: PDF 417, MicroPDF417
Max. frame rate60 fps
Max. reading speed110 codes/sec
Sensor typeCMOS, global shutter
Pixel size3.45 μm × 3.45 μm
Sensor size1/2.53"
Resolution1408 × 1200
Exposure time25 μs to 30000 μs
Gain0 dB to 24 dB
Mono/colorMono
Communication protocolSmartSDK, TCP Client, TCP Server, Serial, FTP, Profinet, MELSEC/SLMP, Ethernet/IP, ModBus, Fins, UDP
Electrical feature
Data interfaceFast Ethernet (100 Mbit/s)
Digital I/O12-pin M12 connector provides power and I/O, including opto-isolated input (LineIn 0/1/2) × 3, opto-isolated output (LineOut 3/4/5) × 3, and RS-232 × 1. Triggering the device is supported via pressing the top button.
Power supply24 VDC
Power consumptionAvg.: 6.2 W @ 24 VDC (light source enabled) Max.: 16.8 W @ 24 VDC (light source enabled)
Mechanical
Focal length8 mm
Lens mountM12-mount, mechanical focus
Lens capTransparent + polarized + diffused lens cap
Light sourceRed point light source + white diffused light source. White/blue/IR/UV point light source is optional.
Aiming systemOrange LED
IndicatorDevice body indicator, reading result indicator
Shell materialMetal
DimensionStraight angle: 80.1 mm × 43 mm × 44.3 mm (3.2" × 1.7" × 1.7") Right angle: 58.5 mm × 43 mm × 65.4 mm (2.3" × 1.7" × 2.6")
WeightApprox. 195 g (0.4 lb.)
Ingress protectionIP67 (under proper installation of waterproof lens cap)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
Vibration resistanceDevice only: 10 Hz to 55 Hz, 1.5 mm full amplitude, 2 hours per axis (X/Y/Z) (IEC 60068-2-6:2007\GB/T 2423.10-2019)
Shock resistanceDevice only, 30 g / 11 ms, half-sine wave, 500 shocks per axis (6 directions) (IEC 60068-2-27\GB/T 2423.5-2019)
General
Client softwareIDMVS
CertificationCE, RoHS, KC
