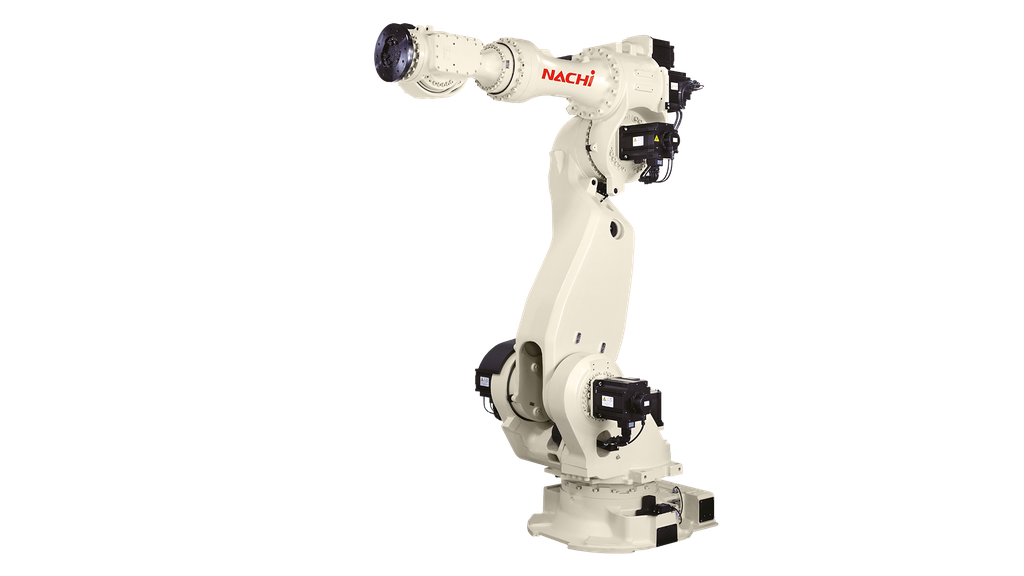

NACHI MC350

Industrial robot

Order code
MC350
Order number
NACHI MC350
Repeatability
±0.2 mm

NACHI MC350 is a heavy-payload 6-axis industrial articulated robot from NACHI's MC series for heavy material handling, palletizing and machine tending, supplied and supported by ZTEC as your NACHI robotics partner in the Nordics and Baltics.

Key features

✓The NACHI MC series is a family of heavy-payload 6-axis industrial articulated robots for heavy material handling, palletizing and machine tending, combining a long reach with high payload and rigidity.

Applications & Industries

What you can solve with this product:

Machine tending
Machine tending — loading and unloading
Material handling and part transfer
Material handling and part transfer
Assembly and screw driving
Assembly and screw driving
Arc and spot welding
Arc and spot welding
Dispensing, gluing and sealing
Dispensing, gluing and sealing
Inspection and quality control
Inspection and quality control

Specifications

Specifications
ConstructionArticulated
Number of axis6
Drive systemAC servo motor
Max. working envelope — Axis 1±3.14 rad （±180°）
Max. working envelope — Axis 2-1.75 ～ +0.70rad （-100 ～ +40°）
Max. working envelope — Axis 3-3.14 ～ +2.27 rad （-180 ～ +130°）
Max. working envelope — Axis 4±6.28 rad （±360°）
Max. working envelope — Axis 5±2.18 rad （±125°）
Max. working envelope — Axis 6±6.28 rad （±360°）
Maximum speedAxis 1: 1.83 rad/s (105°/ｓ)
Axis 2: 1.66 rad/s (95°/ｓ)
Axis 3: 1.66 rad/s (95°/ｓ)
Axis 4: 1.92 rad/s (110°/ｓ)
Axis 5: 1.92 rad/s (110°/ｓ)
Axis 6: 3.14 rad/s (180°/ｓ)
Max. pay load350 kg
Max. pay load — Forearm50 kg at maximum
Allowable static load torque — Axis 42750 N･m
Allowable static load torque — Axis 52750 N･m
Allowable static load torque — Axis 61235 N･m
Allowable moment of inertia — Axis 4400 kg･m 2
Allowable moment of inertia — Axis 5kg･ｍ2 400
Allowable moment of inertia — Axis 6250 kg･m 2
Position repeatability±0.2 mm
InstallationFloor mounting
Ambient conditionsTemperature: 0 to 45 ºC Humidity: 20 to 85%RH (No dew condensation allowed) Height: Not higher than 1,000 meters above sea level Vibration to the installation face: Not more than 0.5G (4.9 m/s2)
Robot mass1,620 kg

Downloads

Datasheets, drawings and manuals — all in one place.

FD20-MANUAL-EN.pdfPDF · 10.0 MB
MC350-280L-470P Brochure EN.pdfPDF · 570.0 KB
Technical support
We help with selection, integration and operation
Official NACHI partner
Genuine, CE-marked NACHI robots with full support
Full range & fast quotes
We supply the full NACHI industrial-robot, cobot and palletiser range

Need advice or a quote?

ZTEC is your NACHI partner — we find the right configuration for your application.

Contact us

Specifications

Robot Type Articulated Robots
Robot Payload 350 kg
Robot Reach 2771 mm
