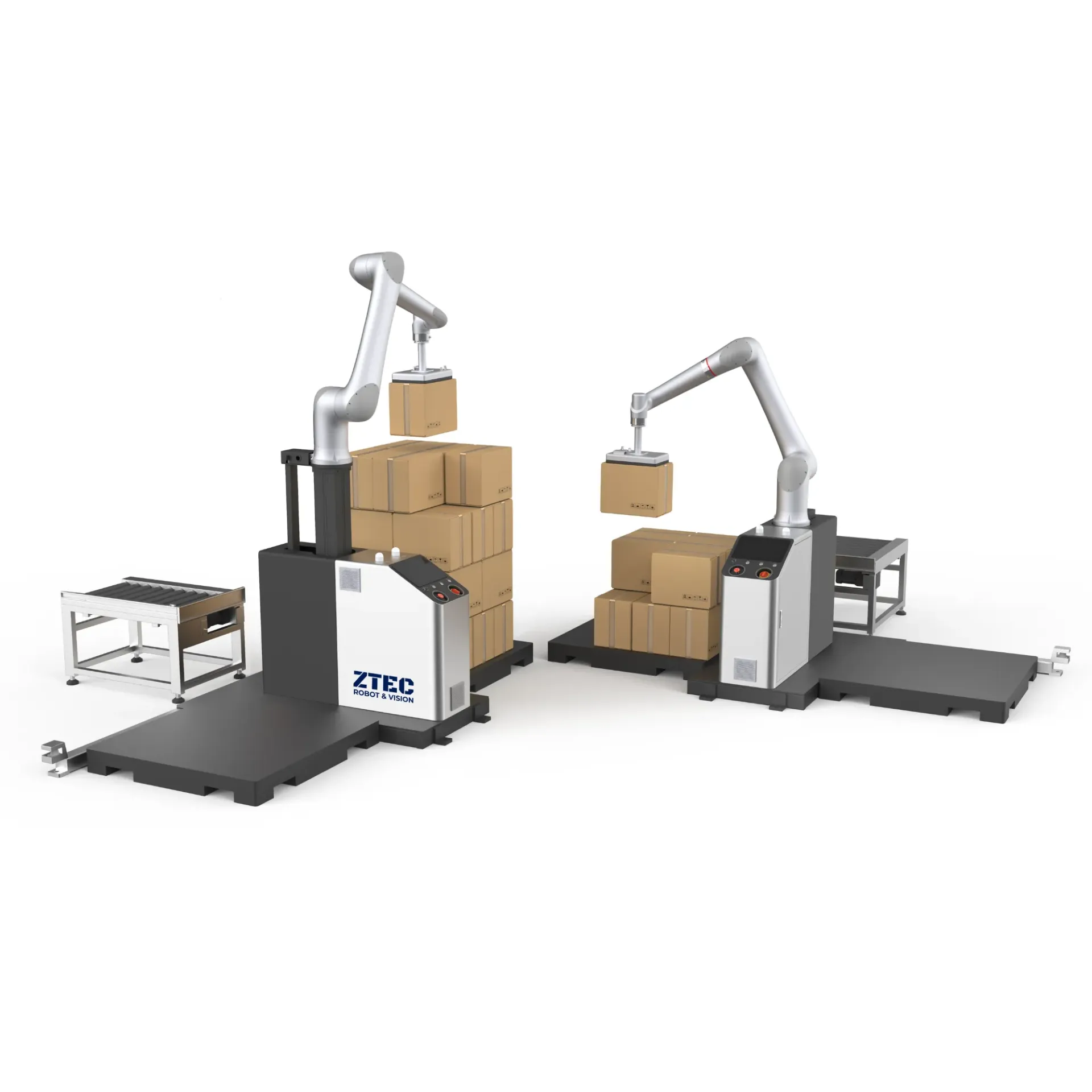

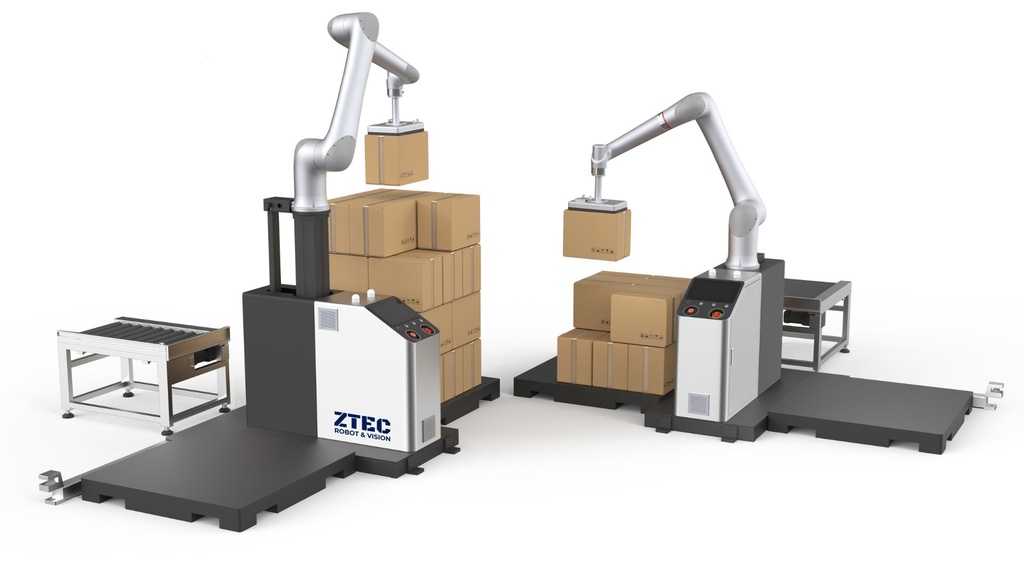

Cobot Palletizing Workstation - EasyPal 14L

https://ztec.odoo.com/web/image/product.template/48679/image_1920?unique=cba0781

EasyPal 14L is a no code and no programmering palletizing solution with a lift that can palletize boxes, metal objects and more. It is easy to install or integrate into your production line and takes no time to start.


Just enter your pallet and product measurements, your wishes on cardboard liner, orientation, pattern and palletizing style; and you are good to go.

This model is equipped with a Rokae Cobot CR17-5 and a lift, which enables the robot to palletize a total weight of 17 kg (Gripper + object). With a standard ~3 kg gripper, you can palletize 14 kg with this cobot configuration. It can palletize higher than the EasyPal 14 which has no lift installed.

Download the datasheet for the advantages and technical details of the solution.

Inkl. DAP

0.00 € 0.0 EUR 0.00 € Tax Excluded

kr 0.00 Tax Excluded

You need to login to see your price!

This combination does not exist.

Installation

Standard: 1300 mm x 1667 mm
With Safety Fence: Dependable on pallet size ....
Air Source: 0.5 Mpa - 0.8 Mpa, Air consumption: 400L/min
Power Source: AC 200-240V, 50Hz

Description

Easy Pal cobot workstation palletizes items from a conveyor belt onto two fixed pallet spots with high precision. Easy Pal is versatile and is easily installed in your production area. Relocate the workstation easily.

Included in Easy Pal is the Rokae Robot Assist software that allows anyone to quickly develop and implement new palletizing tasks and patterns via its intuitive and user-friendly interface.

The standard version of Easy Pal comes without protective shielding, giving it a minimal installation footprint. Easy Pal can also be upgraded to our 'High Speed' version, which includes safety fencing and safety equipment to ensure reduced speed when people are near the front of, or within, the working area.

Always Included

  • Torque Force Sensor in the cobot
  • Software - Robot Assist
  • Double pallet stations.
  • Status LED indicator in the front cabinet

Options

  • High speed mode (requires safety fence, tunnel and scanner)
  • Cardboard Liner
  • Conveyer Belt
  • Remote support
  • service agreement
  • Smart Barcode Reader
  • Pneumatic pressure monitoring
