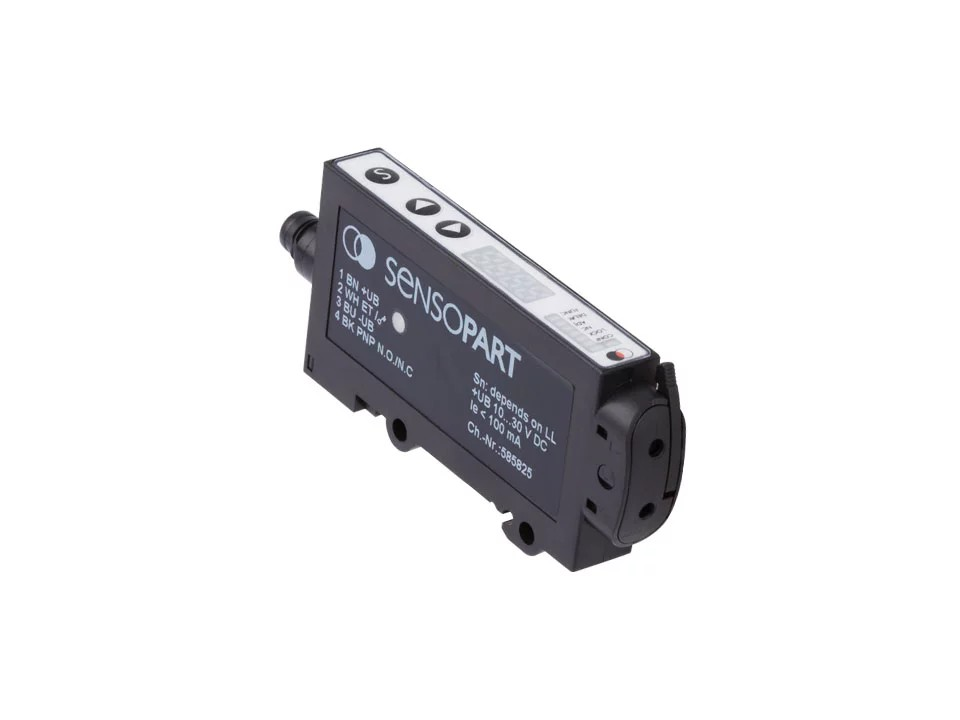

SensoPart FL 70 R PSM4

An industrial sensor for object detection and measurement in factory automation

Order code
FL 70 R PSM4
Order number
567-71000
SensoPart FL 70 R PSM4
Output
PNP
Connection
Plug M8, 4-pin
Protection
IP64
Temp. range
-20 ... +60

SensoPart FL 70 R PSM4 is an industrial sensor for object detection and measurement in factory automation, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓Fibre-optic sensor for the adaptation of a wide variety of fiber-optic cables
✓DIN-rail mounting
✓No mutual interference thanks to automatic communication
✓Simple operation via electronic Teach-in button or control line
✓Robust plastic housing (IP 64)

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Optical data
Light sourceLED, red
Functions
Switching outputPNP
AdjustmentTeach-in
Functions
Switching outputPNP
AdjustmentTeach-in
Mechanical data
Enclosure ratingIP64

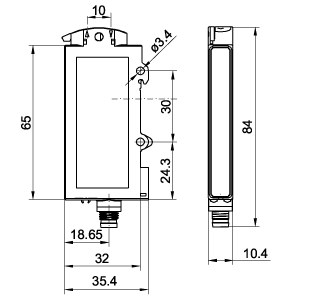

SeriesF70 (84 x 35 x 10 mm)
Temperature range [°C]-20 ... +60
Connection typePlug M8, 4-pin
Additional specifications
Velocity [Hz]≤ 1500
