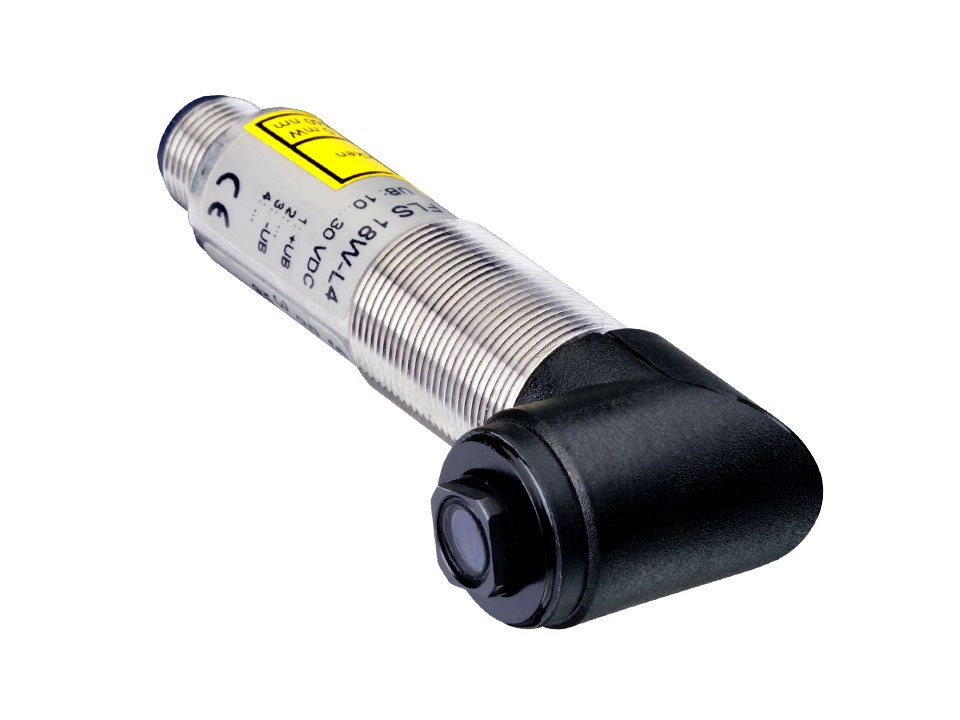

SensoPart FLE 18 W-L4

A through-beam photoelectric sensor (emitter + receiver) for the longest ranges and reliable detection of small or fast-moving objects

Order code
FLE 18 W-L4
Order number
580-51414
SensoPart FLE 18 W-L4
Working distance
0
Output
PNP
Connection
Plug M12, 4-pin
Protection
IP65

SensoPart FLE 18 W-L4 is a through-beam photoelectric sensor (emitter + receiver) for the longest ranges and reliable detection of small or fast-moving objects.

Key features

✓Operating range: 50 m
✓Red light laser, 650 nm
✓Transmitter beam can be focused according to application
✓Accuracy adjustable via beam spot size
✓Smallest detectable part: 0.03 mm
✓Switching frequency, 6000 Hz
✓Metal M18 threaded sleeve

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Optical data
Working distance min. [mm]0
Working distance max. [mm]50000
Light sourceLaser, red (Class 1)
Electrical data
Switching outputPNP
Velocity [Hz]6000
Functions
AdjustmentPotentiometer
Mechanical data
Enclosure ratingIP65
SeriesM18
Temperature range [°C]-10. +50
Connection typePlug M12, 4-pin
Additional specifications
Sensor principlePhotoelectric through-beam sensor
