SENSOPART FT 10-RH-PS-E4

SensoPart FT 10-RH-PS-E4 — For this prodcut a new version is available: 600-11048 FT 10-RH-PNSL-E4 That offers additional functionality via IO-Link. More. Genuine product, supplied and supported by ZTEC.

172.98 € 172.98 €
kr 1,293.12
(Tax excluded)
Contact Us
Documents
SENSOPART FT 10-RH-PS-E4 - Brochure 2.pdf SENSOPART FT 10-RH-PS-E4 - Brochure.pdf SENSOPART FT 10-RH-PS-E4 - CAD.zip SENSOPART FT 10-RH-PS-E4 - Datasheet.pdf SENSOPART FT 10-RH-PS-E4 - Manual.pdf
OFFICIAL SENSOPART PARTNER · ZTECCE · EU compliant

SensoPart FT 10-RH-PS-E4

A photoelectric proximity sensor with background suppression — it detects an object at a defined range and reliably ignores whatever is behind it

Order code
FT 10-RH-PS-E4
Order number
600-11000
SensoPart FT 10-RH-PS-E4
Working distance
5
Output
PNP
Connection
Plug M5, 4-pin
Protection
IP 67

SensoPart FT 10-RH-PS-E4 is a photoelectric proximity sensor with background suppression — it detects an object at a defined range and reliably ignores whatever is behind it, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓Adjustable background suppression up to scanning distance 70 mm
✓Static or dynamic teach-in via teach-in button and control line
✓Button lock via control input
✓N.O./N.C. switching via teach-in button and control line
✓Dovetail clamp mounting MBD F 10 supplied

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Optical data
AdjustmentTeach-in
Working distance min. [mm]5
Working distance max. [mm]70
Light sourceLED, red
Electrical data
Switching outputPNP
Velocity [Hz]1000
Mechanical data
Enclosure ratingIP 67

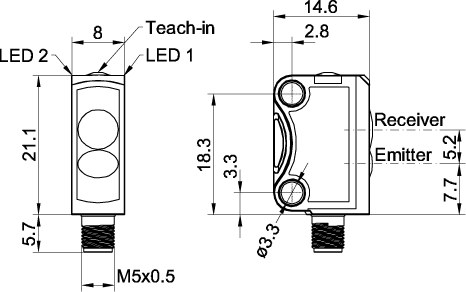

SeriesF10 (21,1 x 14,6 x 8 mm)
Temperature range [°C]-20 ... +60
Connection typePlug M5, 4-pin
Additional specifications
Sensor principlePhotoelectric diffuse sensor with Background Suppression
