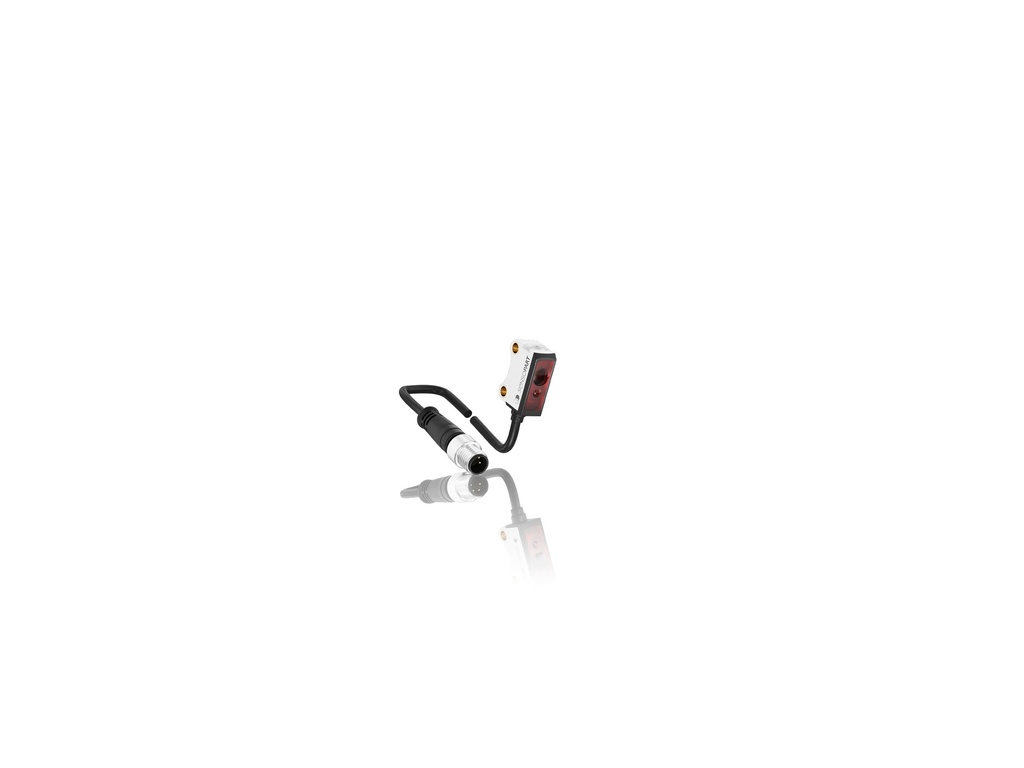

SENSOPART FS/FE 10-RL-NS-KM3

SensoPart FS/FE 10-RL-NS-KM3 — Laser trough-beam sensor, ermitter and receiver, SN=3000mm, NPN, 4000Hz, IP67 cable with connector M8 3-pin 200 mm cable, teach. Genuine product, supplied and supported by ZTEC.

165.98 € 165.98 €
kr 1,240.80
(Tax excluded)
Contact Us
Documents
SENSOPART FS/FE 10-RL-NS-KM3 - Brochure 2.pdf SENSOPART FS/FE 10-RL-NS-KM3 - Brochure.pdf SENSOPART FS/FE 10-RL-NS-KM3 - CAD.zip SENSOPART FS/FE 10-RL-NS-KM3 - Datasheet.pdf SENSOPART FS/FE 10-RL-NS-KM3 - Manual.pdf
OFFICIAL SENSOPART PARTNER · ZTECCE · EU compliant

SensoPart FS/FE 10-RL-NS-KM3

A through-beam photoelectric sensor (emitter + receiver) for the longest ranges and reliable detection of small or fast-moving objects

Order code
FS/FE 10-RL-NS-KM3
Order number
611-51007
SensoPart FS/FE 10-RL-NS-KM3
Working distance
0
Output
NPN
Connection
Pigtail, plug M8, 3-wire, 200 mm
Protection
IP 67

SensoPart FS/FE 10-RL-NS-KM3 is a through-beam photoelectric sensor (emitter + receiver) for the longest ranges and reliable detection of small or fast-moving objects, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓Sub-miniature sensor for installation in the smallest of spaces
✓Bright, precise laser light spot for optimum small-part detection and simple alignment
✓High switching frequency for detection in even the fastest processes
✓User-friendly operation via electronic Teach-in button or control line
✓Robust, glass-fibre-reinforced plastic housings

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Optical data
Working distance min. [mm]0
Working distance max. [mm]4000
Light sourceLaser, red (Class 1)
Electrical data
Switching outputNPN
Velocity [Hz]4000
Functions
AdjustmentTeach-in
Mechanical data
Enclosure ratingIP 67
SeriesF10 (21,1 x 14,6 x 8 mm)
Temperature range [°C]-20 ... +50
Connection typePigtail, plug M8, 3-wire, 200 mm
Additional specifications
Sensor principlePhotoelectric through-beam sensor
