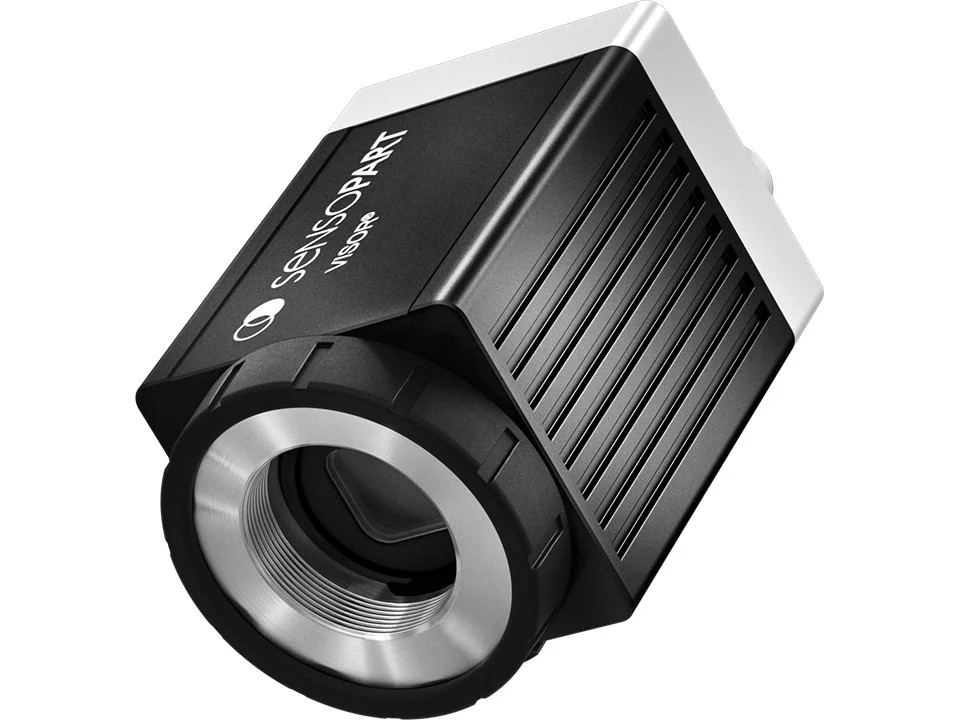

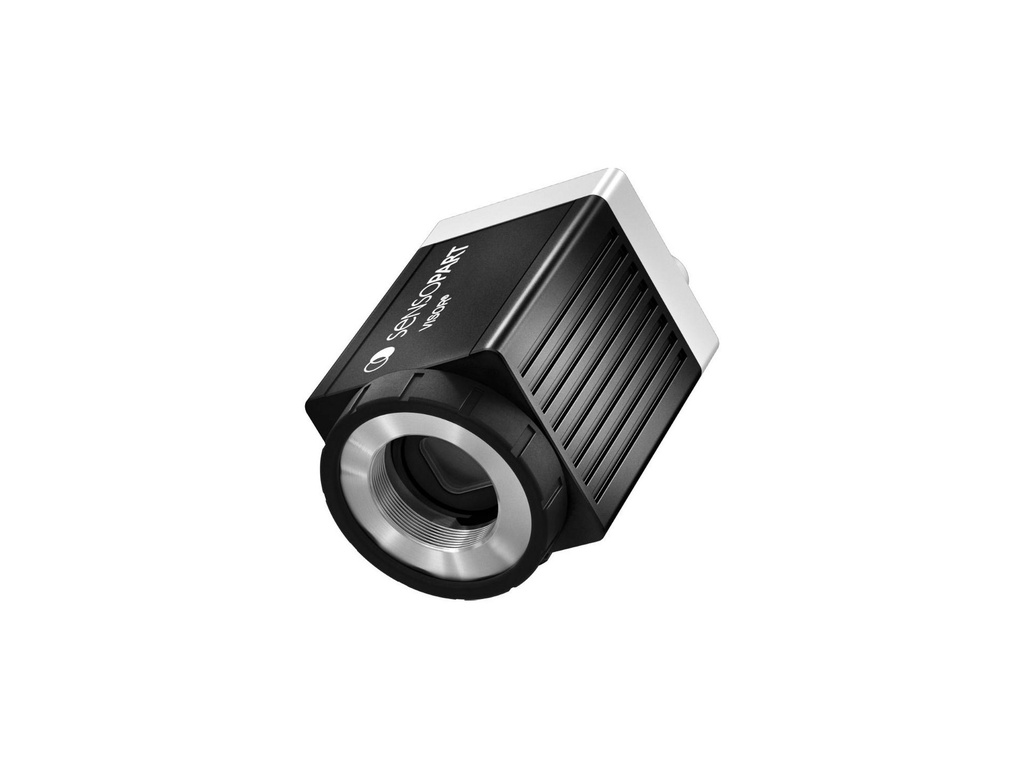

SENSOPART V10C-ALL-A3-C-2

SensoPart V10C-ALL-A3-C-2 — VISOR V10 Allround Color, Advanced, 255 jobs each with 255 detectors, C-Mount, LAN interface. Genuine product, supplied and supported by ZTEC.

4,464.34 € 4,464.34 €
kr 33,374.54
(Tax excluded)
  • Sensor Field of View
Contact Us
Documents
SENSOPART V10C-ALL-A3-C-2 - Brochure.pdf SENSOPART V10C-ALL-A3-C-2 - CAD.zip SENSOPART V10C-ALL-A3-C-2 - Datasheet.pdf SENSOPART V10C-ALL-A3-C-2 - Manual 2.pdf SENSOPART V10C-ALL-A3-C-2 - Manual 3.pdf SENSOPART V10C-ALL-A3-C-2 - Manual.pdf
OFFICIAL SENSOPART PARTNER · ZTECCE · EU compliant

SensoPart V10C-ALL-A3-C-2

A VISOR vision sensor for inline inspection — presence, position, measurement and code reading in factory automation

Order code
V10C-ALL-A3-C-2
Order number
631-91036
SensoPart V10C-ALL-A3-C-2
Resolution
SVGA
Field of view
C-Mount (field-of-view data depend on the lens used)
Protection
IP 65, IP 67

SensoPart V10C-ALL-A3-C-2 is a VISOR vision sensor for inline inspection — presence, position, measurement and code reading in factory automation, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓Detecting objects
✓Measurement
✓Identify
✓Positioning
✓Counting

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationAutomotiveElectronicsPackagingLogistics
Presence and completeness inspection
Presence and completeness inspection
Measurement and gauging
Measurement and gauging
Code & character reading (1D/2D, OCR)
Code & character reading (1D/2D, OCR)
Robot guidance and pick-and-place
Robot guidance and pick-and-place
Position correction and alignment
Position correction and alignment

Specifications

Optical data
Image chip typeColor
ResolutionSVGA
Imaging chip technologyCMOS
Field of view typeC-Mount (field-of-view data depend on the lens used)
Focus driveDependent on the objective lens selected
Functions
HardwareVISOR®
Max. number of jobs255
Max. number of detectors255
Result processingText, Numbers
Pre-processingArrangement, Filter
Network protocolTCP/IP, Profinet, EtherNet/IP, sFTP, SMB, FTP, Service Port
AlignmentContour comparison, Pattern matching, Edge detection
Available detectorsPattern matching, Contour, Contour check, BLOB, Data code, Barcode, OCR, Brightness, Contrast, Gray level, Color value, Color area, Caliper, Color list
CalibrationBoard (measurement), Scaling (measurement)
Additional functionsArchiving, Image transmission, individual overlays, Multiple image acquisition, Color channel, color distance and binarization, Multiple detection for contour and pattern matching detector, Job checksum, Conditional executions
Electrical data
Reverse polarity protectionYes
Overvoltage protectionNo
Explanation of residual rippleEN 61000-4-17
PolarityPNP/NPN
Short circuit protectionYes
Input threshold (High)> UB-1V
Input threshold (Low)< 3V
Explanation of max. output currentmax. 100 mA on pin 12
Number of switchable IOs6
Number of outputs2
Number of inputs2
Encoder functionsYes
Type of voltage sourceThe device must be supplied by a "Class 2" power supply unit.
Inductive loadsTyp.: Relay 17 K / 2 H, pneumatic valve 1.4 K / 190 mH
- Number of pins12
Explanation of protection classFor C-mount devices, only in combination with protective tube
Mechanical data
Front panel materialPMMA
Housing materialAluminum (cast)
Connection nameSupply
Protection classIP 65, IP 67
Vibration and shock resistanceEN 60068-2-6, EN 60068-2-27
- CodingA
- ThreadM12x1
- MaterialMetal
Explanation of ambient temperature: operation< 95 % humidity, non-condensing
Explanation of ambient temperature: storage< 95 % humidity, non-condensing
Additional specifications
- TypePlug
