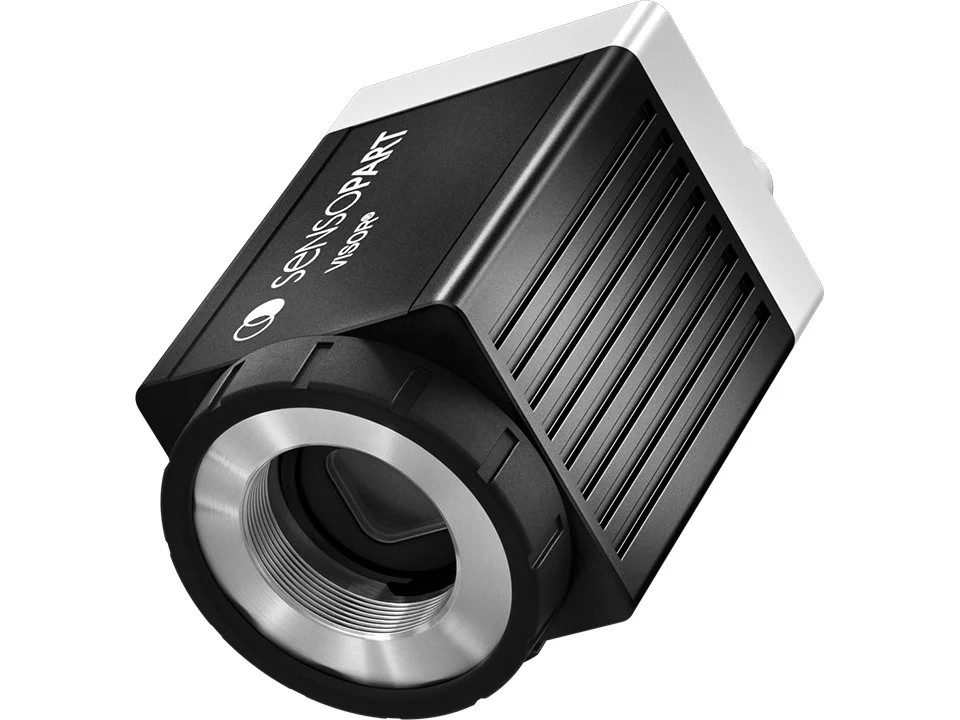

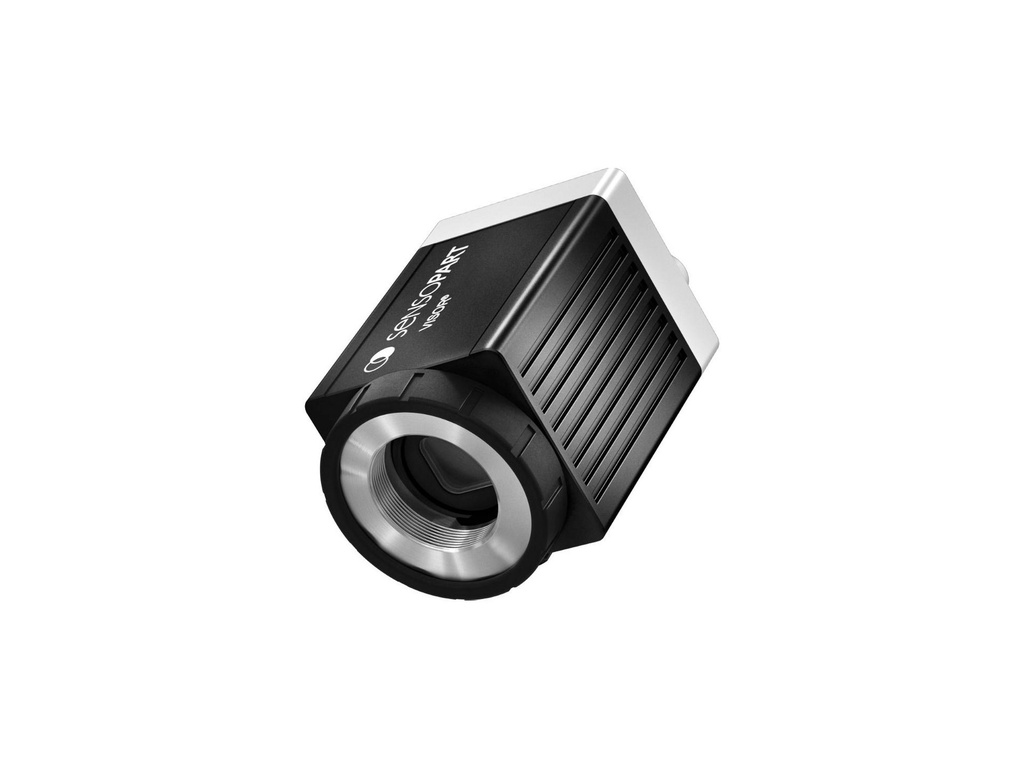

SENSOPART V10-CR-A3-C-2

SENSOPART V10-CR-A3-C-2

SensoPart V10-CR-A3-C-2 — VISOR V10 Code Reader, Advanced, 255 jobs each with 255 detectors, C-Mount, LAN interface. Genuine product, supplied and supported by ZTEC.

0.00 € 0.00 €
kr 0.00
(Tax excluded)
  • Sensor Field of View
Contact Us
Documents
SENSOPART V10-CR-A3-C-2 - Brochure.pdf SENSOPART V10-CR-A3-C-2 - CAD.zip SENSOPART V10-CR-A3-C-2 - Datasheet.pdf SENSOPART V10-CR-A3-C-2 - Manual 2.pdf SENSOPART V10-CR-A3-C-2 - Manual 3.pdf SENSOPART V10-CR-A3-C-2 - Manual.pdf
OFFICIAL SENSOPART PARTNER · ZTEC

SensoPart V10-CR-A3-C-2

VISOR® Vision Sensor · Code Reader

Resolution
SVGA
Field of view
C-Mount (field-of-view data depend on the lens used)
Interfaces
TCP/IP, Profinet, EtherNet/IP, sFTP, SMB, FTP, Service Port
Protection
IP 65, IP 67

SensoPart V10-CR-A3-C-2 is a VISOR vision sensor configured as a code reader for fast, reliable 1D barcode and 2D DataMatrix/QR reading directly on the production line.

VISOR V10 Code Reader, Advanced, 255 jobs each with 255 detectors, C-Mount, LAN interface

What V10-CR-A3-C-2 delivers

  • ✓Barcode : Reading 1D barcodes: EAN, UPC, RSS, 2/5 Interleaved, 2/5 Industrial, Code 32, Code 39, Code 93, Code 128, GS1, Pharmacode, Codabar
  • ✓Datacode : Reading 2D codes: ECC200, QR code, PDF 417, ECC200 GS1
  • ✓Result processing : Text: Monitoring and calculating detector results

Where & why

What you can solve with this code reader:

Typical industries: LogisticsPackagingPharmaceuticalElectronics
→1D barcode and 2D DataMatrix/QR reading for traceability
→Track-and-trace and part verification on the line
→Reading codes on metal, plastic and low-contrast surfaces
→Sorting and reject routing by code content

Technical specifications

Image chip typeMonochrome
ResolutionSVGA
Imaging chip technologyCMOS
Field of view typeC-Mount (field-of-view data depend on the lens used)
Focus driveDependent on the objective lens selected
HardwareVISOR®
Max. number of jobs255
Max. number of detectors255
Available detectorsData code, Barcode
Result processingText
Pre-processingArrangement, Filter
Additional functionsArchiving, Image transmission, individual overlays, Multiple image acquisition, Job checksum
Network protocolTCP/IP, Profinet, EtherNet/IP, sFTP, SMB, FTP, Service Port
Type of voltage sourceThe device must be supplied by a "Class 2" power supply unit.
Reverse polarity protectionYes
Overvoltage protectionNo
Explanation of residual rippleEN 61000-4-17
PolarityPNP/NPN
Short circuit protectionYes
Input threshold (High)> UB-1V
Input threshold (Low)< 3V
Explanation of max. output currentmax. 100 mA on pin 12
Inductive loadsTyp.: Relay 17 K / 2 H, pneumatic valve 1.4 K / 190 mH
Number of switchable IOs6
Number of outputs2
Number of inputs2
Encoder functionsYes
Front panel materialPMMA
Housing materialAluminum (cast)
Connection nameSupply
- Number of pins12
- CodingA
- ThreadM12x1
- MaterialMetal
- TypePlug
Explanation of ambient temperature: operation< 95 % humidity, non-condensing
Explanation of ambient temperature: storage< 95 % humidity, non-condensing
Protection classIP 65, IP 67
Explanation of protection classFor C-mount devices, only in combination with protective tube
Vibration and shock resistanceEN 60068-2-6, EN 60068-2-27
Official SensoPart partner
Genuine, CE-marked products
Technical support
Selection, integration and operation
Full range
We source the entire SensoPart range

Specifications

Sensor Field of View C-Mount
