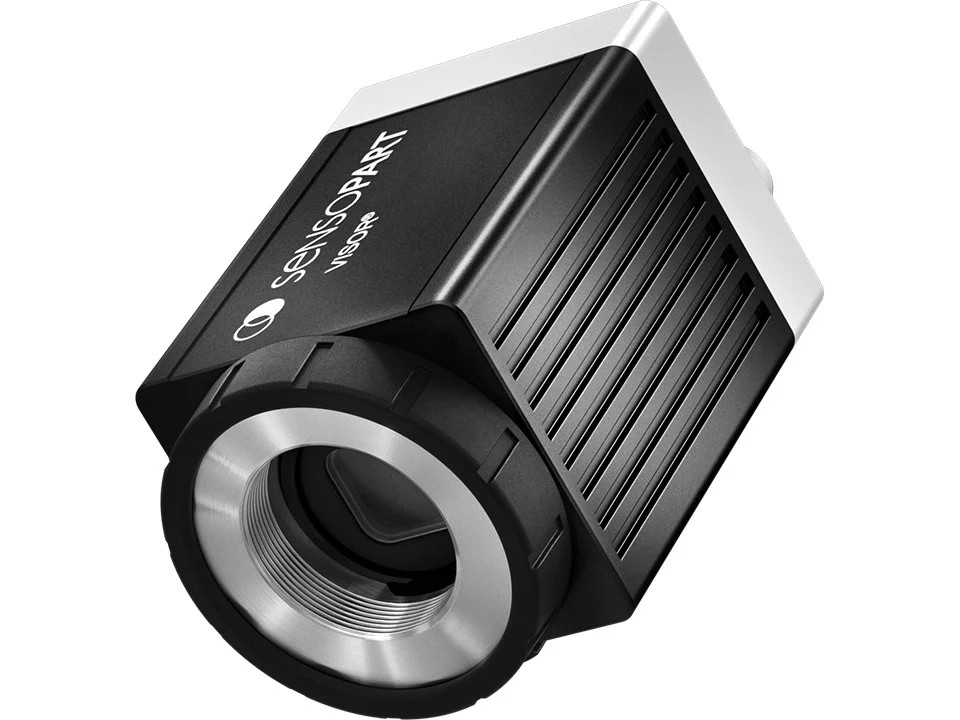

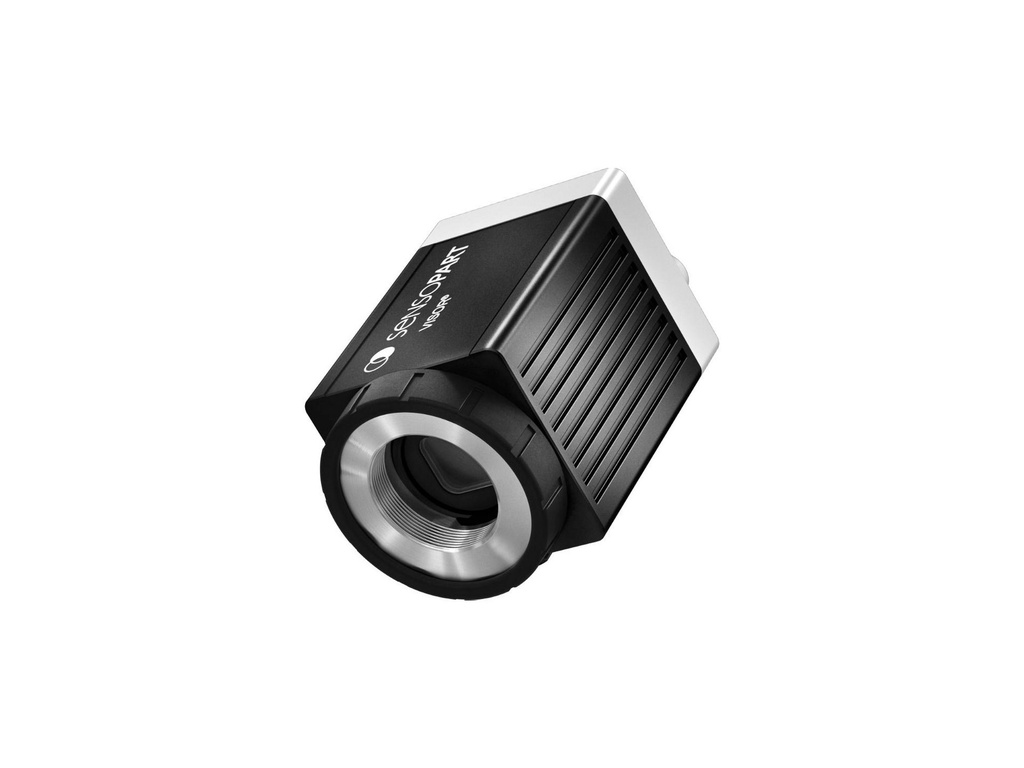

SENSOPART V10-RO-A3-C-2

SensoPart V10-RO-A3-C-2 — VISOR V10 Robotic, Advanced, 255 jobs each with 255 detectors, C-Mount, LAN interface. Genuine product, supplied and supported by ZTEC.

3,064.84 € 3,064.84 €
kr 22,909.96
(Tax excluded)
  • Sensor Field of View
Contact Us
Documents
SENSOPART V10-RO-A3-C-2 - Brochure.pdf SENSOPART V10-RO-A3-C-2 - CAD.zip SENSOPART V10-RO-A3-C-2 - Datasheet.pdf SENSOPART V10-RO-A3-C-2 - Manual 2.pdf SENSOPART V10-RO-A3-C-2 - Manual 3.pdf SENSOPART V10-RO-A3-C-2 - Manual.pdf
OFFICIAL SENSOPART PARTNER · ZTECCE · EU compliant

SensoPart V10-RO-A3-C-2

A VISOR robotic vision sensor that gives robots eyes — part localisation and pick-point guidance for accurate pick-and-place and assembly

Order code
V10-RO-A3-C-2
Order number
631-91082
SensoPart V10-RO-A3-C-2
Resolution
SVGA
Field of view
C-Mount (field-of-view data depend on the lens used)
Protection
IP 65, IP 67

SensoPart V10-RO-A3-C-2 is a VISOR robotic vision sensor that gives robots eyes — part localisation and pick-point guidance for accurate pick-and-place and assembly, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓Detecting objects
✓Measurement
✓Identify
✓Positioning

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationAutomotiveElectronicsPackagingLogistics
Presence and completeness inspection
Presence and completeness inspection
Measurement and gauging
Measurement and gauging
Code & character reading (1D/2D, OCR)
Code & character reading (1D/2D, OCR)
Robot guidance and pick-and-place
Robot guidance and pick-and-place
Position correction and alignment
Position correction and alignment

Specifications

Optical data
Image chip typeMonochrome
ResolutionSVGA
Imaging chip technologyCMOS
Field of view typeC-Mount (field-of-view data depend on the lens used)
Focus driveDependent on the objective lens selected
Functions
Network protocolTCP/IP, Profinet, EtherNet/IP, sFTP, SMB, FTP, Service Port
HardwareVISOR®
Max. number of jobs255
Max. number of detectors255
Available detectorsPattern matching, Contour, BLOB, Target mark (3D), Brightness, Contrast, Gray level, Caliper
Result processingNumbers, Robotics
Pre-processingArrangement, Filter
AlignmentContour comparison, Pattern matching, Edge detection
CalibrationBoard (measurement), Board (robotics), Scaling (measurement), Point pair list (robotics)
Robotic functionsGripper clearance check, Result offset, image coordinates, Result offset 2D, Result offset 3D
Additional functionsArchiving, Image transmission, individual overlays, Multiple image acquisition, Multiple detection for contour and pattern matching detector, Multiple detection for detector contour (3D), Job checksum
Electrical data
Reverse polarity protectionYes
Overvoltage protectionNo
Explanation of residual rippleEN 61000-4-17
PolarityPNP/NPN
Short circuit protectionYes
Input threshold (High)> UB-1V
Input threshold (Low)< 3V
Explanation of max. output currentmax. 100 mA on pin 12
Number of switchable IOs6
Number of outputs2
Number of inputs2
Encoder functionsYes
Type of voltage sourceThe device must be supplied by a "Class 2" power supply unit.
Inductive loadsTyp.: Relay 17 K / 2 H, pneumatic valve 1.4 K / 190 mH
- Number of pins12
Explanation of protection classFor C-mount devices, only in combination with protective tube
Mechanical data
Front panel materialPMMA
Housing materialAluminum (cast)
Connection nameSupply
Protection classIP 65, IP 67
Vibration and shock resistanceEN 60068-2-6, EN 60068-2-27
- CodingA
- ThreadM12x1
- MaterialMetal
Explanation of ambient temperature: operation< 95 % humidity, non-condensing
Explanation of ambient temperature: storage< 95 % humidity, non-condensing
Additional specifications
- TypePlug
