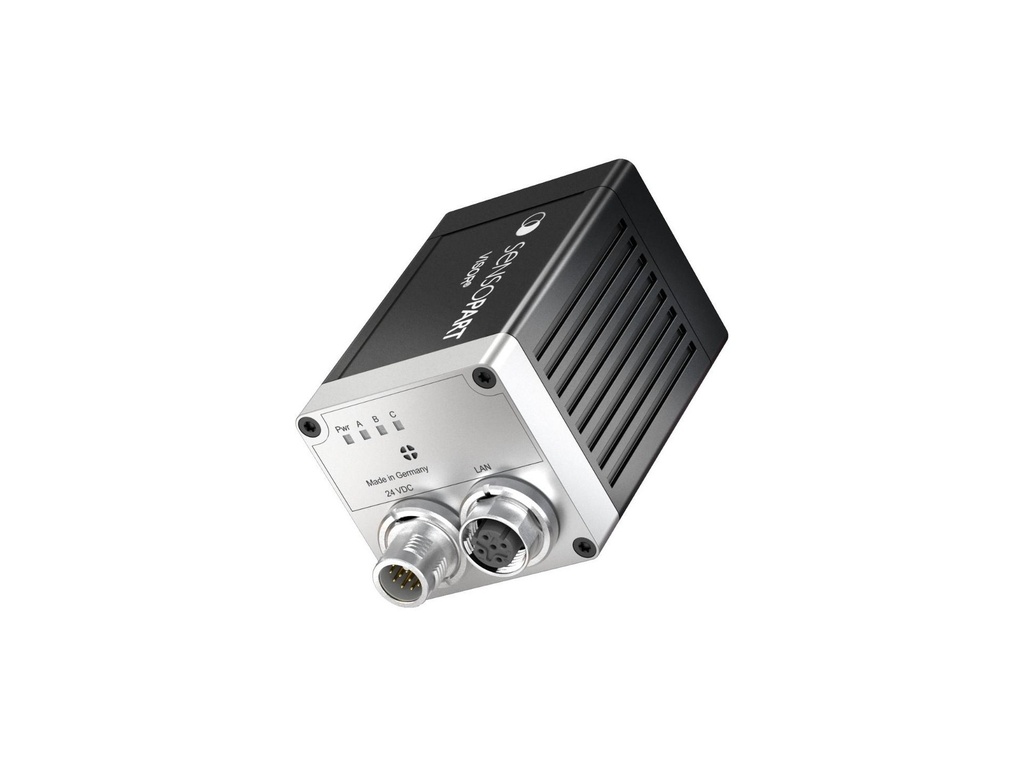

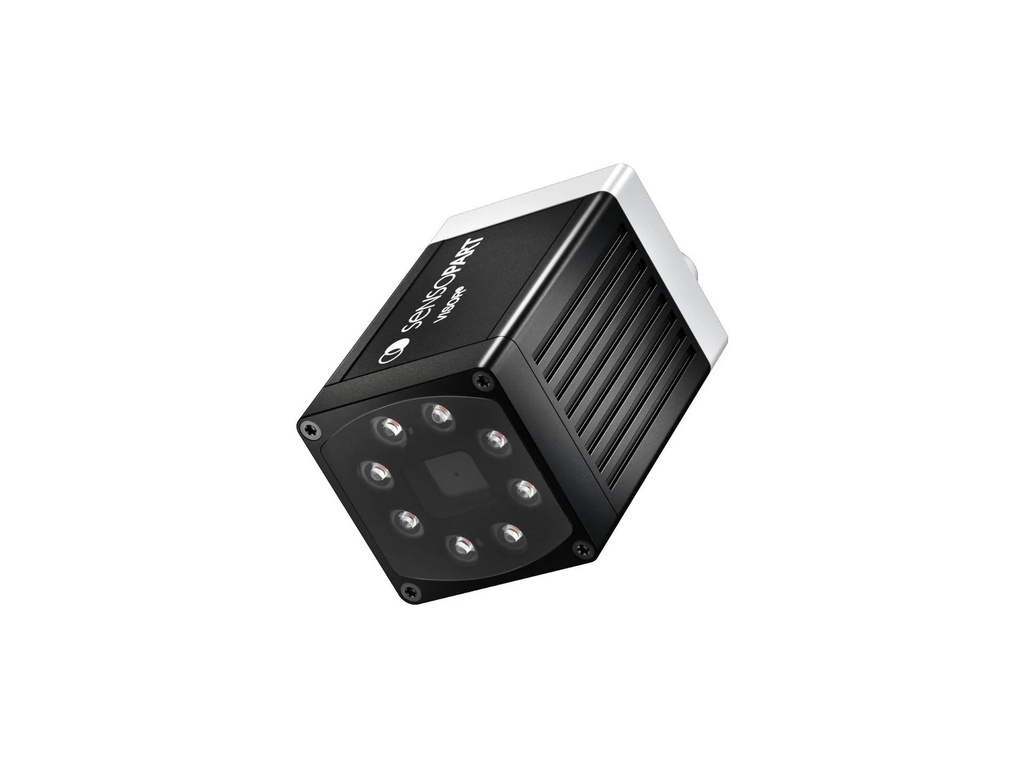

Image chip typeMonochrome
Explanation of risk categoryAcc. to EN 62471
Imaging chip technologyCMOS
Target laserLaser red (655 nm)
Laser class1 (IEC 60825-1)
Max. number of detectors255
Result processingText, Numbers, Robotics
Pre-processingArrangement, Filter
Network protocolTCP/IP, Profinet, EtherNet/IP, sFTP, SMB, FTP, Service Port
AlignmentContour comparison, Pattern matching, Edge detection
Available detectorsPattern matching, Contour, Contour (3D), Contour check, BLOB, Target mark (3D), Data code, Barcode, OCR, Brightness, Contrast, Gray level, Caliper, Classification (AI)

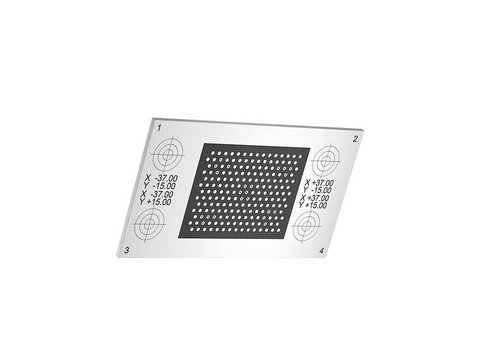

CalibrationBoard (measurement), Board (robotics), Hand-Eye (robotics), Base-Eye (robotics), Scaling (measurement), Point pair list (robotics)
Robotic functionsGripper clearance check, Result offset, image coordinates, Result offset 2D, Result offset 3D
Additional functionsArchiving, Image transmission, individual overlays, Multiple image acquisition, Multishot, Color channel, color distance and binarization, Multiple detection for contour and pattern matching detector, Multiple detection for detector contour (3D), Job checksum, Conditional executions
Reverse polarity protectionYes
Explanation of residual rippleEN 61000-4-17
Short circuit protectionYes
Input threshold (High)> UB-1V
Input threshold (Low)< 3V
Explanation of max. output currentmax. 100 mA on pin 12
Number of switchable IOs6
Type of voltage sourceThe device must be supplied by a "Class 2" power supply unit.
Inductive loadsTyp.: Relay 17 K / 2 H, pneumatic valve 1.4 K / 190 mH
Explanation of protection classFor C-mount devices, only in combination with protective tube
Housing materialAluminum (cast)
Protection classIP 65, IP 67
Vibration and shock resistanceEN 60068-2-6, EN 60068-2-27
Explanation of ambient temperature: operation< 95 % humidity, non-condensing
Explanation of ambient temperature: storage< 95 % humidity, non-condensing
