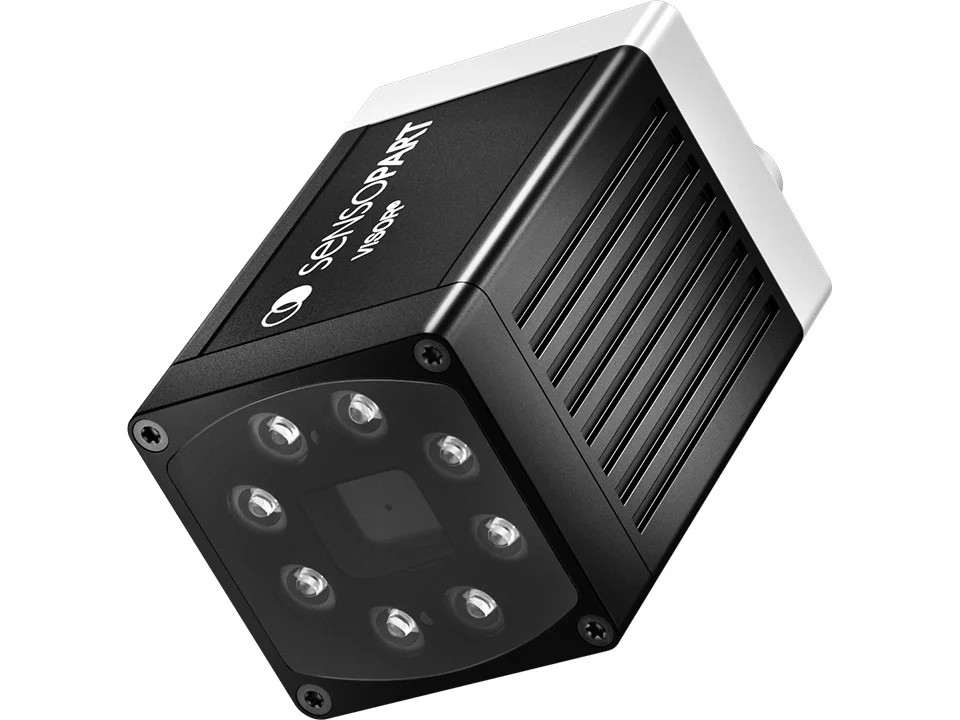

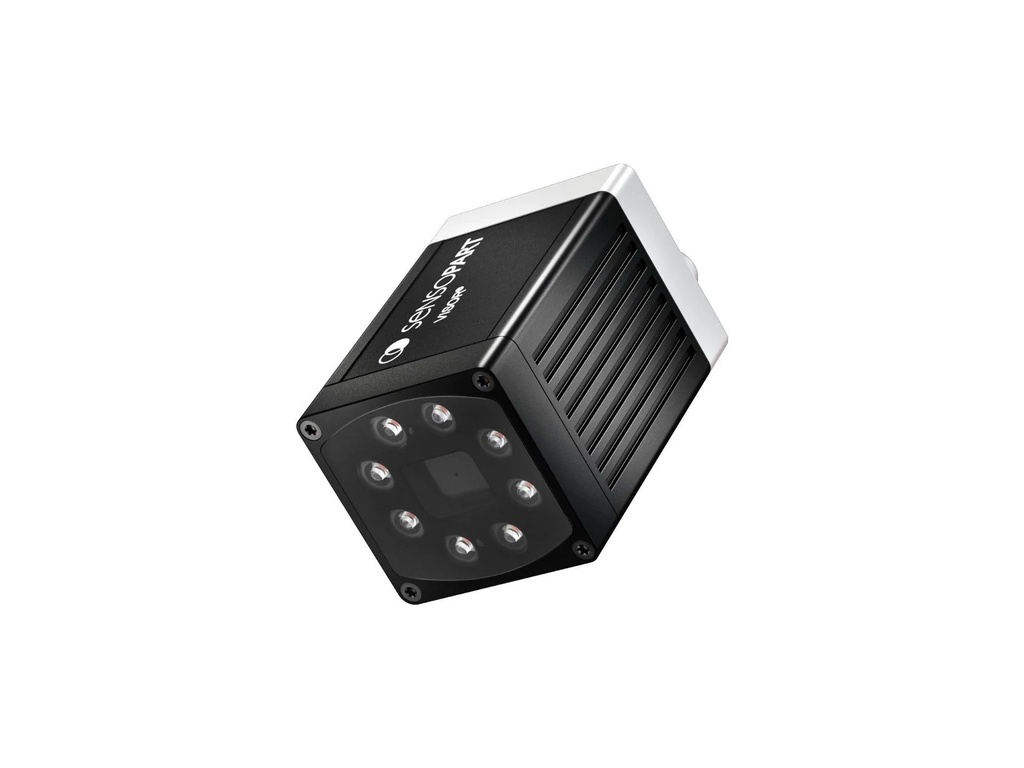

Image chip typeMonochrome
Explanation of risk categoryAcc. to EN 62471
Imaging chip technologyCMOS
Target laserLaser red (655 nm)
Laser class1 (IEC 60825-1)
Network protocolTCP/IP, Profinet, EtherNet/IP, sFTP, SMB, FTP, Service Port
Max. number of detectors255
AlignmentContour comparison, Pattern matching, Edge detection
Available detectorsPattern matching, Contour, Contour (3D), BLOB, Target mark (3D), Data code, Barcode, OCR, Brightness, Contrast, Gray level, Caliper
Result processingText, Numbers, Robotics
Pre-processingArrangement, Filter

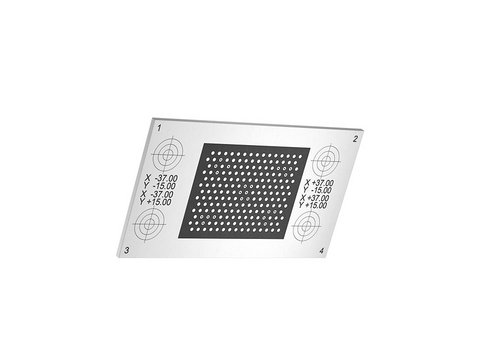

CalibrationBoard (measurement), Board (robotics), Hand-Eye (robotics), Base-Eye (robotics), Scaling (measurement), Point pair list (robotics)
Robotic functionsGripper clearance check, Result offset, image coordinates, Result offset 2D, Result offset 3D
Additional functionsArchiving, Image transmission, individual overlays, Multiple image acquisition, Multiple detection for contour and pattern matching detector, Multiple detection for detector contour (3D), Job checksum, Conditional executions

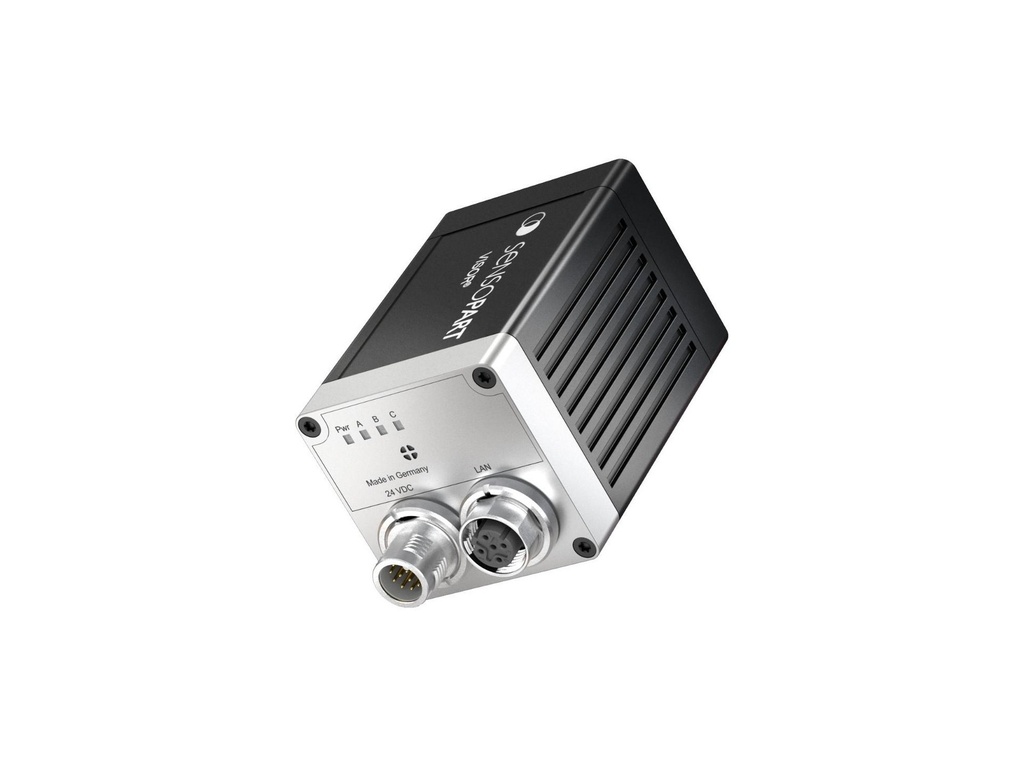

Type of voltage sourceThe device must be supplied by a "Class 2" power supply unit.
Reverse polarity protectionYes
Explanation of residual rippleEN 61000-4-17
Short circuit protectionYes
Input threshold (High)> UB-1V
Input threshold (Low)< 3V
Explanation of max. output currentmax. 100 mA on pin 12
Inductive loadsTyp.: Relay 17 K / 2 H, pneumatic valve 1.4 K / 190 mH
Number of switchable IOs6
Housing materialAluminum (cast)
Explanation of ambient temperature: operation< 95 % humidity, non-condensing
Explanation of ambient temperature: storage< 95 % humidity, non-condensing
Protection classIP 65, IP 67
Explanation of protection classFor C-mount devices, only in combination with protective tube
Vibration and shock resistanceEN 60068-2-6, EN 60068-2-27
