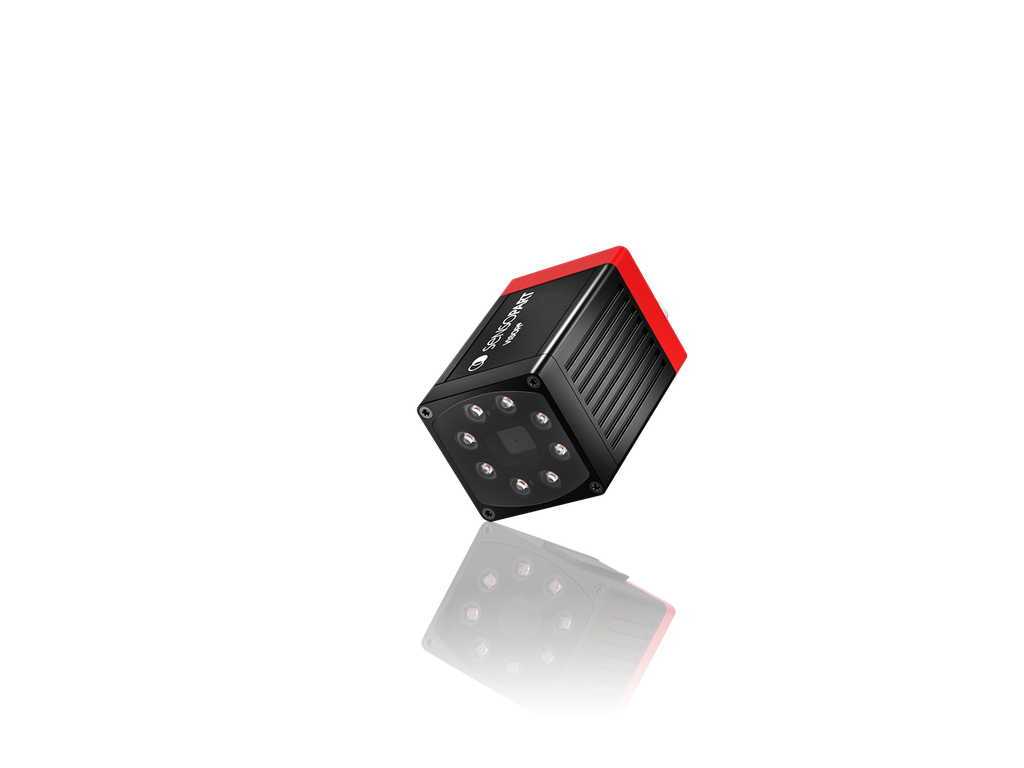

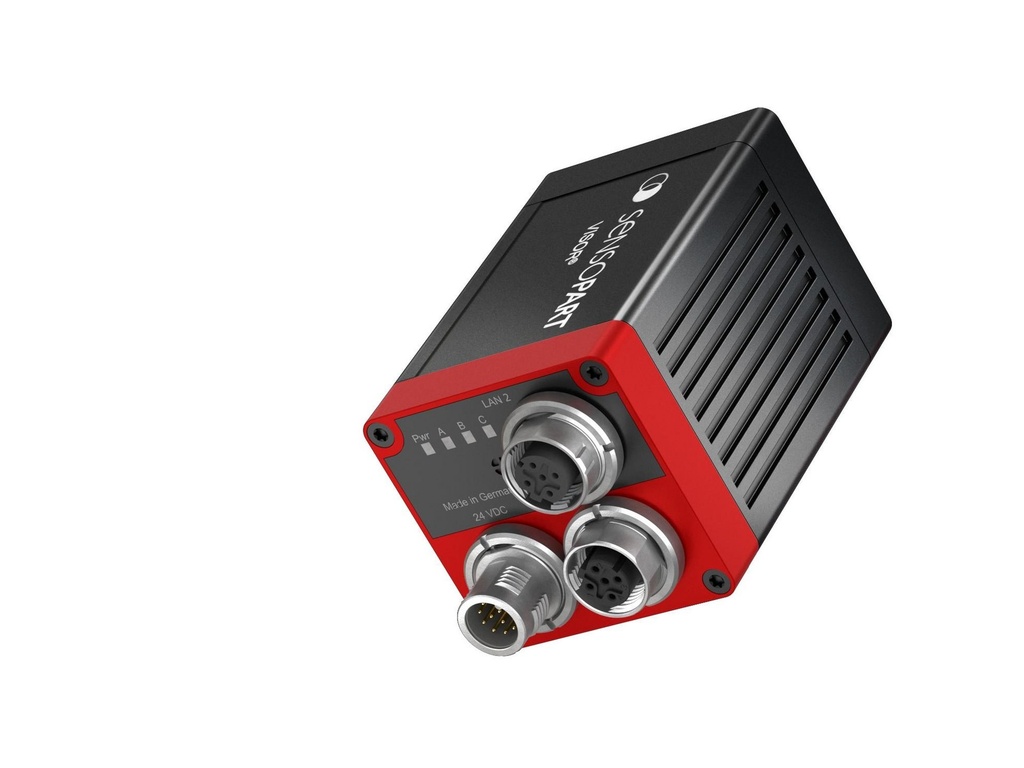

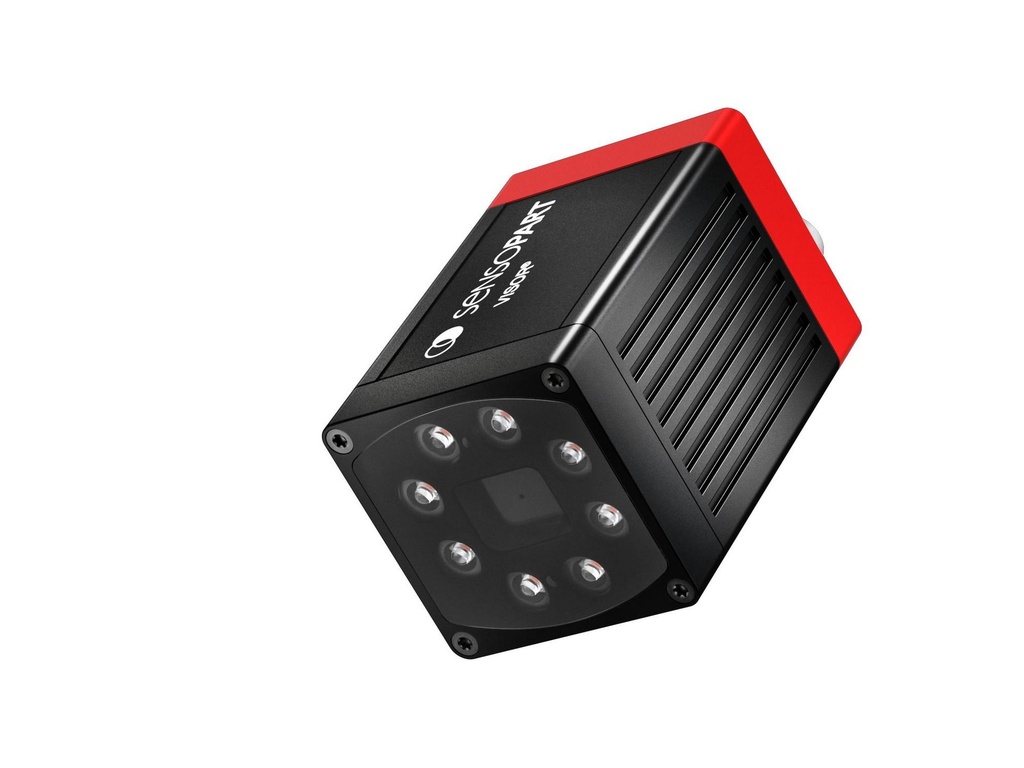

SENSOPART V50-CR-A4-R-W-M3-L

SensoPart V50-CR-A4-R-W-M3-L — VISOR® XE V50 Code Reader Advanced, red illumination, wide field of view, motorized focus, LAN interface, target laser. Genuine product, supplied and supported by ZTEC.

4,590.12 € 4,590.12 €
kr 34,311.12
(Tax excluded)
  • Resolution (MP)
  • Mono or Color
  • Sensor Type
  • Sensor Light Color
  • Sensor Field of View
Contact Us
Documents
SENSOPART V50-CR-A4-R-W-M3-L - Brochure.pdf SENSOPART V50-CR-A4-R-W-M3-L - CAD.zip SENSOPART V50-CR-A4-R-W-M3-L - Datasheet.pdf SENSOPART V50-CR-A4-R-W-M3-L - Manual 2.pdf SENSOPART V50-CR-A4-R-W-M3-L - Manual 3.pdf SENSOPART V50-CR-A4-R-W-M3-L - Manual.pdf
OFFICIAL SENSOPART PARTNER · ZTECCE · EU compliant

SensoPart V50-CR-A4-R-W-M3-L

A VISOR vision sensor configured as a code reader for fast, reliable 1D barcode and 2D DataMatrix/QR reading directly on the line

Order code
V50-CR-A4-R-W-M3-L
Order number
638-91033
SensoPart V50-CR-A4-R-W-M3-L
Resolution
QSXGA
Field of view
Wide
Protection
IP 65, IP 67

SensoPart V50-CR-A4-R-W-M3-L is a VISOR vision sensor configured as a code reader for fast, reliable 1D barcode and 2D DataMatrix/QR reading directly on the line, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓Barcode : Reading 1D barcodes: EAN, UPC, RSS, 2/5 Interleaved, 2/5 Industrial, Code 32, Code 39, Code 93, Code 128, GS1, Pharmacode, Codabar
✓Datacode : Reading 2D codes: ECC200, QR code, PDF 417, ECC200 GS1
✓Result processing : Text: Monitoring and calculating detector results

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationAutomotiveElectronicsPackagingLogistics
Presence and completeness inspection
Presence and completeness inspection
Measurement and gauging
Measurement and gauging
Code & character reading (1D/2D, OCR)
Code & character reading (1D/2D, OCR)
Robot guidance and pick-and-place
Robot guidance and pick-and-place
Position correction and alignment
Position correction and alignment

Specifications

Optical data
Image chip typeMonochrome
Light sourceLED
Light colorRed
ResolutionQSXGA
Imaging chip technologyCMOS
Field of view typeWide
Aperture number2.8
Depth of fieldStandard
Focus driveMotorized
Target laserLaser red (655 nm)
Laser class1 (IEC 60825-1)
Functions
HardwareVISOR® XE
Max. number of jobs255
Max. number of detectors255
Available detectorsData code, Barcode
Result processingText
Pre-processingArrangement, Filter
Additional functionsArchiving, Image transmission, individual overlays, Multiple image acquisition, Job checksum
Electrical data
Reverse polarity protectionYes
Overvoltage protectionNo
Explanation of residual rippleEN 61000-4-17
PolarityPNP/NPN
Short circuit protectionYes
Input threshold (High)> UB-1V
Input threshold (Low)< 3V
Explanation of max. output currentmax. 100 mA on pin 12
Number of switchable IOs6
Number of outputs2
Number of inputs2
Encoder functionsNo
Type of voltage sourceThe device must be supplied by a "Class 2" power supply unit.
Inductive loadsTyp.: Relay 17 K / 2 H, pneumatic valve 1.4 K / 190 mH
- Number of pins12
Explanation of protection classFor C-mount devices, only in combination with protective tube
Mechanical data
Front panel materialPMMA
Housing materialAluminum (cast)
Connection nameSupply
Protection classIP 65, IP 67
Vibration and shock resistanceEN 60068-2-6, EN 60068-2-27
- CodingA
- ThreadM12x1
- MaterialMetal
Explanation of ambient temperature: operation< 95 % humidity, non-condensing
Explanation of ambient temperature: storage< 95 % humidity, non-condensing
Additional specifications
- TypePlug

Accessories and compatible hardware

Complete your solution — compatible mountings, cables and optics.

Recommended accessories

MA 18
Accessory
MA 18
View product →
MA 30
Accessory
MA 30
View product →
MC 08
Accessory
MC 08
View product →
MC 30
Accessory
MC 30
View product →
Technical support
We help with selection, integration and operation
Official SensoPart partner
Genuine, CE-marked products with full warranty
Full range & fast quotes
We source the entire range, including special items

Need advice or a quote?

ZTEC is your SensoPart partner — we find the right configuration for your application.

Contact us

Specifications

Vision specifications
Resolution (MP) 2560 x 1936 (5 MP)
Mono or Color Mono
Sensor Specifications
Sensor Type Code Reader
Sensor Light Color Red
Sensor Field of View Wide
