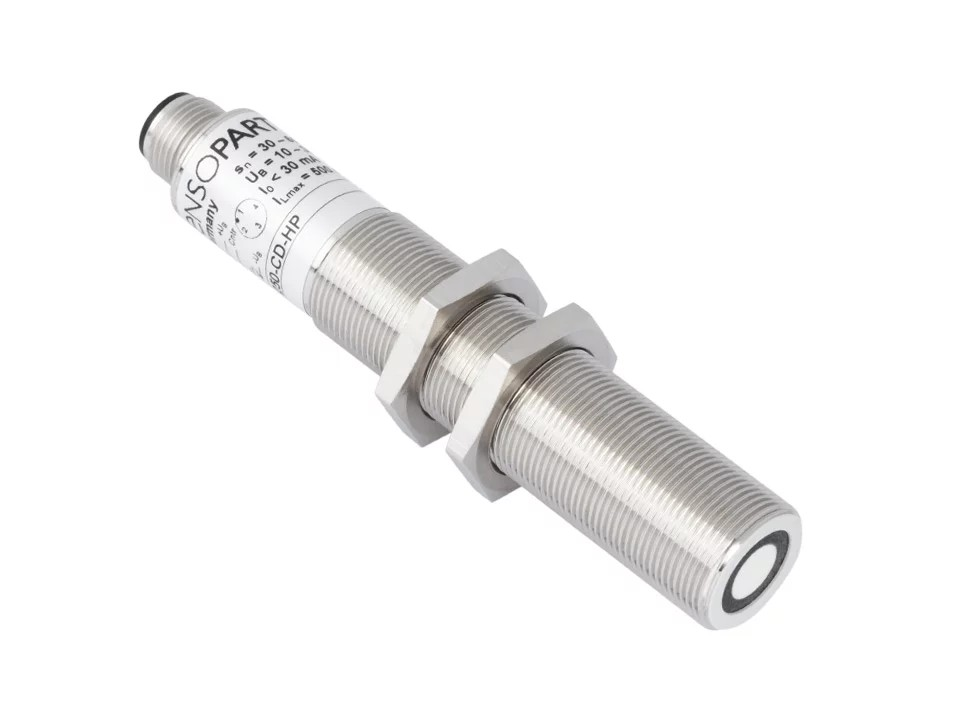

SensoPart UM 18-60/250-CD-HP

An ultrasonic sensor for distance and presence detection independent of colour or surface

Order code
UM 18-60/250-CD-HP
Order number
690-51541
SensoPart UM 18-60/250-CD-HP
Repeatability
0.05
Resolution
0.4
Working distance
30
Connection
Plug M12, 4-pin

SensoPart UM 18-60/250-CD-HP is an ultrasonic sensor for distance and presence detection independent of colour or surface, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓Robust M18 metal housings for harsh operating conditions
✓Optional brass or stainless steel housings
✓Operating scanning distance either 60 mm or 250 mm
✓Simple sensor settings via control input

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Specifications
Switching frequency [Hz]25
OutputSwitching (PNP)
Ultrasonic frequency [kHz]320
SeriesM18
Working distance min. [mm]30
Working distance max. [mm]250
Amount of swithing outputs1
Resolution [mm]0.4
Repeatability [mm]0.05
Temperature range [°C]-25 ... +70
Temperature drift [%]± 1.5 %
Connection typePlug M12, 4-pin
Enclosure ratingIP65
