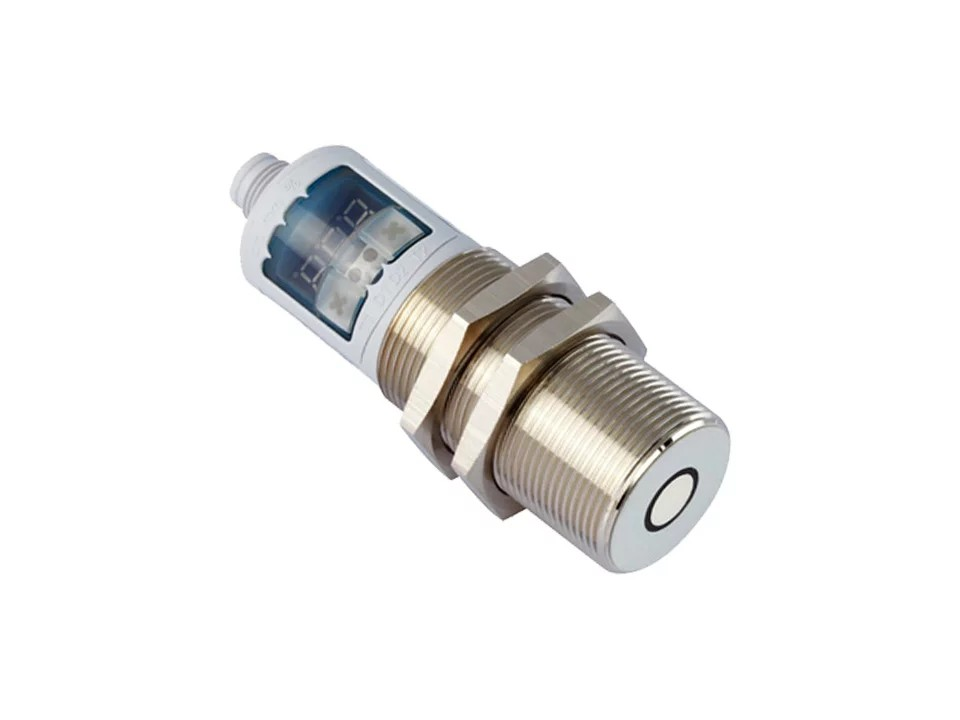

SensoPart UMT 30-350-A-IUD-L5

An ultrasonic sensor for distance and presence detection independent of colour or surface

Order code
UMT 30-350-A-IUD-L5
Order number
690-51572
SensoPart UMT 30-350-A-IUD-L5
Repeatability
± 0.15%
Resolution
0.4
Working distance
65
Connection
Plug M12, 5-pin

SensoPart UMT 30-350-A-IUD-L5 is an ultrasonic sensor for distance and presence detection independent of colour or surface, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓Automatic selection to current or voltage output
✓Easy pre-setting of sensor via digital display – sensor immediately ready for operation
✓Synchronisation of up to 10 devices in restricted spaces
✓Additional features with numerous supplementary functions

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Specifications
Response time [ms]64
OutputAnalog (current), Analog (voltage)
Ultrasonic frequency [kHz]320
SeriesM30
Working distance min. [mm]65
Working distance max. [mm]350
Amount of swithing outputs2
Resolution [mm]0.4
Repeatability [mm]± 0.15%
Temperature range [°C]-25 ... +70
Connection typePlug M12, 5-pin
Enclosure ratingIP 67
