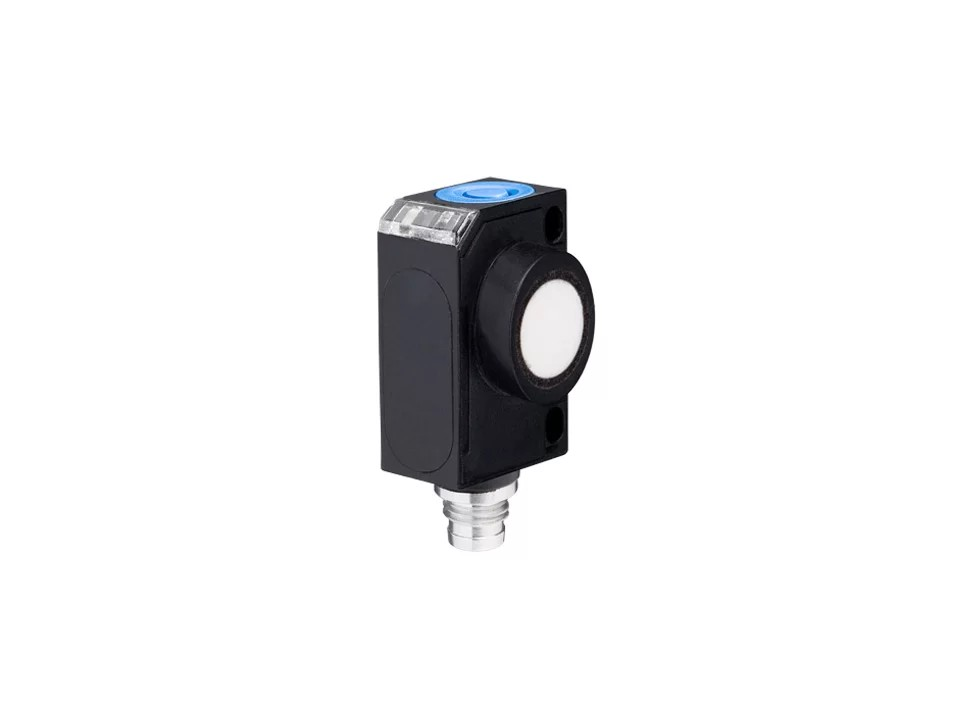

SensoPart UT 20-700-AIM4

An ultrasonic sensor for distance and presence detection independent of colour or surface

Order code
UT 20-700-AIM4
Order number
693-11011
SensoPart UT 20-700-AIM4
Repeatability
± 0.15%
Resolution
0.2
Working distance
120
Connection
Metal plug M8, 4-pin

SensoPart UT 20-700-AIM4 is an ultrasonic sensor for distance and presence detection independent of colour or surface.

Key features

✓Long scanning distance of 700 mm with small and compact housings
✓Analogue output: 0 … 10 V or 4 … 20 mA
✓Ideal for monitoring filling levels, e.g. of liquids
✓Detection regardless of object colour and surface

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Electrical data
Response time [ms]30
OutputAnalog (current)
Ultrasonic frequency [kHz]300
Amount of swithing outputs1
Mechanical data
Enclosure ratingIP 67
SeriesUT20 (32 x 21,6 x 12 mm)
Temperature range [°C]-25. +70
Connection typeMetal plug M8, 4-pin
Additional specifications
Working distance min. [mm]120
Working distance max. [mm]700
Resolution [mm]0.2
Repeatability [mm]± 0.15%
Temperature drift [%]≤ 2 %
