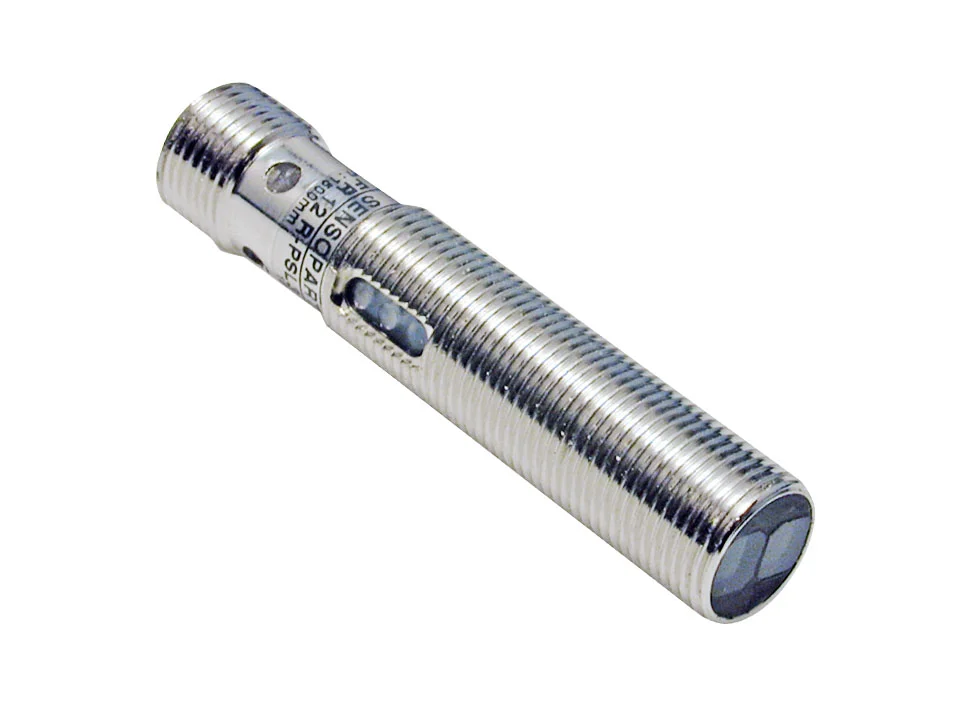

SensoPart FR 12 R-NSL4

A photoelectric sensor for reliable object detection in factory automation

Order code
FR 12 R-NSL4
Order number
703-11001
SensoPart FR 12 R-NSL4
Working distance
60
Output
NPN
Connection
Plug M12, 4-pin
Protection
IP 67

SensoPart FR 12 R-NSL4 is a photoelectric sensor for reliable object detection in factory automation, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓Robust M12 metal housings with short mounting lengths
✓Operating range: 60 … 1500 mm
✓Red light, 660 nm
✓Switching state and functional reserve indicators

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Optical data
Spot size [mm]10 x 10
Working distance min. [mm]60
Working distance max. [mm]1500
Light sourceLED, red
Electrical data
Switching outputNPN
Velocity [Hz]1000
Functions
AdjustmentFix
Mechanical data
Enclosure ratingIP 67
SeriesM12
Temperature range [°C]-25 ... +55
Connection typePlug M12, 4-pin
Additional specifications
Sensor principlePhotoelectric retro-reflective sensor
