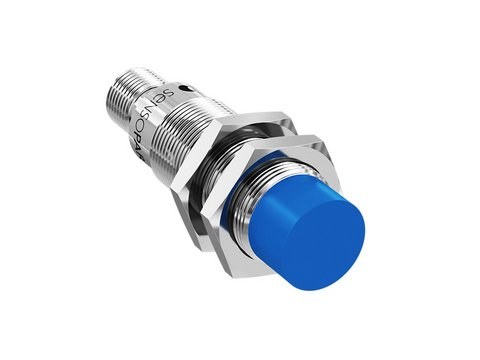

SENSOPART IS 518-04-S

SensoPart IS 518-04-S — IS 518-04-S Induktiver Sensor Inductive sensor, 20mm, M18 non flush, PNP N.O., cable. Genuine product, supplied and supported by ZTEC.

0.00 € 0.00 €
kr 0.00
(Tax excluded)
Contact Us
OFFICIAL SENSOPART PARTNER · ZTECCE · EU compliant

SensoPart IS 518-04-S

An inductive proximity sensor for reliable, non-contact detection of metal objects in industrial automation

Order code
IS 518-04-S
Order number
996-51450
SensoPart IS 518-04-S
Working distance
20
Output
NPN
Connection
Plug M12, 4-pin
Protection
IP 67

SensoPart IS 518-04-S is an inductive proximity sensor for reliable, non-contact detection of metal objects in industrial automation, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓IS 518-04-S Induktiver Sensor Inductive sensor, 20mm, M18 non flush, PNP N.O., cable
✓Inductive Sensors

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryMetalworkingAutomotive
End-position and presence detection of metal parts
End-position and presence detection of metal parts
Counting, indexing and rotational-speed monitoring
Counting, indexing and rotational-speed monitoring
Robust sensing
Robust sensing in dusty, wet or oily environments
Tool and clamp position confirmation
Tool and clamp position confirmation

Specifications

Specifications
Velocity [Hz]≤ 200
MountingNon-flush
HousingBrass, nickel-plated
SeriesM18
Working distance max. [mm]20
Switching outputNPN
Temperature range [°C]-25 ... +70
Connection typePlug M12, 4-pin
Enclosure ratingIP 67
