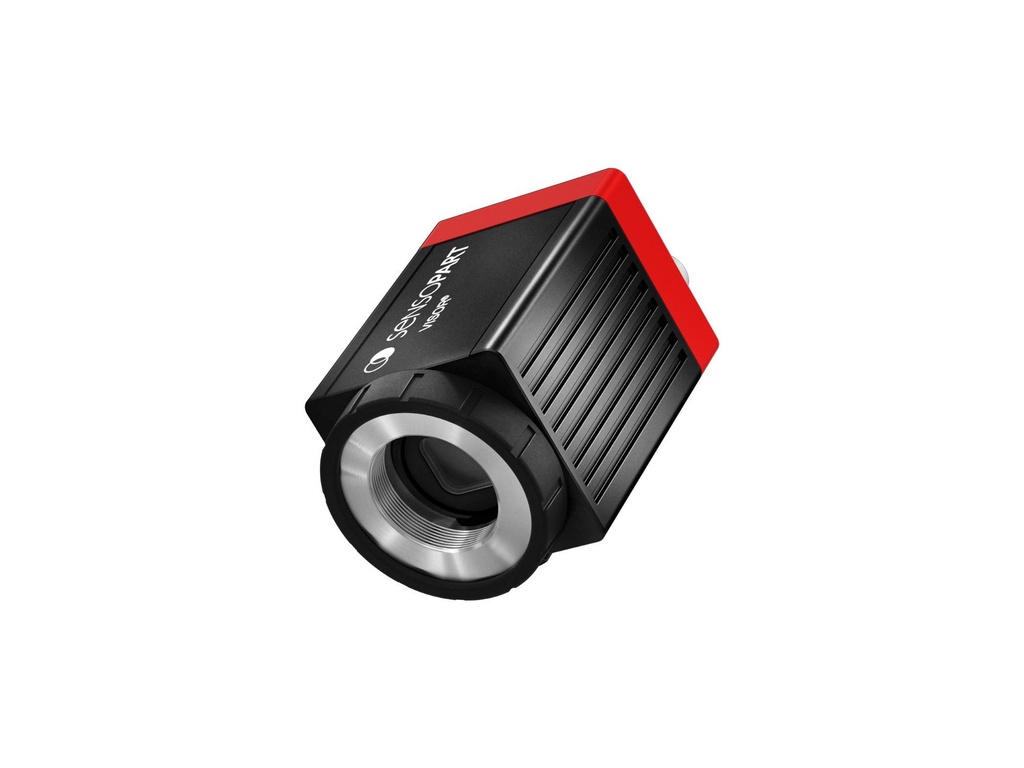

SENSOPART V50-RO-P4-C-3

SensoPart V50-RO-P4-C-3 — VISOR® XE V50 Robotic Professional, C-Mount, LAN interface. Genuine product, supplied and supported by ZTEC.

7,951.42 € 7,951.42 €
kr 59,443.20
(Tax excluded)
  • Sensor Field of View
Contact Us
Documents
SENSOPART V50-RO-P4-C-3 - Brochure.pdf SENSOPART V50-RO-P4-C-3 - CAD.zip SENSOPART V50-RO-P4-C-3 - Datasheet.pdf SENSOPART V50-RO-P4-C-3 - Manual 2.pdf SENSOPART V50-RO-P4-C-3 - Manual 3.pdf SENSOPART V50-RO-P4-C-3 - Manual.pdf
OFFICIAL SENSOPART PARTNER · ZTECCE · EU compliant

SensoPart V50-RO-P4-C-3

A VISOR robotic vision sensor that gives robots eyes — part localisation and pick-point guidance for accurate pick-and-place and assembly

Order code
V50-RO-P4-C-3
Order number
638-91060
SensoPart V50-RO-P4-C-3
Resolution
QSXGA
Field of view
C-Mount (field-of-view data depend on the lens used)
Protection
IP 65, IP 67

SensoPart V50-RO-P4-C-3 is a VISOR robotic vision sensor that gives robots eyes — part localisation and pick-point guidance for accurate pick-and-place and assembly, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓Detecting objects
✓Measurement
✓Identify
✓Positioning

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationAutomotiveElectronicsPackagingLogistics
Presence and completeness inspection
Presence and completeness inspection
Measurement and gauging
Measurement and gauging
Code & character reading (1D/2D, OCR)
Code & character reading (1D/2D, OCR)
Robot guidance and pick-and-place
Robot guidance and pick-and-place
Position correction and alignment
Position correction and alignment

Specifications

Optical data
Image chip typeMonochrome
ResolutionQSXGA
Imaging chip technologyCMOS
Field of view typeC-Mount (field-of-view data depend on the lens used)
Focus driveDependent on the objective lens selected
Functions
HardwareVISOR® XE
Max. number of jobs255
Max. number of detectors255
Result processingText, Numbers, Robotics
Pre-processingArrangement, Filter
AlignmentContour comparison, Pattern matching, Edge detection
Available detectorsPattern matching, Contour, Contour (3D), BLOB, Target mark (3D), Data code, Barcode, OCR, Brightness, Contrast, Gray level, Caliper
CalibrationBoard (measurement), Board (robotics), Hand-Eye (robotics), Base-Eye (robotics), Scaling (measurement), Point pair list (robotics)
Robotic functionsGripper clearance check, Result offset, image coordinates, Result offset 2D, Result offset 3D
Additional functionsArchiving, Image transmission, individual overlays, Multiple image acquisition, Multiple detection for contour and pattern matching detector, Multiple detection for detector contour (3D), Job checksum, Conditional executions
Electrical data
Reverse polarity protectionYes
Overvoltage protectionNo
Explanation of residual rippleEN 61000-4-17
PolarityPNP/NPN
Short circuit protectionYes
Input threshold (High)> UB-1V
Input threshold (Low)< 3V
Explanation of max. output currentmax. 100 mA on pin 12
Number of switchable IOs6
Number of outputs2
Number of inputs2
Encoder functionsNo
Type of voltage sourceThe device must be supplied by a "Class 2" power supply unit.
Inductive loadsTyp.: Relay 17 K / 2 H, pneumatic valve 1.4 K / 190 mH
- Number of pins12
Explanation of protection classFor C-mount devices, only in combination with protective tube
Mechanical data
Front panel materialPMMA
Housing materialAluminum (cast)
Connection nameSupply
Protection classIP 65, IP 67
Vibration and shock resistanceEN 60068-2-6, EN 60068-2-27
- CodingA
- ThreadM12x1
- MaterialMetal
Explanation of ambient temperature: operation< 95 % humidity, non-condensing
Explanation of ambient temperature: storage< 95 % humidity, non-condensing
Additional specifications
- TypePlug
