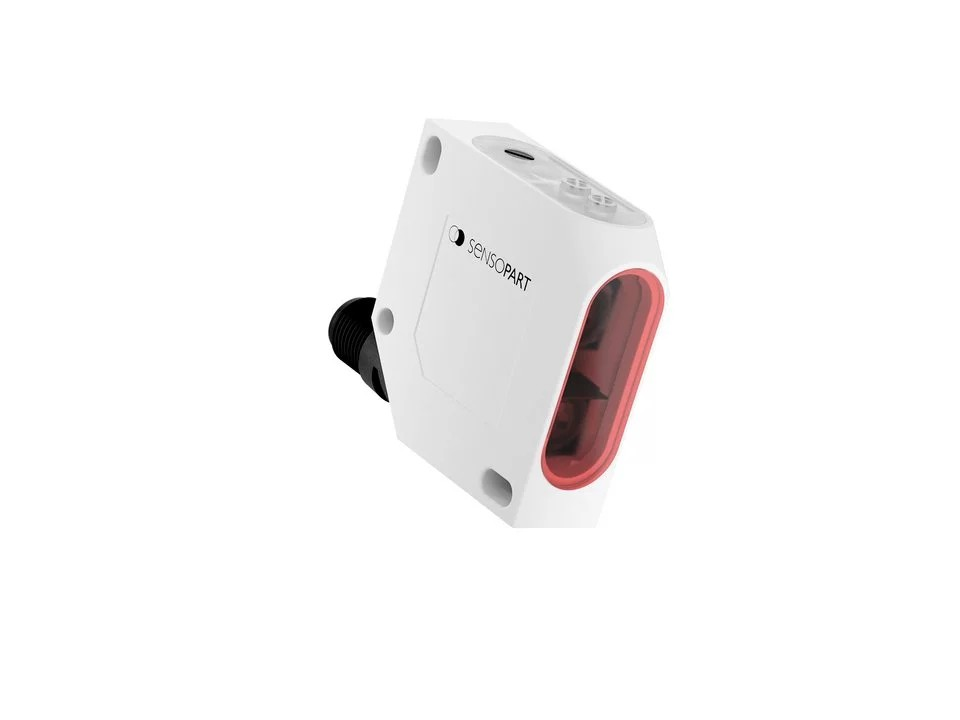

FT 10-RLA-60-PNSL-K4

https://www.ztec.dk/web/image/product.template/19031/image_1920?unique=7aab85b

Description
• Measurement value output via IO-Link
• Minimum weight
• Also suited to smallest installation spaces thanks to minimal dimensions
• Adjustable averaging times
• Laser class 1 for optimum eye safety

Product data

Linearity [mm]
0.4
Sensor principle
Distance sensor with triangulation
Series
F10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]
10
Working distance max. [mm]
70
Velocity [Hz]
1000
Interface
IO-Link
Type
Cubic
Light source
Laser, red (Class 1)
Switching output
PNP/NPN (auto detect)
Amount of swithing outputs
1
Resolution [mm]
0.01
Repeatability [mm]
0.1
Temperature range [°C]
-20 ... +50
Temperature drift [%]
0,01 mm / K
Measurement output
IO-Link
Connection type
Cable, 4-wire, 2 m
Enclosure rating
IP 67
