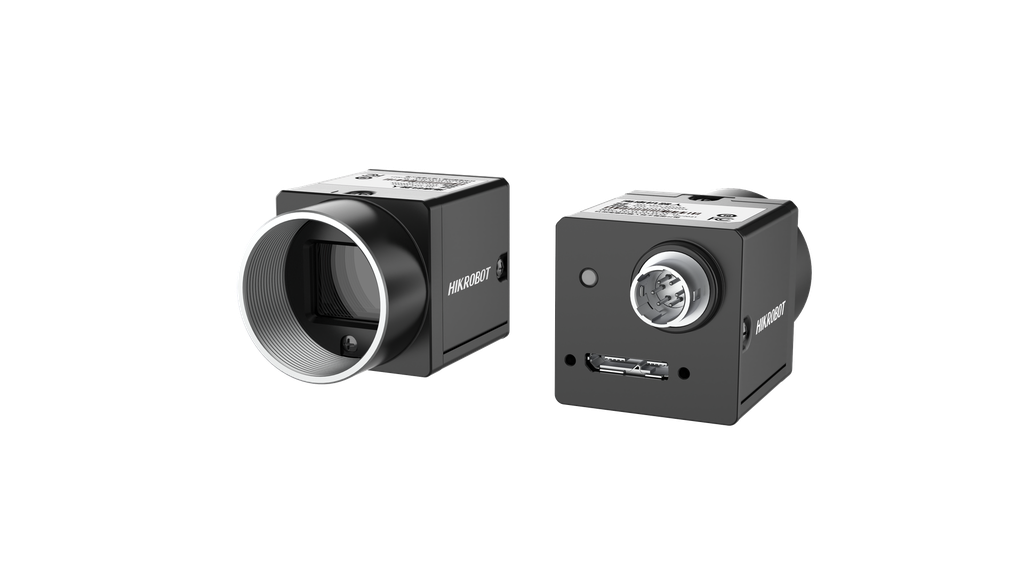

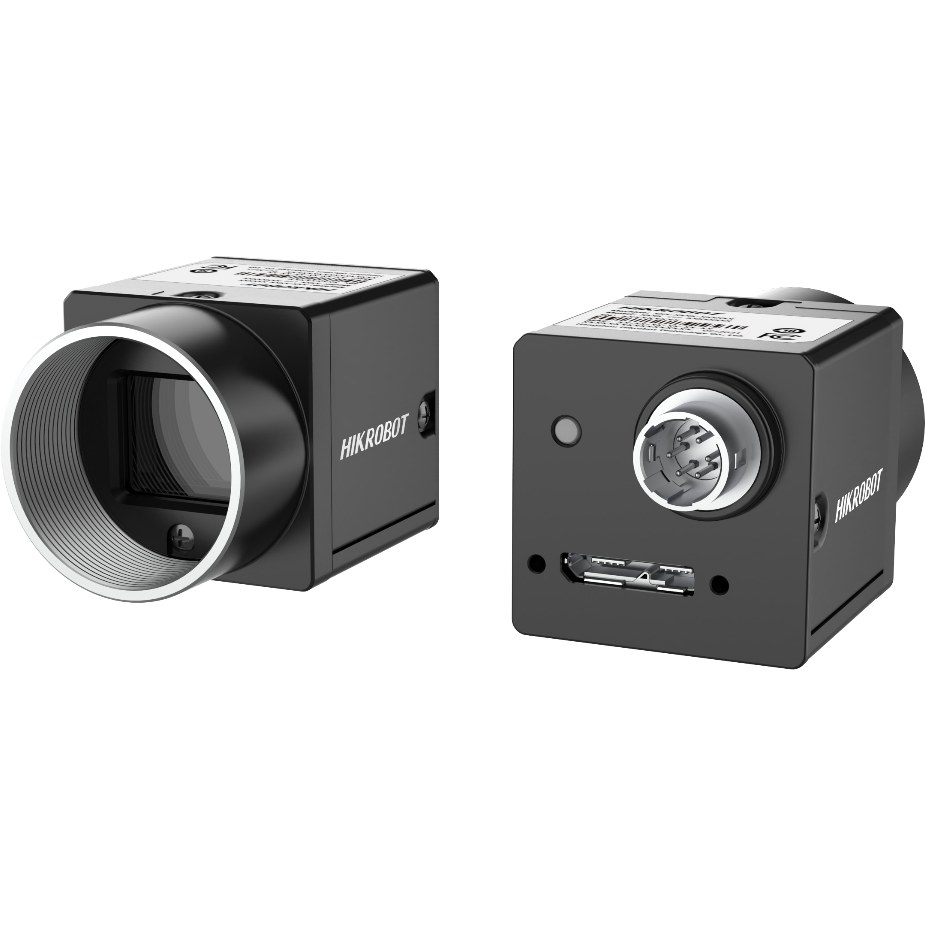

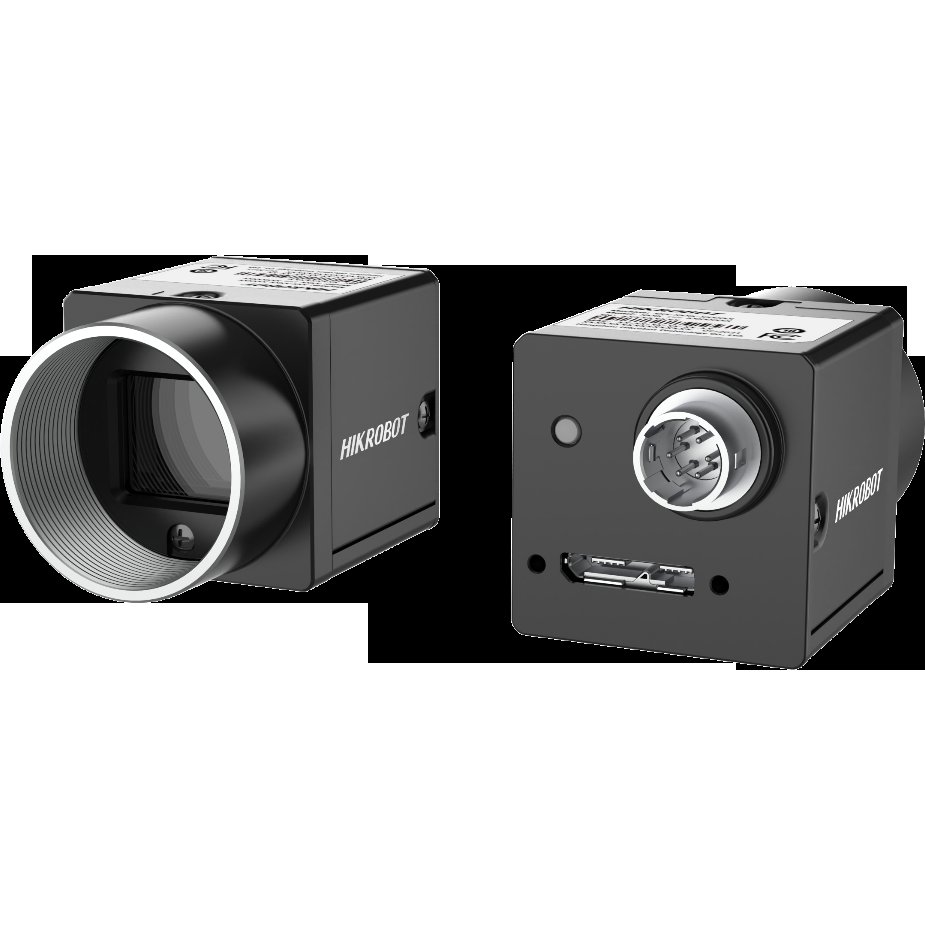

Hikrobot MV-CU120-10UC

Hikrobot MV-CU120-10UC — MV-CU120-10UM/UC camera adopts Sony® IMX226 sensor to  Mono camera: MV-CU120-10UM provide high-quality images. It uses USB3.0 interface to transmit non-  Color camera: MV-CU120-10UC compressed images in real time, and its max. frame rate can reach Applicable. Genuine product, supplied by ZTEC.

789.16 € 789.16 €
kr 5,899.41
(Tax excluded)
Contact Us
Documents
MV-CU120-10UC - Datasheet.pdf MV-CU120-10UC - Drawing.pdf MV-CU120-10UC - User Manual.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-CU120-10UC

CU Area Scan Camera

Order code
MV-CU120-10UC
Order number
306302026
Resolution
4024 × 3036
Frame rate
29.2 fps @4024 × 3036 Bayer RG 8
Interface
USB3.0, compatible with USB2.0
Pixel size
1.85 μm × 1.85 μm

Hikrobot MV-CU120-10UC is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts brand new design to reduce power consumption.
✓Supports auto or manual adjustment of gain, exposure time, manual adjustment of LUT, Gamma correction, etc.
✓Supports customized ROI, horizontal and vertical reverse image output.
✓Adopts compact design for small spatial installation.
✓Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: Semiconductor
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS, rolling shutter
Sensor modelSony® IMX226
Pixel size1.85 μm × 1.85 μm
Sensor size1/1.7"
Resolution4024 × 3036
Max. frame rate29.2 fps @4024 × 3036 Bayer RG 8
Dynamic range69.4 dB
SNR40.3 dB
Gain0 dB to 24 dB
Exposure time20 μs to 0.5 sec
Exposure modeOff/Once/Continuous exposure mode, supports Global Reset and Rolling
Mono/colorColor
Pixel formatBayer RG 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical features
Data interfaceUSB3.0, compatible with USB2.0
Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC, supports USB3.0 power supply
Power consumptionTyp. 2.0 W@5 VDC (USB3.0 provides power supply)
Mechanical
Lens mountC-mount
Dimension29 mm × 29 mm × 30 mm (1.1" × 1.1" × 1.2")
WeightApprox. 76 g (0.2 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: 0 °C to 50 °C (32 °F to 122 °F) Storage temperature: -30 °C to 70 °C (-22 °F to 158 °F)
Humidity20% to 80% RH, non-condensing
General
Client softwareMVS or third-party software meeting with USB3 Vision Protocol
Operating system32/64-bit Windows XP/7/10, 32/64-bit Linux and 64-bit MacOS
CompatibilityUSB3 Vision, GenlCam
CertificationCE, RoHS, KC
Technical support
We help with selection, integration and operation
Official Hikrobot partner
Genuine, CE-marked products with full warranty
Full range & fast quotes
We source the entire Hikrobot range, incl. special items

Need advice or a quote?

ZTEC is your Hikrobot partner — we find the right configuration for your application.
