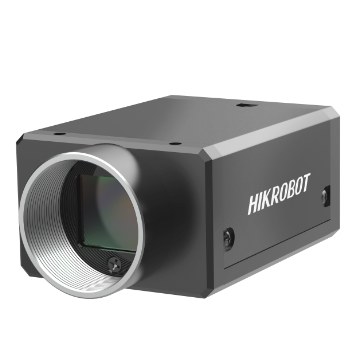

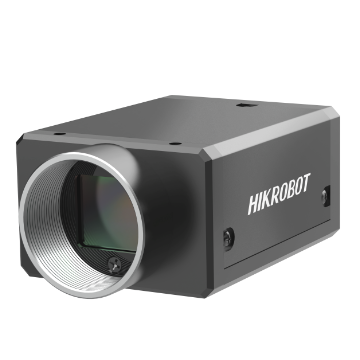

Hikrobot MV-CH140-60UM

CH Area Scan Camera

Order code
MV-CH140-60UM
Order number
306302437
Resolution
4708 × 2824
Frame rate
27 fps @ 4708 × 2824 Mono 8
Interface
USB 3.0, compatible with USB 2.0
Pixel size
3 μm × 3 μm

Hikrobot MV-CH140-60UM is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Supports auto or manual adjustment of gain, exposure time, Gamma correction, LUT correction, etc.
✓Supports customized ROI, horizontal and vertical reverse image output.
✓Supports hardware trigger, software trigger, free run.
✓Compatible with USB3 Vision Protocol, GenlCam Standard, and the third-party software based on the protocol and standard.

Applications & Industries

What you can solve with this product:

Typical industries: Semiconductor
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS, global shutter
Sensor modelStacked BSI
Pixel size3 μm × 3 μm
Sensor size1"
Resolution4708 × 2824
Max. frame rate27 fps @ 4708 × 2824 Mono 8
Dynamic range56.9 dB
SNR41.9 dB
Gain0 dB to 24 dB
Exposure time80 μs to 10 sec
Exposure modeOff/Once/Continuous exposure mode
Mono/colorMono
Pixel formatMono 8/10/10Packed/12/12Packed
BinningSupports 1 × 1, 2 × 2, 4 × 4
DecimationSupports 1 × 1, 2 × 2, 4 × 4
Reverse imageSupports horizontal and vertical reverse image output
Electrical features
Data interfaceUSB 3.0, compatible with USB 2.0

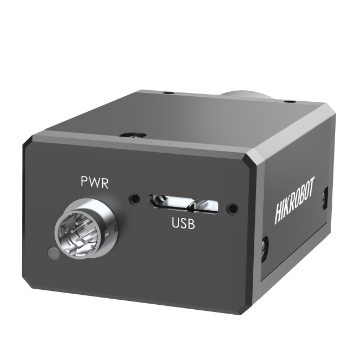

Digital I/O6-pin P7 connector provides power and I/O, including opto-isolated input × 1 (Line 0), opto-isolated output × 1 (Line 1), bi-directional non-isolated I/O × 1 (Line 2).
Power supply9 VDC to 24 VDC, supports USB 3.0 power supply
Power consumptionTyp. 4.0 W @ 5 VDC (USB 3.0 provides power supply)
Mechanical
Lens mountC-mount
Dimension29 mm × 44 mm × 59 mm (1.1" × 1.7" × 2.3")
WeightApprox. 113 g (0.2 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –10 °C to 50 °C (14 °F to 122 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity20% RH to 95% RH (no condensation)
General
Client softwareMVS or third-party software meeting with USB3 Vision Protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11, and 32/64-bit Linux
CompatibilityUSB3 Vision, GenICam
CertificationCE, RoHS
