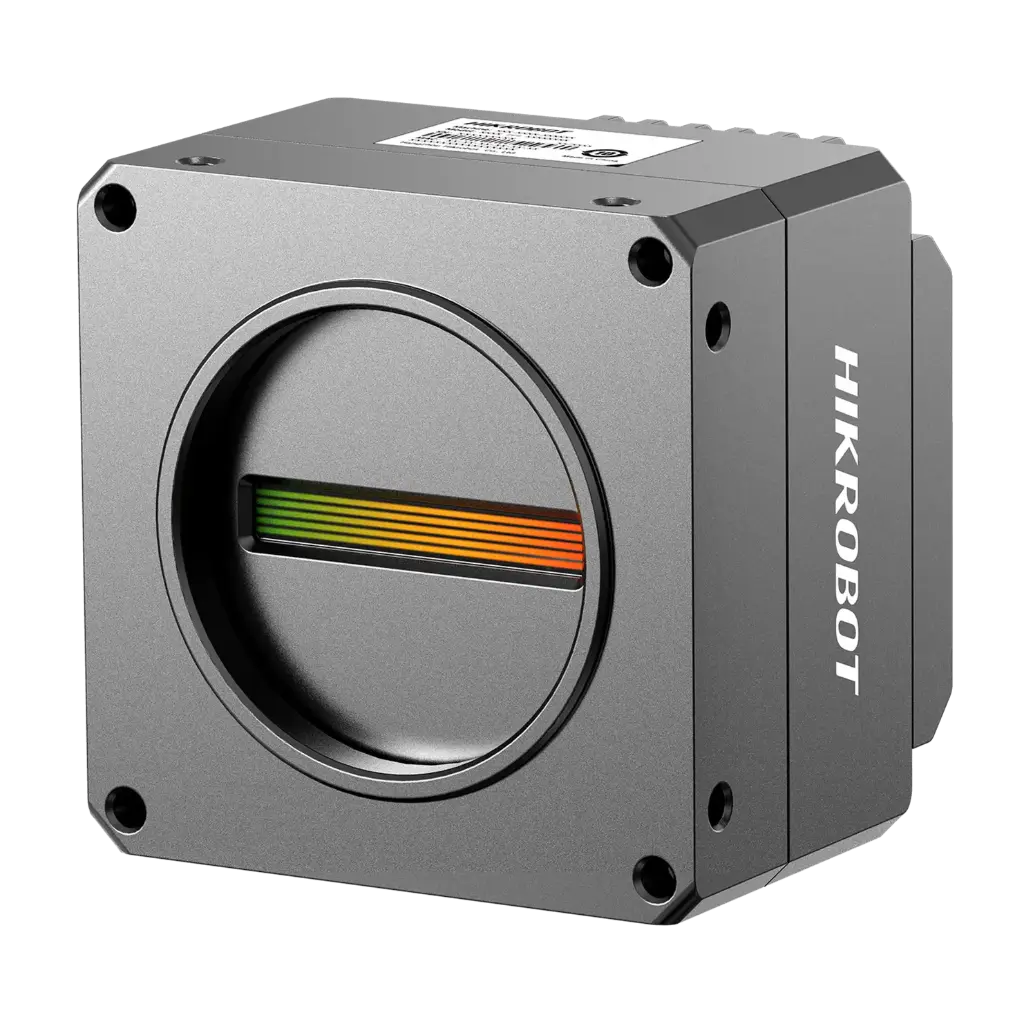

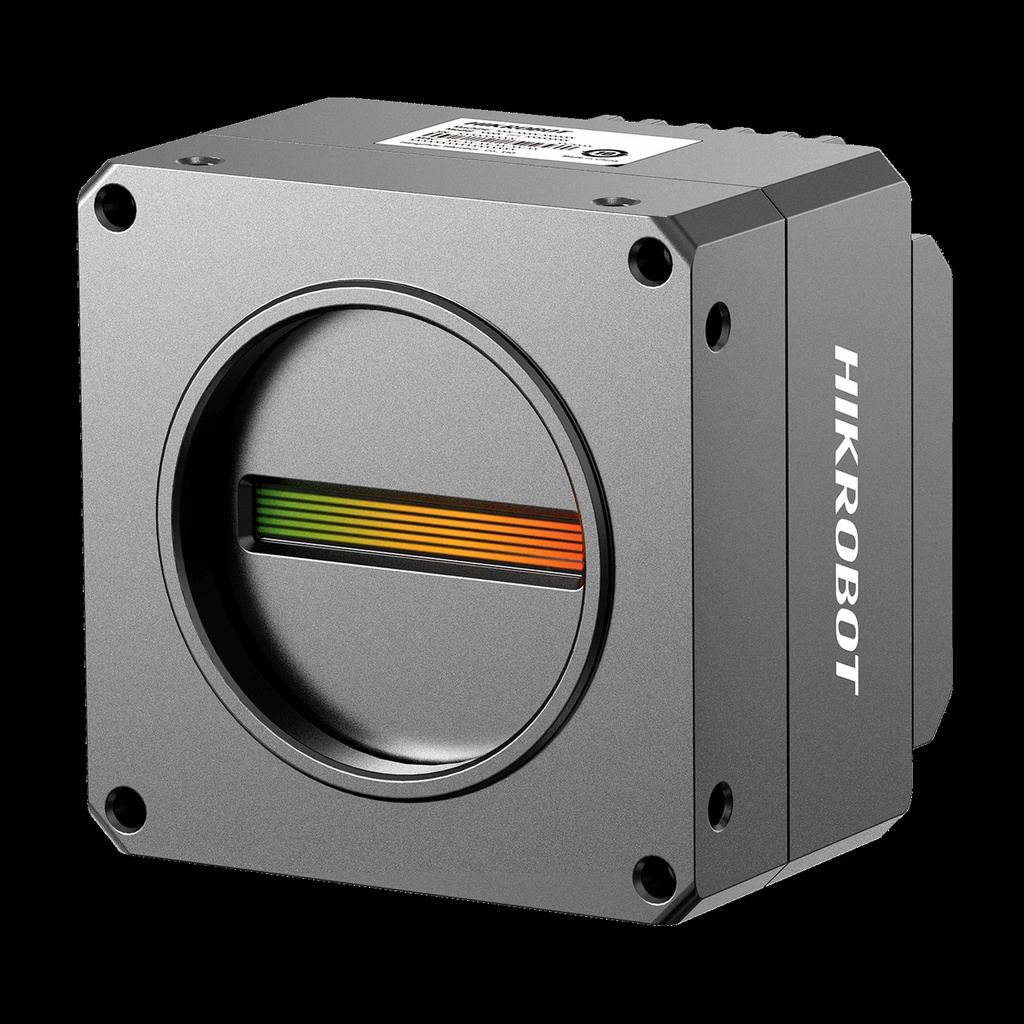

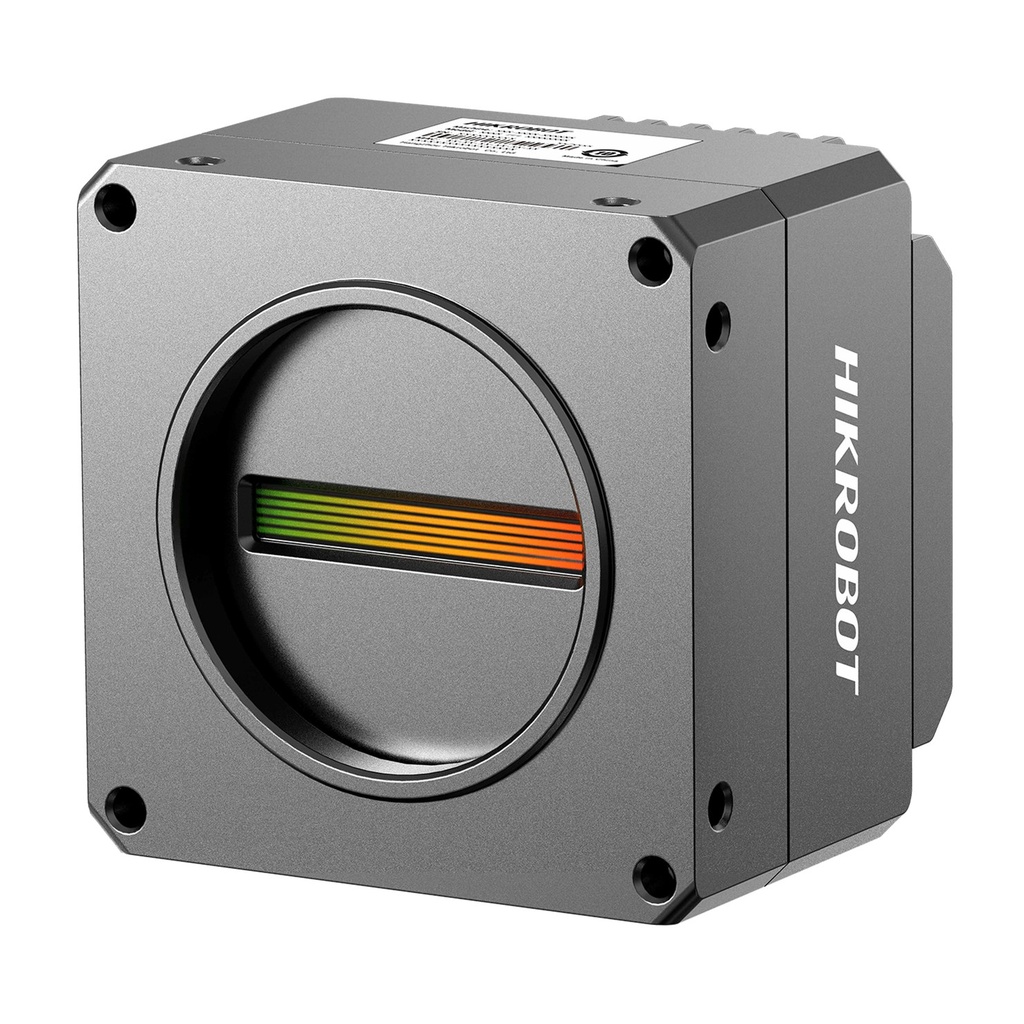

Hikrobot MV-CL044-91NC

CL Line Scan Camera

Order code
MV-CL044-91NC
Order number
306302875
Resolution
4096 ×3
Pixel size
7 μm × 7 μm

Hikrobot MV-CL044-91NC is an industrial machine-vision camera for inspection, measurement and positioning in automated production, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Adopts 2.5 GigE interface to transmit data, and supports max. line rate of 75.3 kHz and peak value of 100 kHz.
✓Supports RGB true color image output.
✓Supports ISP image functions and manual adjustment of Gamma correction, FFC, LUT, black level, etc.
✓Adopts bi-directional I/O hardware design.
✓Compact design and flexible installation.
✓Compatible with GigE Vision V2.0 and GenlCam standard.

Applications & Industries

What you can solve with this product:

Typical industries: Consumer electronicsNew energyTextileMedical
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Performance
Sensor typeCMOS
Pixel size7 μm × 7 μm
Resolution4096 ×3
Image modeSupports 1-Line
Max. line rateFull resolution: 75.3 kHz @ Mono 8/Bayer RG 8, 25.1 kHz @ RGB 8/BGR 8, 37.7 kHz @ Bayer RG 10 Line rate after ROI: Max. 100 kHz (3080 P and below)
Dynamic range61.3 dB
SNR40.3 dB
Gain1.0 ×, 2.0 ×, 3.0 ×, 4.0 ×
Exposure time1 μs to 10 ms
Exposure modeOff/Once/Continuous exposure mode, and supports trigger-width exposure
MonoColor
Pixel formatRGB 8, BGR 8 Bayer RG 8/10 Mono 8
BinningSupports 1 × 1, 1 × 2, 1 × 4, 2 × 1, 2 × 2, 2 × 4, 4 × 1, 4 × 2, 4 × 4
Reverse imageNot supported
Trigger modeExternal trigger, internal trigger
External trigger modeLine trigger, frame trigger, line + frame trigger
Electrical feature
Data interface2.5 Gigabit Ethernet (2500 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s) and Fast Ethernet (100 Mbit/s)

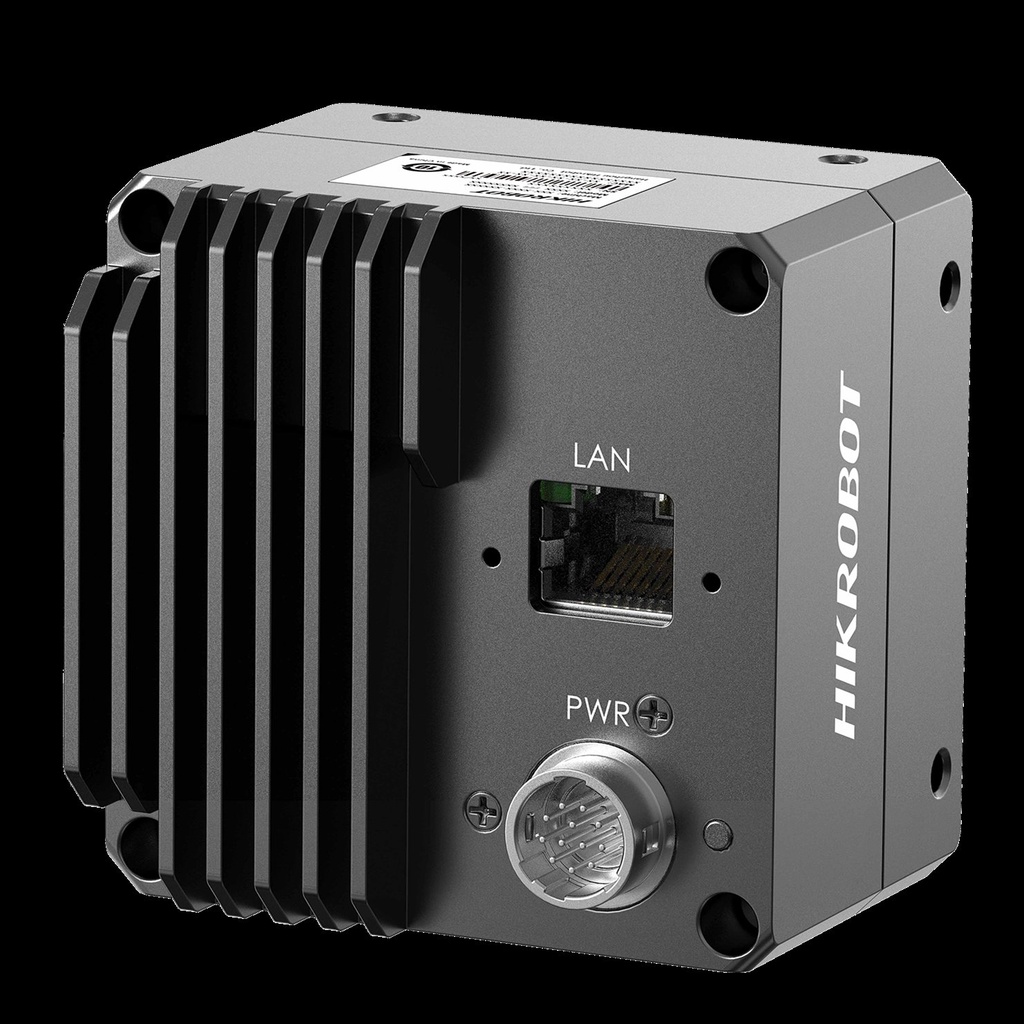

Digital I/O12-pin P10 connector provides power and I/O: bi-directional configurable I/O × 4 (Line 0/1/3/4) and support single-ended/differential I/O signal
Power supply12 VDC to 24 VDC, supports PoE
Power consumptionTyp. 7.2 W @ 12 VDC
Mechanical
Lens mountM42*1.0, flange back length 12 mm Connecting to F-mount, C-mount, and other lenses via adapter ring
Dimension62 mm × 62 mm × 46.1 mm (2.4" × 2.4" × 1.8")
WeightApprox. 260 g (0.6 lb.)
Ingress protectionIP40 (under proper lens installation and wiring)
TemperatureWorking temperature: –20 °C to 55 °C (–4 °F to 131 °F) Storage temperature: –30 °C to 80 °C (–22 °F to 176 °F)
Humidity20% RH to 80% RH (no condensation)
General
Client softwareMVS or the third-party software meeting with GigE Vision protocol
Operating system32/64-bit Windows 7/10, 64-bit Windows 11 and 32/64-bit Linux
CompatibilityGigE Vision V2.0, GenICam
CertificationCE, RoHS, KC
