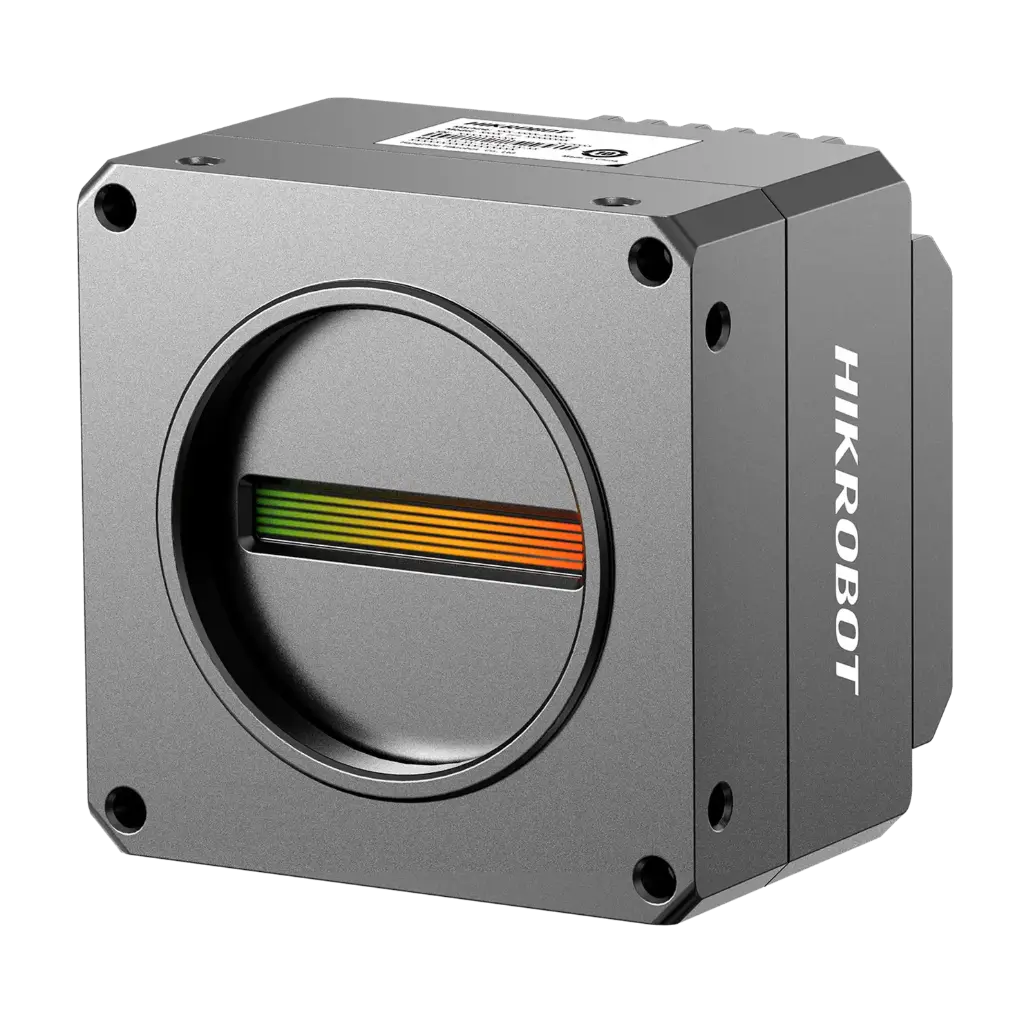

Hikrobot MV-CL084-B1NC
CL Series line scan camera with M72 *0.75, flange focal length 12 mm, connecting to F-mount, C-mount, and other lenses via adapter ring, 8192 × 3 Resolution, Color, and with 2.5 Gigabit Ethernet (2500 Mbit/s), compatible with Gigabit Ethernet (1000 Mbit/s) and Fast Ethernet (100 Mbit/s). CMOS sensor type.
The MV-CL084-B1NC in the CL Series has a pixel size of 7 µm × 7 µm.
The max line rate in Full resolution: 37.6 kHz @ Mono 8 (1-Line, 2-TDI), 34 kHz @ Mono 8 (4-TDI), 18.8 kHz @ Mono 10/12 (1-Line, 2-TDI, 4-TDI) Line rate after ROI: Max. 90 kHz @ Mono 8 & 1-Line (3424 P and below) Peak value: 75.6 kHz @ Mono 8 & 1-Line. The model is CE-certified.
The MV-CL084-B1NC in the CL Series has a pixel size of 7 µm × 7 µm.
The max line rate in Full resolution: 37.6 kHz @ Mono 8 (1-Line, 2-TDI), 34 kHz @ Mono 8 (4-TDI), 18.8 kHz @ Mono 10/12 (1-Line, 2-TDI, 4-TDI) Line rate after ROI: Max. 90 kHz @ Mono 8 & 1-Line (3424 P and below) Peak value: 75.6 kHz @ Mono 8 & 1-Line. The model is CE-certified.
