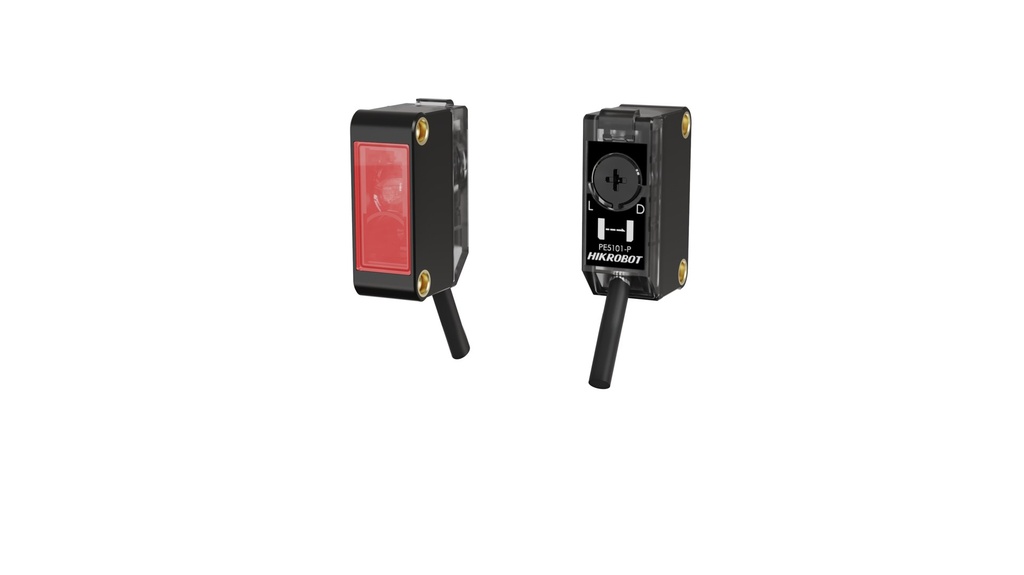

Hikrobot MV-PE5101

Hikrobot MV-PE5101 — MV-PE5101/-P through-beam photoelectric Transmitter: sensor adopts specialized chips, offering 12 7 advantages like simplicity, reliability, ease of .0 2-M3 0.5 alignment, and fast response. It supports light-on/dark-on switch. 6 4. Genuine product, supplied by ZTEC.

0.00 € 0.00 €
kr 0.00
(Tax excluded)
Contact Us
Documents
MV-PE5101 - Datasheet.pdf MV-PE5101 - Drawing.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-PE5101

Photoelectric Sensor

Order code
MV-PE5101
Order number
316300072
Repeatability
≤ 0.5 mm

Hikrobot MV-PE5101 is an industrial photoelectric sensor for reliable, non-contact object and presence detection, supplied and supported by ZTEC as your Hikrobot partner in the Nordics and Baltics.

Key features

✓Provides a large red spot for ease of alignment.
✓Remains unaffected if exposed to direct sunlight with strong anti-interference capability.
✓Requires no adjustment with ease of use.

Applications & Industries

What you can solve with this product:

Typical industries: Logistics
Object and presence detection
Object and presence detection on the line
Counting, positioning and end-of-travel detection
Counting, positioning and end-of-travel detection
Reliable, fast switching
Reliable, fast switching in industrial environments

Specifications

Performance
Detecting distance15 m
Sensing targetOpaque object above Φ15 mm
OutputNPN-NO/NC (supports light-on/dark-on switch)
Light sourceRed LED 660 nm
Response time≤ 500 μs
Repeatability (perpendicular to sensing axis)≤ 0.5 mm
Electrical feature
Supply voltage12 VDC to 24 VDC ± 10%, including Ripple (P-P) 10% or less
Residual voltage≤ 2 VDC
Operating current≤ 20 mA
Max. sink/source current≤ 100 mA
Circuit protectionReverse polarity protection, overcurrent protection, and overvoltage protection
Insulation resistance20 MΩ or more (between the terminal block for power supply and the housing)
Withstand voltage1000 VAC, 1 min (between the terminal block for power supply and the housing)
Mechanical
Dimension20 mm × 12 mm × 31.6 mm (0.8" × 0.5" × 1.2")
WeightTransmitter: approx. 45 g (0.1 lb.) (including cable) Receiver: approx. 45 g (0.1 lb.) (including cable)
TemperatureWorking temperature: –25 °C to 55 °C (–13 °F to 131 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity35% RH to 85% RH
Ambient illuminationSunlight: < 10000 lux Incandescent lamp: < 3000 lux
Ingress protectionIP67
MaterialHousing: polycarbonate Lens: acrylic
IndicatorOperation indicator: orange (receiver) Stability indicator: green (receiver) Power indicator: orange (transmitter)
Connecting methodCable lead-out (standard length: 2 m, 78.7")
Vibration resistance10 Hz to 500 Hz, double amplitude 1.5 mm (0.1"), 2 hours in each of the X, Y, and Z directions
Shock resistance500 m/s2, 3 times in each of the X, Y, and Z directions
General
CertificationCE, RoHS
