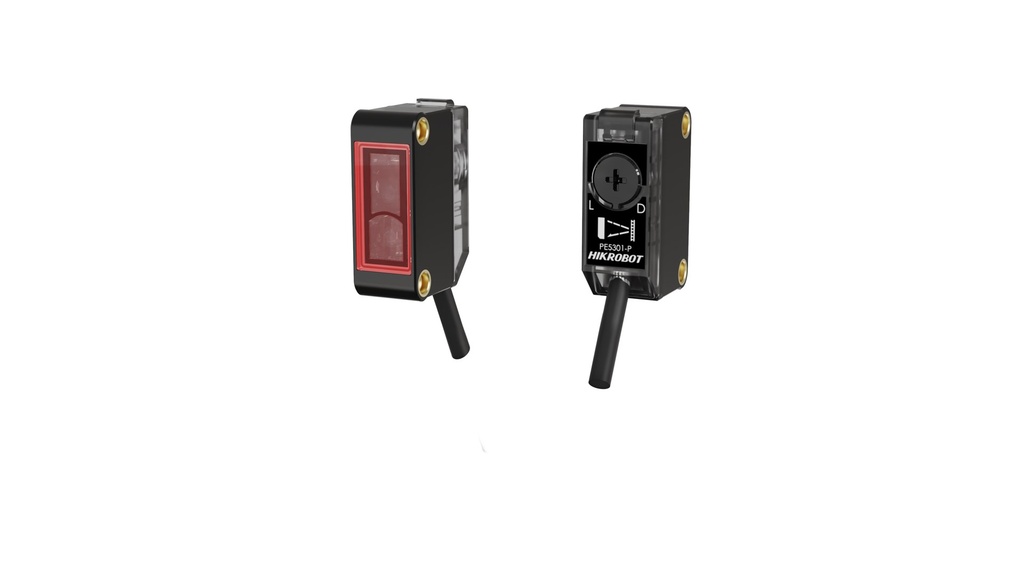

Hikrobot MV-PE5301

Hikrobot MV-PE5301 — MV-PE5301/-P photoelectric sensor adopts specialized chips, offering  PNP type: MV-PE5301-P advantages like simplicity, reliability, and fast response. It contains  NPN type: MV-PE5301 polarizing filters and supports light-on/dark-on switch. Applicable. Genuine Hikrobot product.

0.00 € 0.00 €
kr 0.00
(Tax excluded)
Contact Us
Documents
MV-PE5301 - Datasheet.pdf MV-PE5301 - Drawing.pdf
OFFICIAL HIKROBOT PARTNERCE · EU compliant

Hikrobot MV-PE5301

Photoelectric Sensor

Order code
MV-PE5301
Order number
316300076
Repeatability
≤ 0.5 mm

Hikrobot MV-PE5301 is an industrial photoelectric sensor for reliable, non-contact object and presence detection.

Key features

✓Provides a clear red spot, and contains polarizing filters.
✓Adapts to complex light environment with anti-interference capability.
✓Immune to interference from highly reflective objects.

Applications & Industries

What you can solve with this product:

Typical industries: Logistics
Object and presence detection
Object and presence detection on the line
Counting, positioning and end-of-travel detection
Counting, positioning and end-of-travel detection
Reliable, fast switching
Reliable, fast switching in industrial environments

Specifications

Performance
Detecting distance0.1 m to 4 m
Sensing targetOpaque object, semi-transparent object, and mirror above Φ50 mm
OutputNPN (supports light-on/dark-on switch)
Light sourceRed LED 650 nm
Response time≤ 500 μs
Repeatability (perpendicular to sensing axis)≤ 0.5 mm
Electrical feature
Supply voltage12 VDC to 24 VDC ± 10%, including Ripple (P-P) 10% or less
Residual voltage≤ 2 VDC
Operating current≤ 20 mA
Max. sink/source current≤ 100 mA
Circuit protectionReverse polarity protection, overcurrent protection, and overvoltage protection
Insulation resistance20 MΩ or more (between the terminal block for power supply and the housing)
Withstand voltage1000 VAC, 1 min (between the terminal block for power supply and the housing)
Mechanical
Dimension20 mm × 12 mm × 31.6 mm (0.8" × 0.5" × 1.2")
WeightApprox. 45 g (0.1 lb.) (including cable)
TemperatureWorking temperature: –25 °C to 55 °C (–13 °F to 131 °F) Storage temperature: –30 °C to 70 °C (–22 °F to 158 °F)
Humidity35% RH to 85% RH
Ambient illuminationSunlight: < 10000 lux Incandescent lamp: < 3000 lux
Ingress protectionIP67
MaterialHousing: polycarbonate Lens: acrylic
IndicatorOperation indicator: orange Stability indicator: green
Connecting methodCable lead-out (standard length: 2 m, 78.7")
Vibration resistance10 Hz to 500 Hz, double amplitude 1.5 mm (0.1"), 2 hours in each of the X, Y, and Z directions
Shock resistance500 m/s2, 3 times in each of the X, Y, and Z directions
General
CertificationCE, RoHS

Downloads

Datasheets, drawings and manuals — all in one place.

MV-PE5301 - Datasheet.pdfPDF · 729.0 KB
MV-PE5301 - Drawing.pdfPDF · 183.1 KB
