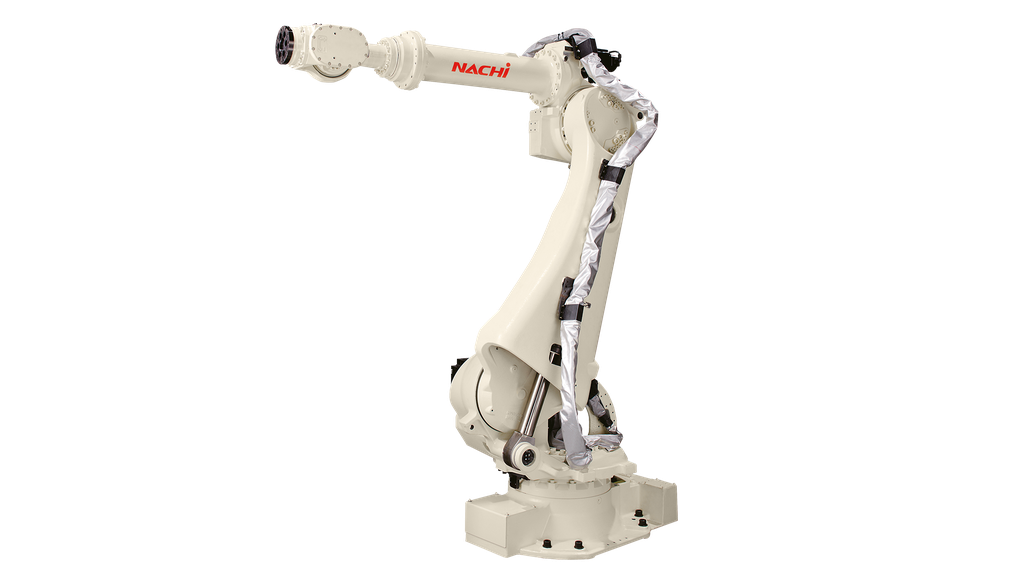

NACHI SRA166
Controller: FD20
Wire Harness : 10 (m)
TP cable: 8 (m)
CN10 Cable: 10 (m)
Application Cable : inc.
Zeroing Jig inc.
Build in Valves: - (pcs)
I/O Board (32/32)
Brake : inc.
Release Kit: inc.
RMU: inc.
Fieldbus: ProfiNet or EtherNet/IP: note in the ordre line.
Robot Monitoring Unit (RMU)
Comminucation Protocol Standard: ProfiNet (Alternative: EtherNet/IP)
Build in Valves: 4 (pcs)
I/O Board (32/32): inc.
Controller Type:
FD20 controller
Technical Description:
Axis: 6
Payload: 166 kg
Reach J1-J5: 2654 mm
Repeatability: 0.1 mm
Wire Harness : 10 (m)
TP cable: 8 (m)
CN10 Cable: 10 (m)
Application Cable : inc.
Zeroing Jig inc.
Brake : inc.
Release Kit: inc.
Fieldbus: ProfiNet or EtherNet/IP: note in the ordre line.
