SensoPart FT 50 RH-NSVL4

A photoelectric sensor for reliable object detection in factory automation

Order code
FT 50 RH-NSVL4
Order number
572-51007
SensoPart FT 50 RH-NSVL4
Working distance
30
Output
NPN
Connection
Plug M12, 4-pin
Protection
IP 67

SensoPart FT 50 RH-NSVL4 is a photoelectric sensor for reliable object detection in factory automation, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓Precisely adjustable background suppression
✓Simple scanning distance adjustment thanks to indicator scale
✓Optional contamination output
✓Plug connector rotatable

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Optical data
Spot size [mm]8 x 8
Working distance min. [mm]30
Working distance max. [mm]300
Light sourceLED, red
Electrical data
Switching outputNPN
Velocity [Hz]1000
Functions
AdjustmentPotentiometer
Mechanical data
Enclosure ratingIP 67

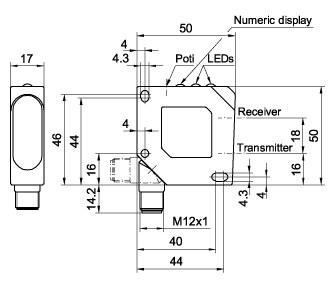

SeriesF50 (50 x 50 x 17 mm)
Temperature range [°C]-20 ... +60
Connection typePlug M12, 4-pin
Additional specifications
Sensor principlePhotoelectric diffuse sensor with Background Suppression
