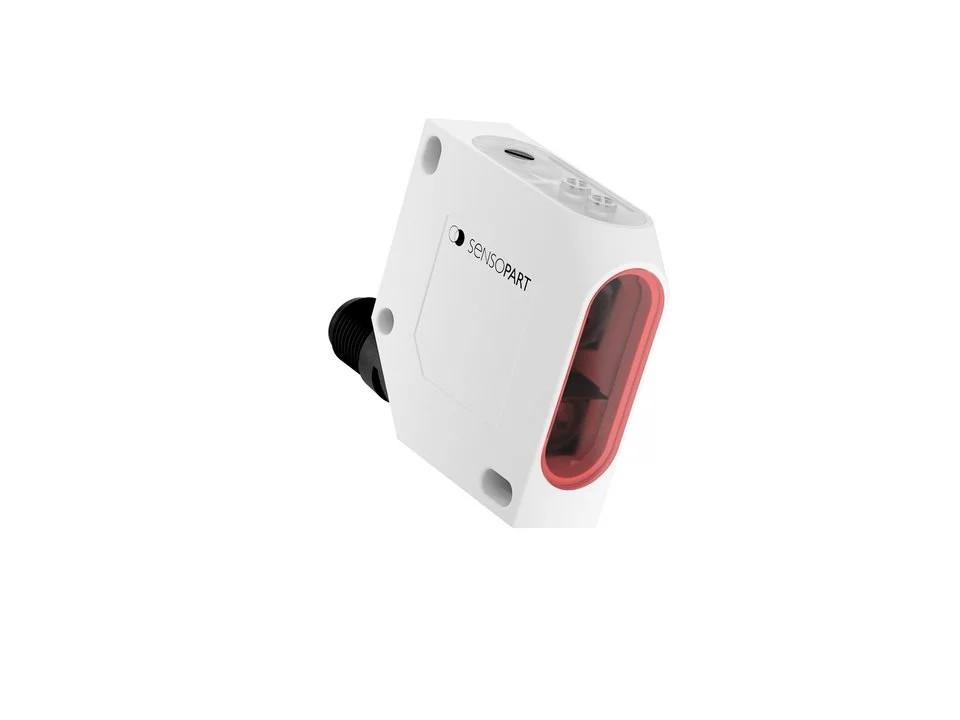

SensoPart FT 50 RLHD-PAK4

A photoelectric sensor for reliable object detection in factory automation

Order code
FT 50 RLHD-PAK4
Order number
572-51064
SensoPart FT 50 RLHD-PAK4
Working distance
50
Output
PNP/NPN, antivalent
Connection
Cable, 4-wire, 3 m
Protection
IP 67

SensoPart FT 50 RLHD-PAK4 is a photoelectric sensor for reliable object detection in factory automation, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓Precise small part detection even at long scanning distances of up to 300 mm
✓Very small, easily visible laser light spot
✓Precisely adjustable background suppression
✓High switching frequency of 2500 Hz

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Optical data
Working distance min. [mm]50
Working distance max. [mm]300
Light sourceLaser, red (Class 1)
Electrical data
Switching outputPNP/NPN, antivalent
Velocity [Hz]2500
Functions
AdjustmentPotentiometer
Mechanical data
Enclosure ratingIP 67
SeriesF50 (50 x 50 x 17 mm)
Temperature range [°C]-20 ... +45
Connection typeCable, 4-wire, 3 m
Additional specifications
Sensor principlePhotoelectric diffuse sensor with Background Suppression
