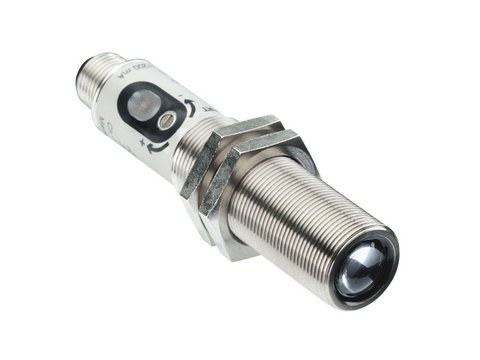

SensoPart FLE 18-L4-15

A through-beam photoelectric sensor (emitter + receiver) for the longest ranges and reliable detection of small or fast-moving objects

Order code
FLE 18-L4-15
Order number
580-51411
SensoPart FLE 18-L4-15
Working distance
0
Output
PNP
Connection
Plug M12, 4-pin
Protection
IP65

SensoPart FLE 18-L4-15 is a through-beam photoelectric sensor (emitter + receiver) for the longest ranges and reliable detection of small or fast-moving objects, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

Operating range: 50 m
Red light laser, 650 nm
Transmitter beam can be focused according to application
Accuracy adjustable via beam spot size
Smallest detectable part: 0.03 mm
Switching frequency, 6000 Hz
Metal M18 threaded sleeve

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Optical data
Working distance min. [mm]0
Working distance max. [mm]50000
Light sourceLaser, red (Class 1)
Electrical data
Switching outputPNP
Velocity [Hz]6000
Functions
AdjustmentPotentiometer
Mechanical data
Enclosure ratingIP65
SeriesM18
Temperature range [°C]-10 ... +50
Connection typePlug M12, 4-pin
Additional specifications
Sensor principlePhotoelectric through-beam sensor

Accessories and compatible hardware

Complete your solution — compatible mountings, cables and optics.

Recommended accessories
