SENSOPART FT 10-RF2-NS-K4

Name: SENSOPART FT 10-RF2-NS-K4
Price: 146.49 EUR
Availability: InStock

SensoPart FT 10-RF2-NS-K4 — 6…30mm, red light, bgs, fixed focus, NPN, cable 2m 4-wire. Genuine product, supplied and supported by ZTEC.

146.49 €

kr 1,095.04

(Tax excluded)

Documents

SENSOPART FT 10-RF2-NS-K4 - Brochure 2.pdf SENSOPART FT 10-RF2-NS-K4 - Brochure.pdf SENSOPART FT 10-RF2-NS-K4 - CAD.zip SENSOPART FT 10-RF2-NS-K4 - Datasheet.pdf SENSOPART FT 10-RF2-NS-K4 - Manual.pdf

Overview Applications Specifications Downloads Accessories

OFFICIAL SENSOPART PARTNER · ZTECCE · EU compliant

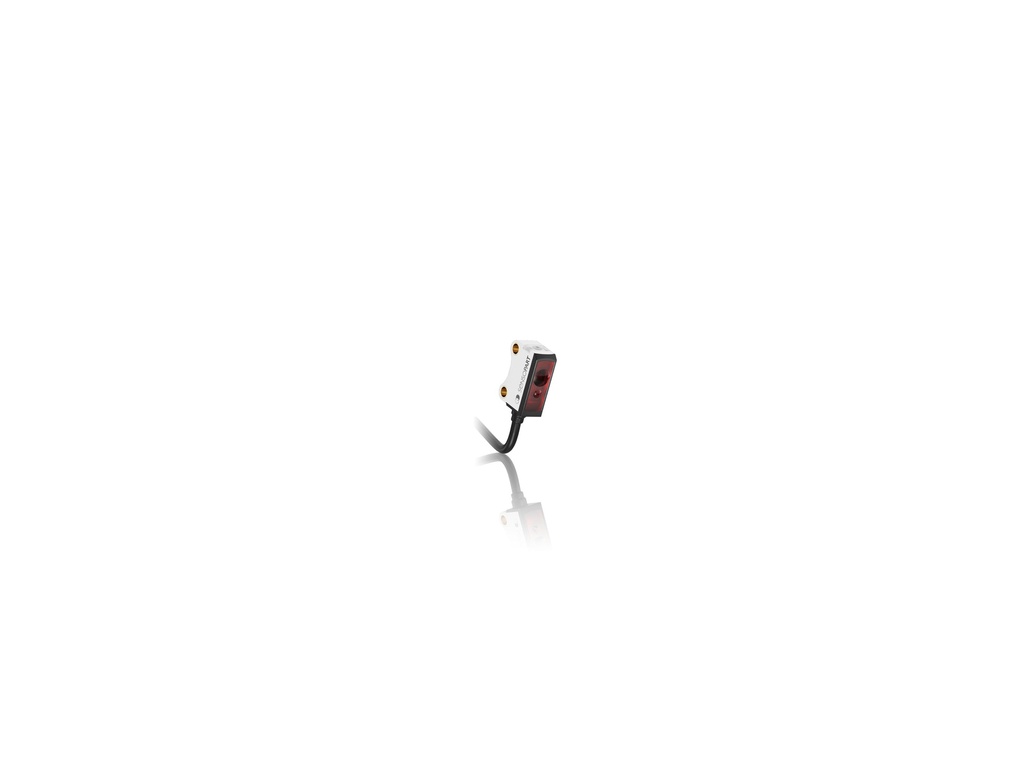

SensoPart FT 10-RF2-NS-K4

A photoelectric proximity sensor with background suppression — it detects an object at a defined range and reliably ignores whatever is behind it

Order code

FT 10-RF2-NS-K4

Order number

600-11017

Working distance

Output

NPN

Connection

Cable, 4-wire, 2 m

Protection

IP 67

SensoPart FT 10-RF2-NS-K4 is a photoelectric proximity sensor with background suppression — it detects an object at a defined range and reliably ignores whatever is behind it, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓Sub-miniature sensor with precise fixed background suppression

✓Economical multi-purpose sensor

✓Reliable switching behaviour even with varying object surfaces and colors

✓Tamper-proof sensor design – no misalignment possible

✓Simple mounting and adjustment through innovative dovetail clamp mounting

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage

Presence and completeness inspection

Measurement and positioning

Surface and print/label inspection

Robot guidance and pick-and-place

Specifications

Optical data

Working distance min. [mm]2

Working distance max. [mm]30

Light sourceLED, red

Electrical data

Switching outputNPN

Velocity [Hz]1000

Functions

AdjustmentControl input

Mechanical data

Enclosure ratingIP 67

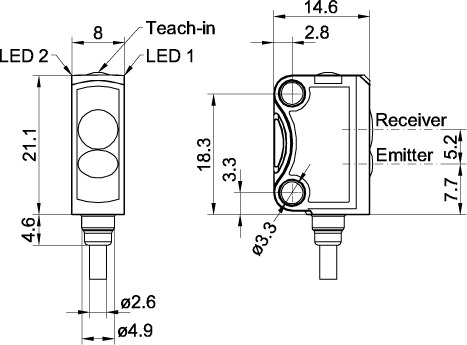

SeriesF10 (21,1 x 14,6 x 8 mm)

Temperature range [°C]-20 ... +60

Connection typeCable, 4-wire, 2 m

Additional specifications

Sensor principlePhotoelectric diffuse sensor with Background Suppression

Downloads

Datasheets, manuals and drawings — all in one place.

SENSOPART FT 10-RF2-NS-K4 - Datasheet.pdfPDF · 218.4 KB

SENSOPART FT 10-RF2-NS-K4 - Manual.pdfPDF · 1.3 MB

SENSOPART FT 10-RF2-NS-K4 - Brochure 2.pdfPDF · 5.0 MB

SENSOPART FT 10-RF2-NS-K4 - Brochure.pdfPDF · 5.0 MB

SENSOPART FT 10-RF2-NS-K4 - CAD.zipCAD (ZIP) · 2.4 MB
