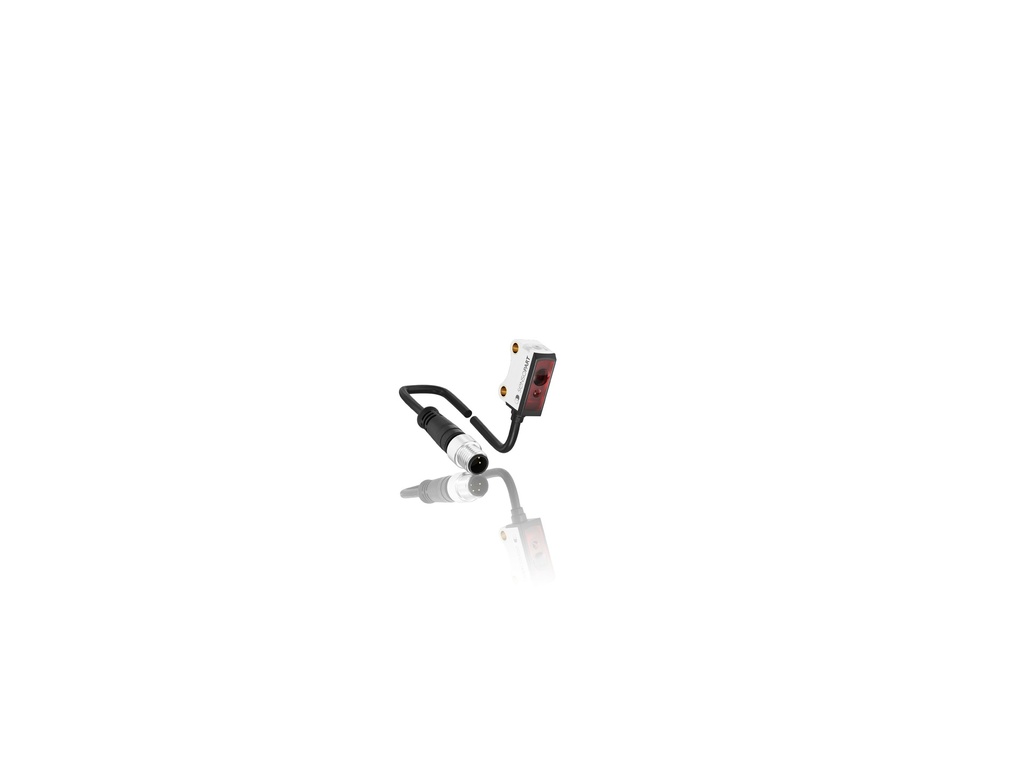

SENSOPART FT 10-RH-PNSL-KM4

SensoPart FT 10-RH-PNSL-KM4 — Photoelectric diffuse sensor with background suppression, 10 … 70 mm, red light, BGS, teach-in, Auto-Detect, pigtail 200 mm wit. Genuine product, supplied and supported by ZTEC.

144.48 € 144.48 €
kr 1,080.09
(Tax excluded)
Contact Us
Documents
SENSOPART FT 10-RH-PNSL-KM4 - Brochure 2.pdf SENSOPART FT 10-RH-PNSL-KM4 - Brochure.pdf SENSOPART FT 10-RH-PNSL-KM4 - CAD.zip SENSOPART FT 10-RH-PNSL-KM4 - Datasheet 2.pdf SENSOPART FT 10-RH-PNSL-KM4 - Datasheet.pdf SENSOPART FT 10-RH-PNSL-KM4 - IODD.pdf SENSOPART FT 10-RH-PNSL-KM4 - Manual.pdf
OFFICIAL SENSOPART PARTNER · ZTECCE · EU compliant

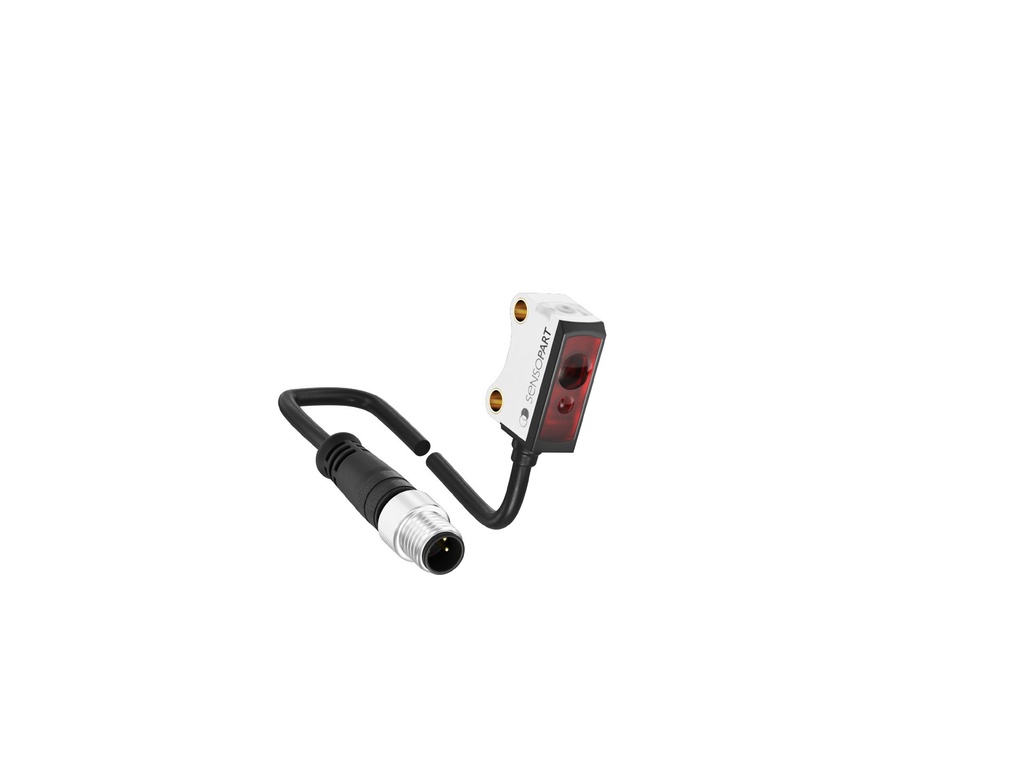

SensoPart FT 10-RH-PNSL-KM4

A photoelectric proximity sensor with background suppression — it detects an object at a defined range and reliably ignores whatever is behind it

Order code
FT 10-RH-PNSL-KM4
Order number
600-11050
SensoPart FT 10-RH-PNSL-KM4
Working distance
5
Output
PNP/NPN (auto detect)
Connection
Pigtail, plug M8, 4-wire, 200 mm
Interface
IO-Link

SensoPart FT 10-RH-PNSL-KM4 is a photoelectric proximity sensor with background suppression — it detects an object at a defined range and reliably ignores whatever is behind it, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓Adjustable background suppression up to scanning distance 70 mm
✓Static or dynamic teach-in via teach-in button and control line
✓Button lock via control input
✓N.O./N.C. switching via teach-in button and control line
✓Dovetail clamp mounting MBD F 10 supplied

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Specifications
Sensor principlePhotoelectric diffuse sensor with Background Suppression

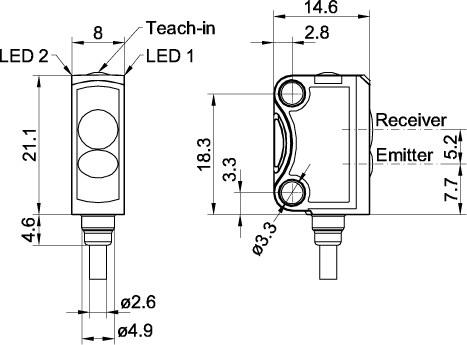

SeriesF10 (21,1 x 14,6 x 8 mm)
Working distance min. [mm]5
Working distance max. [mm]70
Velocity [Hz]1000
InterfaceIO-Link
AdjustmentTeach-in
Light sourceLED, red
Switching outputPNP/NPN (auto detect)
Temperature range [°C]-20 ... +60
Connection typePigtail, plug M8, 4-wire, 200 mm
Enclosure ratingIP 67
