SENSOPART FT 10-RF1-PNSL-K4
OFFICIAL SENSOPART PARTNER · ZTECCE · EU compliant

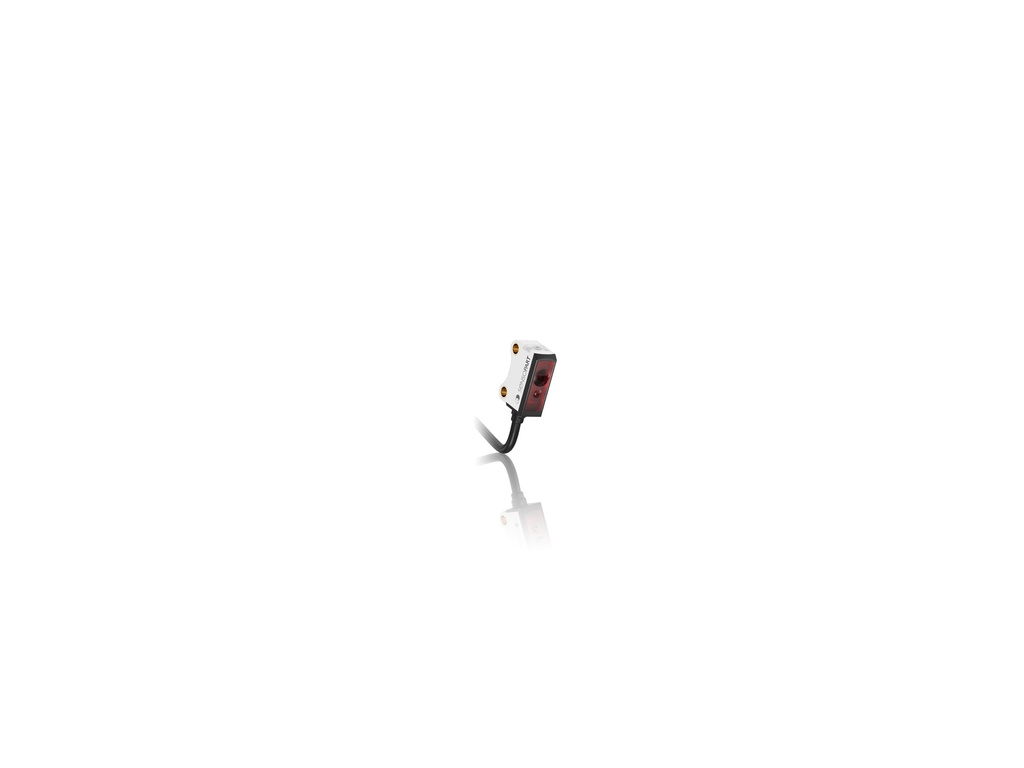

SensoPart FT 10-RF1-PNSL-K4

A photoelectric proximity sensor with background suppression — it detects an object at a defined range and reliably ignores whatever is behind it

Order code
FT 10-RF1-PNSL-K4
Order number
600-11052
SensoPart FT 10-RF1-PNSL-K4
Output
1x Auto-Detect (automatische Auswahl PNP oder NPN)
Protection
2

SensoPart FT 10-RF1-PNSL-K4 is a photoelectric proximity sensor with background suppression — it detects an object at a defined range and reliably ignores whatever is behind it, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Optical data
Light sourceLED
Light colorRed
Explanation of switching frequencyf (ti/tp 1:1)
Functions
Display, LED yellowSwitching output indicator
Display, LED greenOperating voltage indicator
Display, LED orangeOperating voltage indicator
IO-Link
Data storageYes
Communication modeCOM 2
SIO modeis supported
IO-Link specification1.1
Electrical data
Explanation of operating voltage UBmax. 10% residual ripple, within UB approx. 50 Hz / 100 Hz
Reverse polarity protectionYes
Short circuit protectionYes
Protection class2
Output functionN.O./N.C.
Switching output Q1x Auto-Detect (automatische Auswahl PNP oder NPN)
IO-LinkYes
Control input+UB = N.C. (normally closed contact) -UB / open = N.O. (normally open contact)
Explanation of switching output QAuto-Detect: automatic selection of PNP or NPN by sensor, PNP or NPN can be configured permanently
Mechanical data
Front panel materialPMMA
Housing materialPUR
Connection nameCable, 2 m, 4-wire, IO-Link
Additional specifications
Explanation working rangeReference material white, 90% remission
Setting optionsN.O. / N.C. via control input and IO-Link
Explanation of operation at ambient air temperatureUL: -20 ... +30 °C
