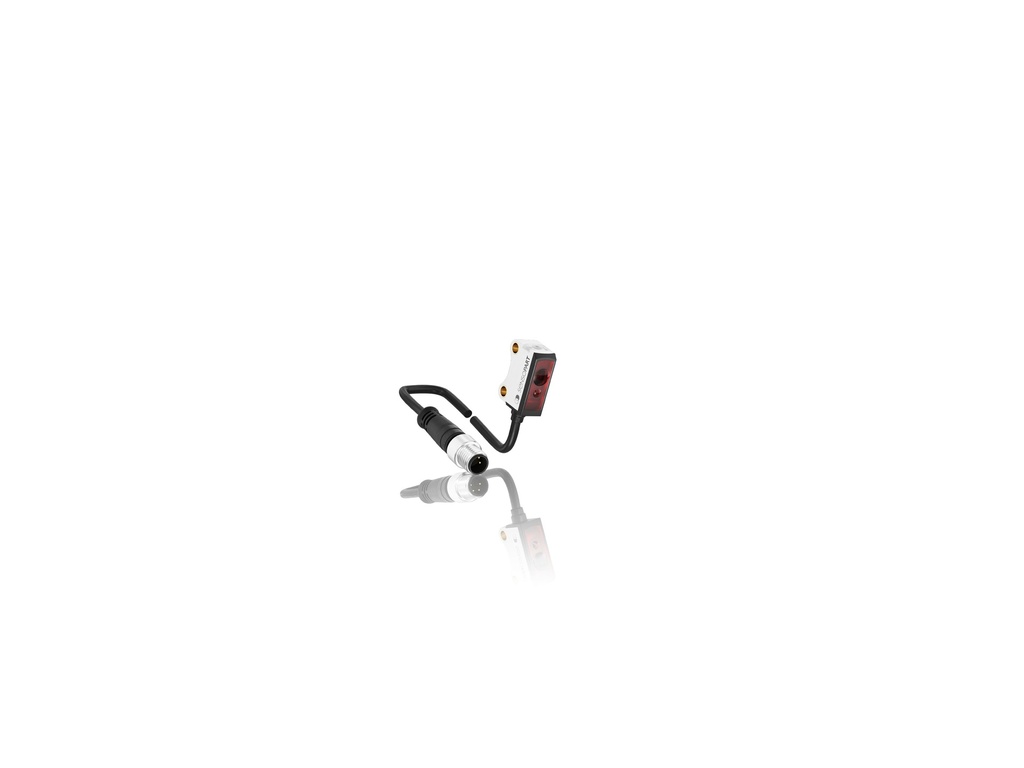

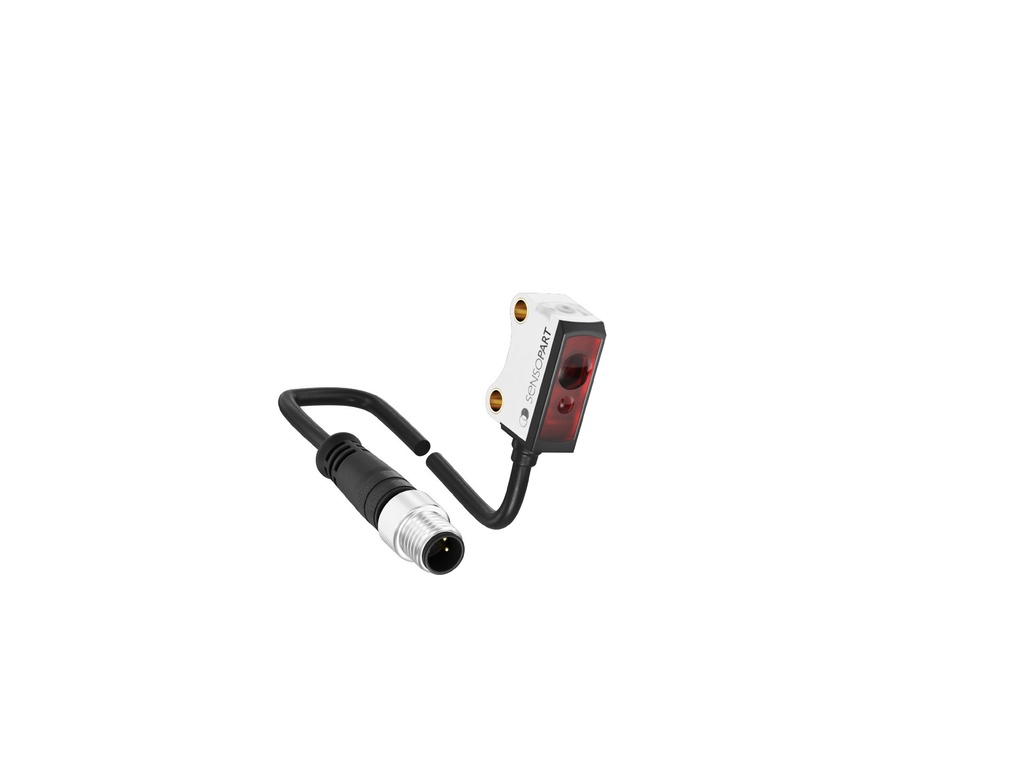

SensoPart FR 10-R-NS-KM4

A retro-reflective photoelectric sensor that detects objects across a gap using a reflector — long range with simple, one-sided mounting

Order code
FR 10-R-NS-KM4
Order number
603-11005
SensoPart FR 10-R-NS-KM4
Working distance
100
Output
NPN
Connection
Pigtail, plug M8, 4-wire, 200 mm
Protection
IP 67

SensoPart FR 10-R-NS-KM4 is a retro-reflective photoelectric sensor that detects objects across a gap using a reflector — long range with simple, one-sided mounting, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓Sub-miniature sensor for installation in the smallest of spaces
✓Despite very small sensor housing very long operating range of 1.6 m
✓Fast response time: only 500 µs
✓Static and dynamic teach-in via electronic teach-in button or control line
✓Simple mounting and adjustment through innovative dovetail clamp mounting

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Optical data
Spot size [mm]1 x 3
Working distance min. [mm]100
Working distance max. [mm]1600
Light sourceLED, red
Electrical data
Switching outputNPN
Velocity [Hz]1000
Functions
AdjustmentTeach-in
Mechanical data
Enclosure ratingIP 67

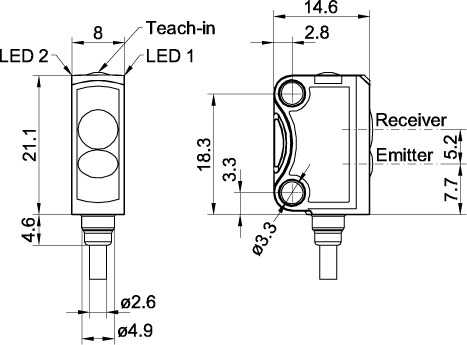

SeriesF10 (21,1 x 14,6 x 8 mm)
Temperature range [°C]-20 ... +50
Connection typePigtail, plug M8, 4-wire, 200 mm
Additional specifications
Sensor principlePhotoelectric retro-reflective sensor
