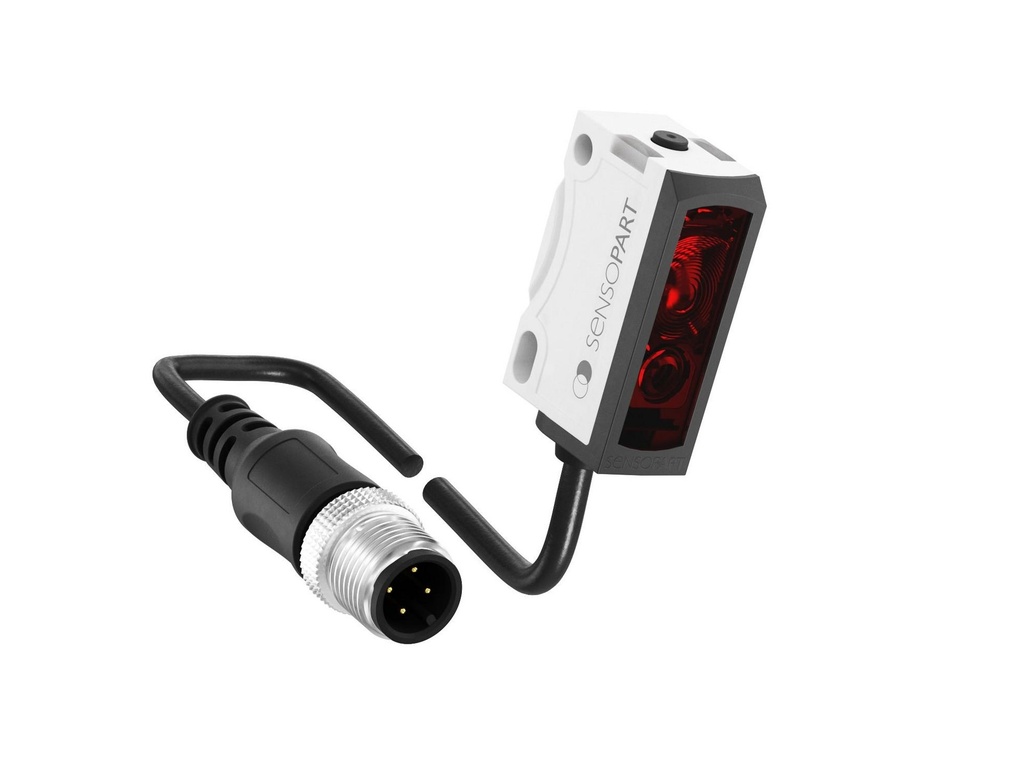

SENSOPART FT 25-RLAP-1500-PNSUL-KL4

SensoPart FT 25-RLAP-1500-PNSUL-KL4 — Distance sensor with time-of-flight measurement, 100...1500 mm, Laser (Class 1), QA, Q1, Auto-Detect/PNP/NPN, N.O./N.C., pigtai. Genuine product, supplied and supported by ZTEC.

254.99 € 254.99 €
kr 1,906.05
(Tax excluded)
Contact Us
Documents
SENSOPART FT 25-RLAP-1500-PNSUL-KL4 - CAD.zip SENSOPART FT 25-RLAP-1500-PNSUL-KL4 - Datasheet 2.pdf SENSOPART FT 25-RLAP-1500-PNSUL-KL4 - Datasheet.pdf SENSOPART FT 25-RLAP-1500-PNSUL-KL4 - IODD.zip
OFFICIAL SENSOPART PARTNER · ZTECCE · EU compliant

SensoPart FT 25-RLAP-1500-PNSUL-KL4

An optical distance sensor for accurate, non-contact distance and position measurement

Order code
FT 25-RLAP-1500-PNSUL-KL4
Order number
604-41017
SensoPart FT 25-RLAP-1500-PNSUL-KL4
Repeatability
2...7 mm; white reference material, 90% remission; at 50 Hz/10 ms; homogeneous, stationary object; see graph for typical values
Resolution
QA, 12 bit
Output
Auto-Detect/PNP/NPN
Protection
2

SensoPart FT 25-RLAP-1500-PNSUL-KL4 is an optical distance sensor for accurate, non-contact distance and position measurement, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓Reliable measured value output – Stable and precise measurement results thanks to proven time-of-flight technology
✓Flexible configuration – analogue and switching output individually adjustable, simple adjustment via teach function using button
✓Long range with compact design – object detection/distance measurement up to 1.5 m in a miniature housing (34 x 20 x 12 mm)
✓Excellent detection properties – reliable detection on almost all surfaces such as metal or colored plastic
✓Precisely adjustable background suppression
✓Easy integration and adjustment – clearly visible light spot for quick alignment and easy installation even in confined spaces
✓Reliable operation without additional protective measures – laser class 1 for safe operation

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationLogisticsPackagingMachinery
Object and presence detection
Object and presence detection
Edge and fill-level monitoring
Edge and fill-level monitoring
Counting and positioning
Counting and positioning on the line
Label and mark detection
Label and mark detection

Specifications

Specifications
Explanation of the setting rangeReference material white, 90% remission
Explanation of resolutionQA, 12 bit
Explanation of linearitySpecification ±; reference material, 5...90% remission; see graph for typical values
Explanation of repeatability2...7 mm; white reference material, 90% remission; at 50 Hz/10 ms; homogeneous, stationary object; see graph for typical values
Light sourceLaser
Laser class1 (IEC 60825-1)
Light colorRed
Explanation of switching frequencyAt 800 mm; white reference material, 90% remission
Explanation of switching hysteresis4...7 mm; white reference material, 90% remission; at 5 Hz/100 ms
Measured value refresh timeResponse time QA + averaging rate
Averaging times5 Hz/100 ms, 10 Hz/50 ms, 50 Hz/10 ms, 100 Hz/5 ms, 200 Hz/2 ms, 300 Hz/1 ms,
Connection, BKSwitching output Q/IO-Link
Connection, WHAnalogue output QA
Display, LED yellowSwitching output indicator Q
Display, LED greenOperating voltage indicator
Setting optionsMeasurement range QA Switching output Q (switching window) Parallel shifting of the analogue characteristic curve QA to a new reference level via AutoCenter N.O. / N.C. and Auto-detect / PNP / NPN Switchover averaging Q / QA via teach-in button and IO-Link Wide range of setting options for service and process data via IO-Link
Default settingsAnalogue output QA 1...10 V, 100...1500 mm Switching output Q: Switching window 100...1500 mm, N.O.
Measuring range adjustmentvia teach-in button and IO-Link
Explanation of operating voltage UBMax. 10% residual ripple, within UB, ~ 50 Hz / 100 Hz
Reverse polarity protectionYes
Short circuit protectionYes
Analog output QA1 ... 10 V / max. 3 mA
Measured value outputAnalog (voltage), IO Link
Protection class2
Output functionN.O./N.C.
Switching output QAuto-Detect/PNP/NPN
Explanation of switching output QAuto-detect: automatic selection of PNP or NPN by sensor, PNP or NPN can be configured permanently
Number of outputs2
Explanation of thermal responseReference material white, 90% remission
Data storageYes
Communication modeCOM 2
SIO modeis supported
IO-Link specification1.1
Front panel materialPMMA
Housing materialABS
Explanation of protection classwith IP 67 / IP 69 plug connected
Vibration and shock resistanceEN IEC 60947-5-2
Connection namePigtail, 150 mm with plug, M12x1, 4-pin, IO-Link
- Number of pins4
- ThreadM12x1
