SensoPart FE 25-R-PS-K4

A through-beam photoelectric sensor (emitter + receiver) for the longest ranges and reliable detection of small or fast-moving objects

Order code
FE 25-R-PS-K4
Order number
605-21001
SensoPart FE 25-R-PS-K4
Working distance
0
Output
PNP
Connection
Metal plug M8, 4-pin
Protection
IP69K

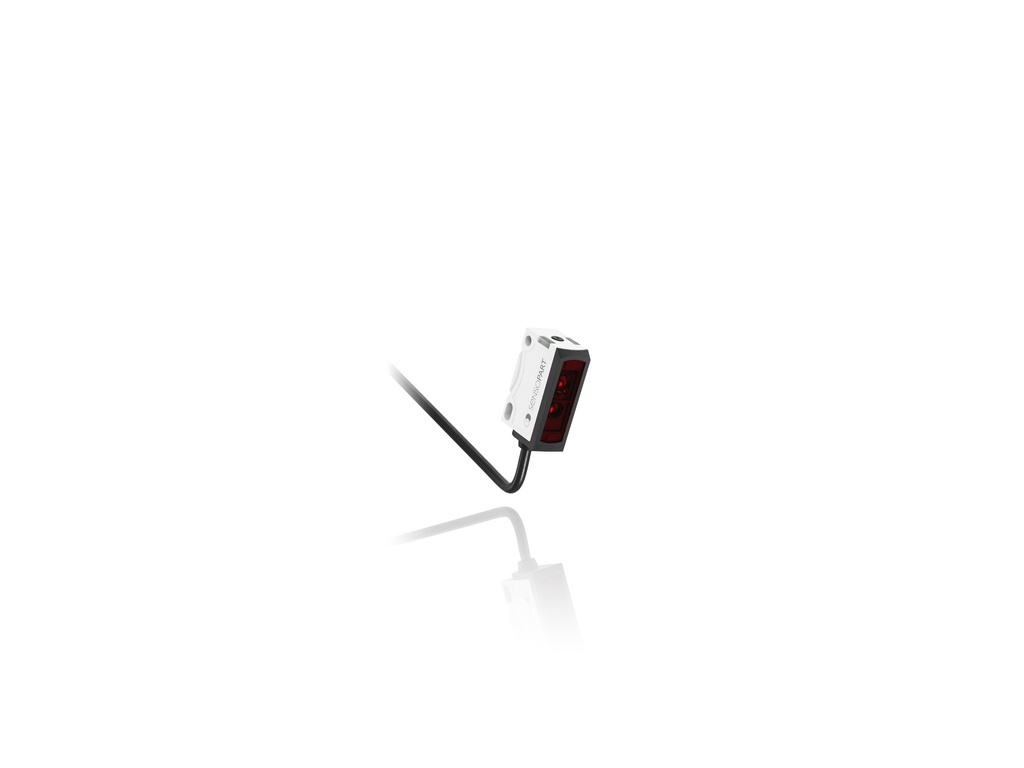

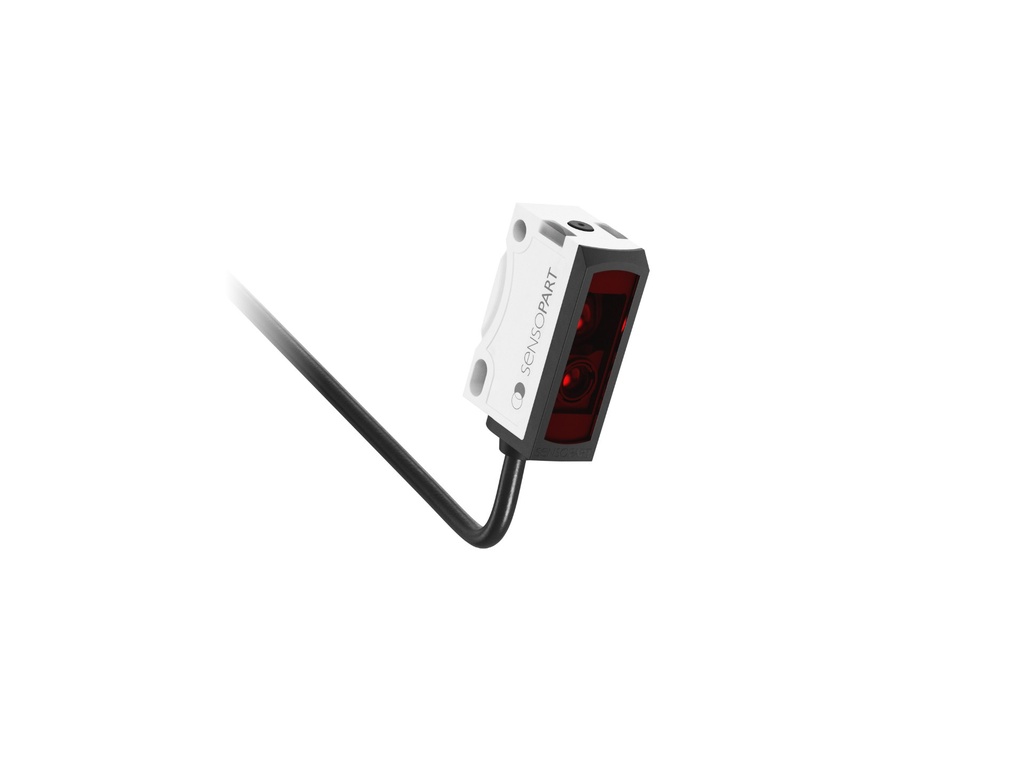

SensoPart FE 25-R-PS-K4 is a through-beam photoelectric sensor (emitter + receiver) for the longest ranges and reliable detection of small or fast-moving objects.

Key features

Test input for checking sensor pair function
Sensor settings via teach-in and control input
Simple alignment thanks to easily visible light spot
Robust glass-fibre-reinforced plastic housings
Durable laser printing

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Optical data
Working distance min. [mm]0
Working distance max. [mm]13000
Light sourceLED, red
Electrical data
Switching outputPNP
Velocity [Hz]1000
Functions
AdjustmentTeach-in
Mechanical data
Enclosure ratingIP69K

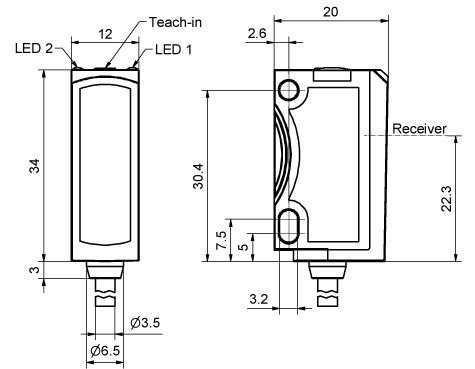

SeriesF25 (34 x 20 x 12 mm)
Temperature range [°C]-20. +60
Connection typeMetal plug M8, 4-pin
Additional specifications
Sensor principlePhotoelectric through-beam sensor
