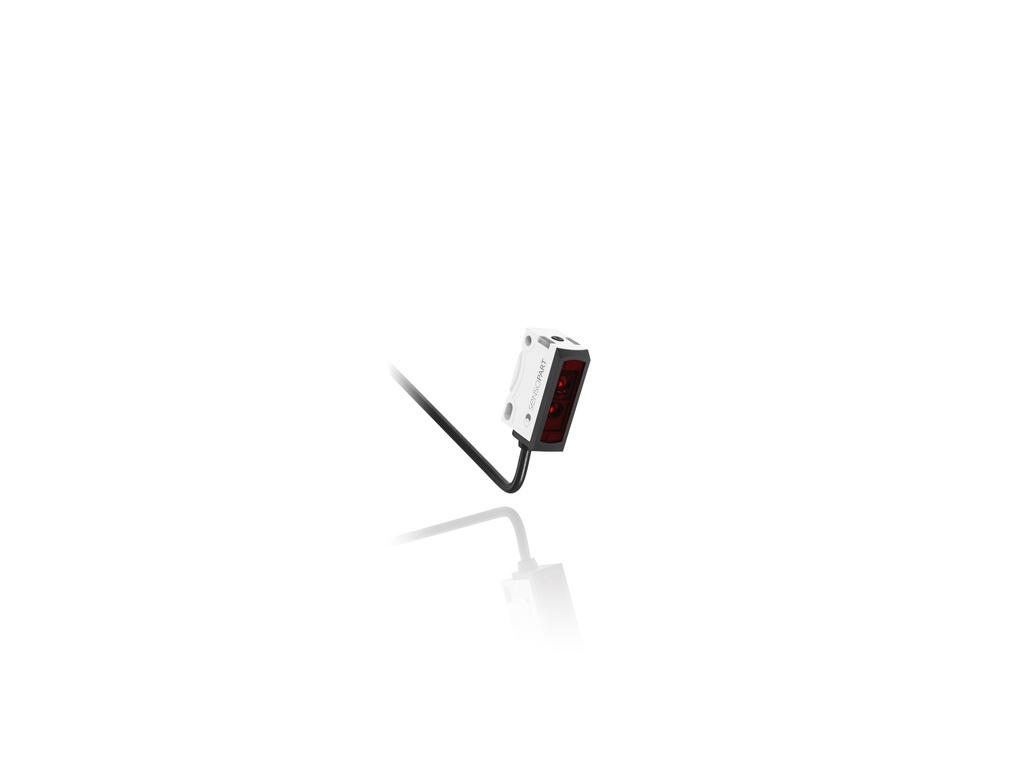

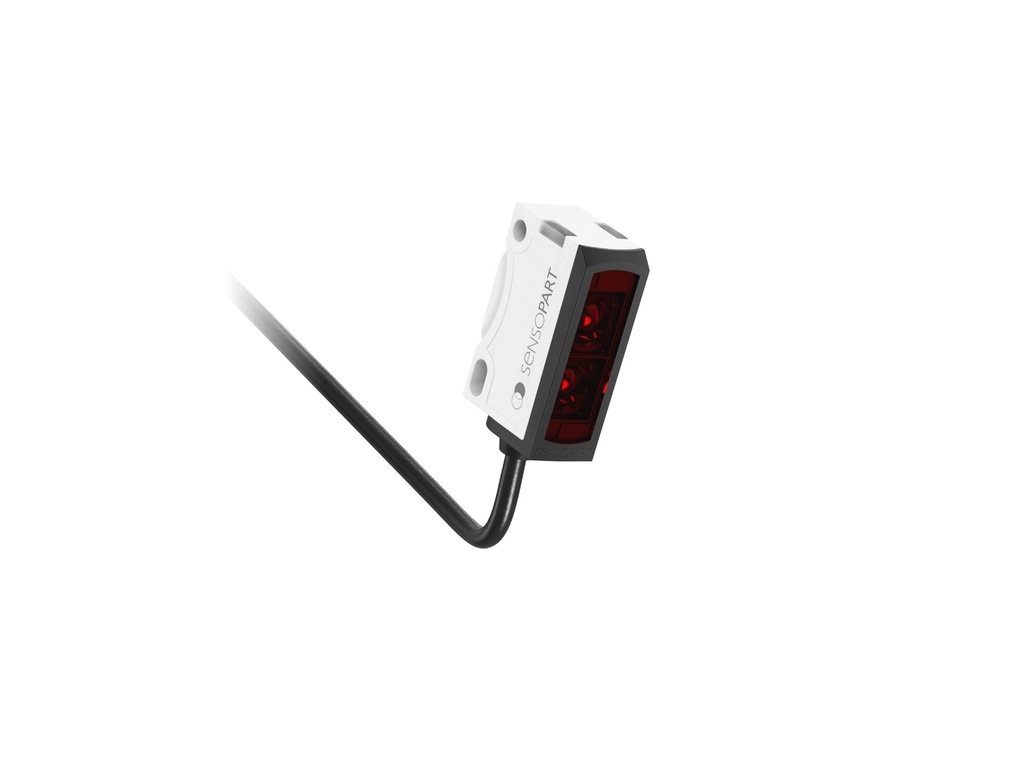

SensoPart FR 25-RF-PS-K4

A retro-reflective photoelectric sensor that detects objects across a gap using a reflector — long range with simple, one-sided mounting

Order code
FR 25-RF-PS-K4
Order number
606-11014
SensoPart FR 25-RF-PS-K4
Working distance
100
Output
PNP
Connection
Cable, 4-wire, 2 m
Protection
IP69K

SensoPart FR 25-RF-PS-K4 is a retro-reflective photoelectric sensor that detects objects across a gap using a reflector — long range with simple, one-sided mounting, supplied and supported by ZTEC as your SensoPart partner in the Nordics and Baltics.

Key features

✓Economical solution for numerous applications
✓Tamper-proof sensor design – no misalignment possible
✓Suitable for a wide variety of different reflectors
✓Simple alignment thanks to easily visible light spot
✓Robust glass-fibre-reinforced plastic housings

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Optical data
Working distance min. [mm]100
Working distance max. [mm]3000
Light sourceLED, red
Electrical data
Switching outputPNP
Velocity [Hz]1000
Functions
AdjustmentControl input
Mechanical data
Enclosure ratingIP69K

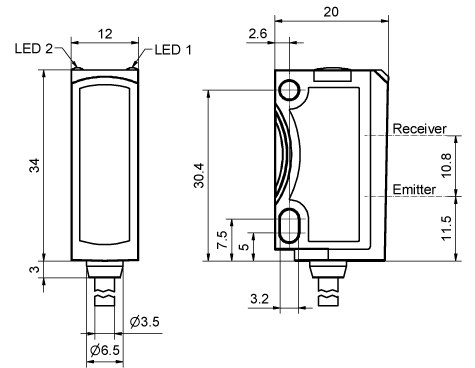

SeriesF25 (34 x 20 x 12 mm)
Temperature range [°C]-20 ... +60
Connection typeCable, 4-wire, 2 m
Additional specifications
Sensor principlePhotoelectric retro-reflective sensor
