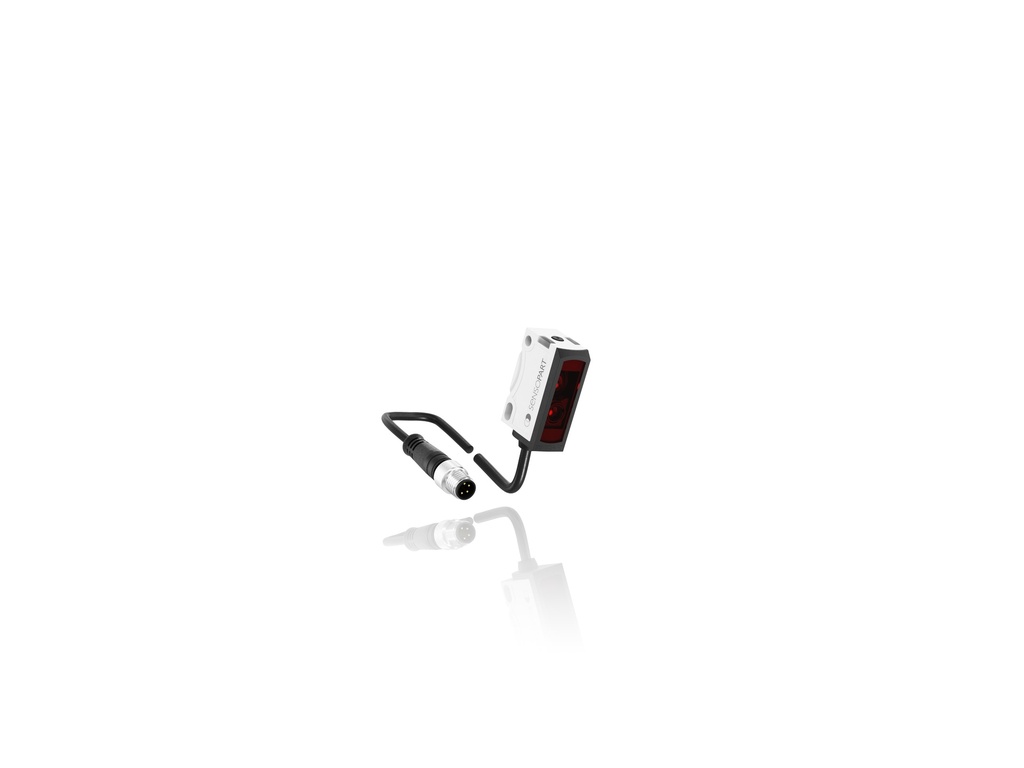

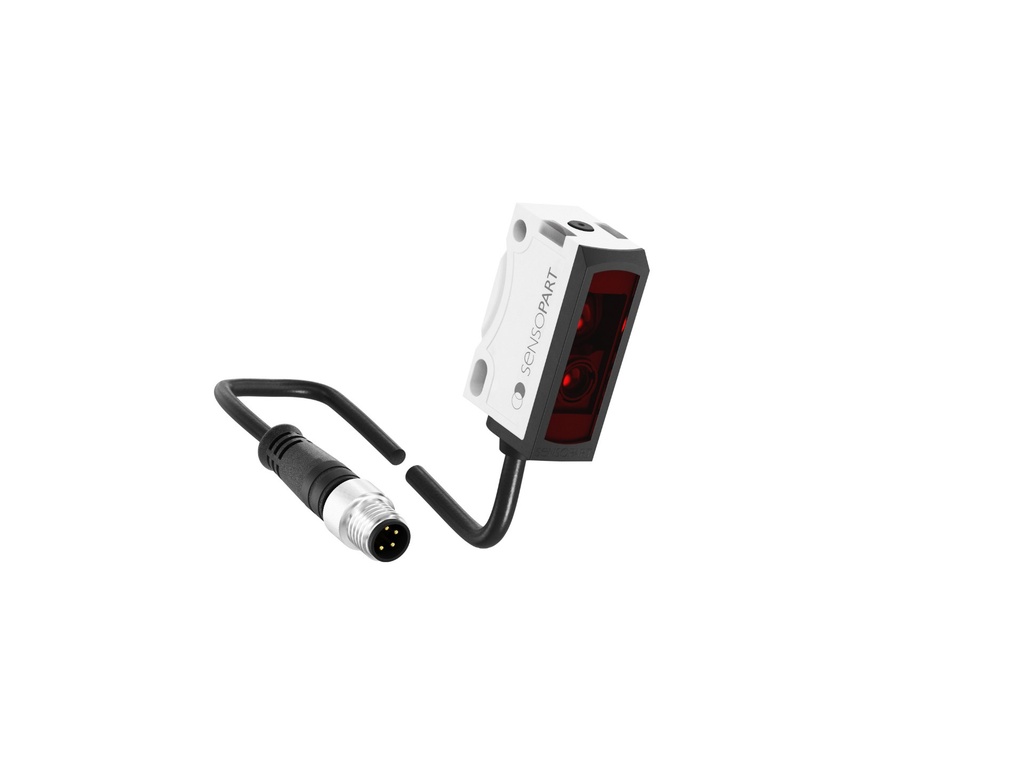

SensoPart FR 25-R-NS-KM4

A retro-reflective photoelectric sensor that detects objects across a gap using a reflector — long range with simple, one-sided mounting

Order code
FR 25-R-NS-KM4
Order number
606-11029
SensoPart FR 25-R-NS-KM4
Working distance
100
Output
PNP
Connection
Plug M8, 4-pin
Protection
IP69K

SensoPart FR 25-R-NS-KM4 is a retro-reflective photoelectric sensor that detects objects across a gap using a reflector — long range with simple, one-sided mounting.

Key features

✓Auto-detect retroreflective photoelectric sensor with real PNP and real NPN functions
✓Particularly suitable for short-range applications
✓Simple alignment thanks to easily visible light spot
✓Robust glass-fibre-reinforced plastic housings
✓Durable laser printing
✓Wide range of variants

Applications & Industries

What you can solve with this product:

Typical industries: Factory automationMachineryPackagingFood & beverage
Presence and completeness inspection
Presence and completeness inspection
Measurement and positioning
Measurement and positioning
Surface and print/label inspection
Surface and print/label inspection
Robot guidance and pick-and-place
Robot guidance and pick-and-place

Specifications

Optical data
Working distance min. [mm]100
Working distance max. [mm]6000
Light sourceLED, red
Electrical data
Switching outputPNP
Velocity [Hz]1000
Functions
AdjustmentTeach-in
Mechanical data
Enclosure ratingIP69K

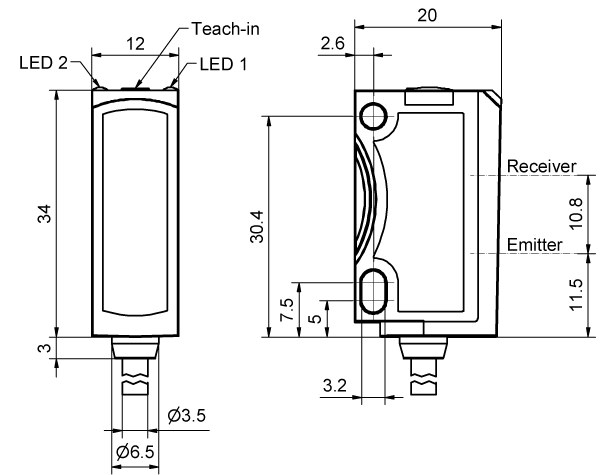

SeriesF25 (34 x 20 x 12 mm)
Temperature range [°C]-20. +60
Connection typePlug M8, 4-pin
Additional specifications
Sensor principlePhotoelectric retro-reflective sensor
